Some text unexpectedly turned into images by the PDF Extract API

Forum|Forum|4 years ago
December 27, 2021
2 replies
746 views

Hi,

I've been using the PDF Extarct API to display the content of a PDF as an HTML file, so far it's working well, but I'm seeing a couple of odd cases that you might be interested in. The following happens in a pdf that has sets of fill-in-the-blank questions.

For the folllwing text from the PDF:

SELECT c.name 'Channel',
COUNT(i.dataid) 'Count of Items'
FROM __________ i, __________ c
WHERE i.parentid = c.___________
AND i.____________ = 208
GROUP BY c.name, i._____________ ORDER BY COUNT(i.___________) DESC

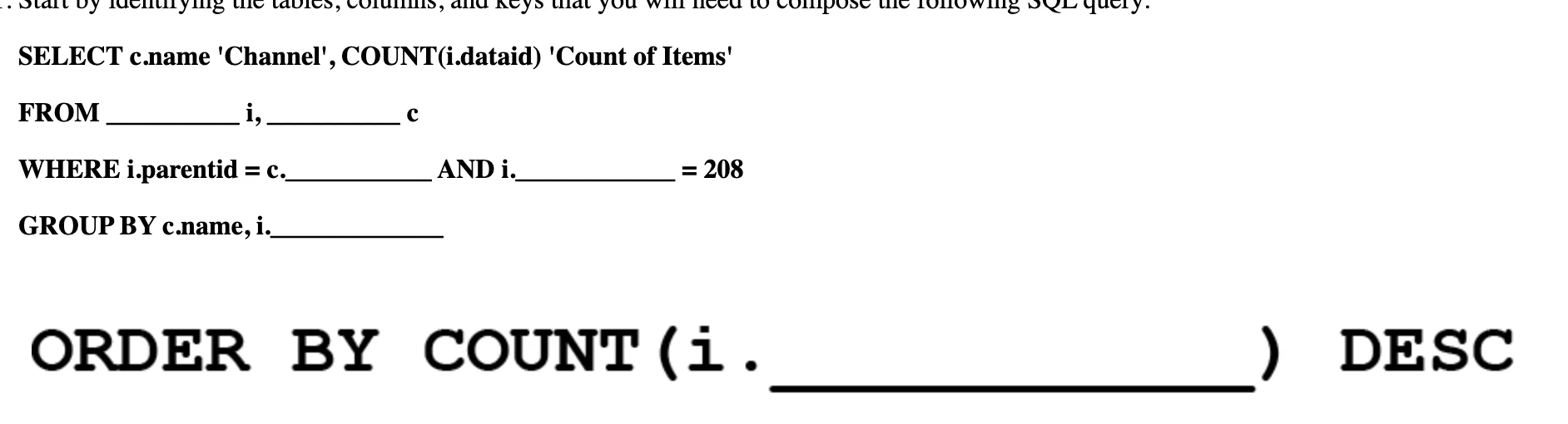

The last line is extracted as an image instead of text, see below

PDF Extract API

This topic has been closed for replies.

Joel Geraci

Community Expert

Can you share the actual PDF. I'd like to use it to train our AI.

G

Garth22367887bhaeAuthor

Participant

Sorry, It's a client document that I can't share.

G

Garth22367887bhaeAuthor

Participant

Here is the json that gets generated:

    {
      "Bounds": [
        231.8408966064453,
        331.61090087890625,
        435.8748016357422,
        364.3813934326172
      ],
      "Font": {
        "alt_family_name": "Courier New",
        "embedded": true,
        "encoding": "Identity-H",
        "family_name": "Courier New",
        "font_type": "CIDFontType2",
        "italic": false,
        "monospaced": false,
        "name": "EDGRTV+CourierNew,Bold",
        "subset": true,
        "weight": 700
      },
      "HasClip": false,
      "Lang": "en",
      "Page": 24,
      "Path": "//Document/L[17]/LI/LBody/P[3]",
      "Text": "WHERE i.parentid = c.___________ AND i.____________ = 208 ",
      "TextSize": 10.5,
      "attributes": {
        "LineHeight": 12.5
      }
    },
    {
      "Bounds": [
        231.8199005126953,
        319.11590576171875,
        435.860107421875,
        339.3914031982422
      ],
      "Font": {
        "alt_family_name": "Courier New",
        "embedded": true,
        "encoding": "Identity-H",
        "family_name": "Courier New",
        "font_type": "CIDFontType2",
        "italic": false,
        "monospaced": false,
        "name": "EDGRTV+CourierNew,Bold",
        "subset": true,
        "weight": 700
      },
      "HasClip": false,
      "Lang": "en",
      "Page": 24,
      "Path": "//Document/L[17]/LI/LBody/P[4]",
      "Text": "GROUP BY c.name, i._____________ ",
      "TextSize": 10.5,
      "attributes": {
        "LineHeight": 12.625,
        "SpaceAfter": 6.625
      }
    },
    {
      "Bounds": [
        231.8199005126953,
        306.6208953857422,
        448.57875061035156,
        326.8963928222656
      ],
      "Page": 24,
      "Path": "//Document/L[17]/LI/LBody/Figure",
      "attributes": {
        "BBox": [
          231.8309999999983,
          311.41999999999825,
          445.9019999999873,
          322.2189999999973
        ],
        "Placement": "Block"
      },
      "filePaths": [
        "figures/fileoutpart45.png"
      ]
    },

G

Garth22367887bhaeAuthor

Participant

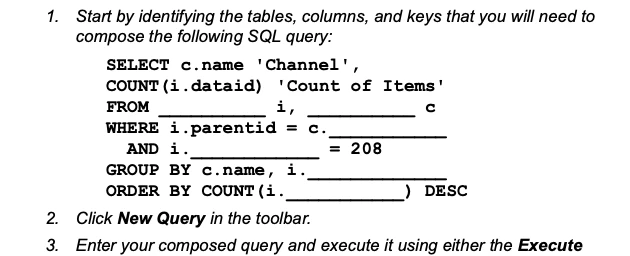

And here is a screenshot of what it looks like in the PDF:
