Bypassing the 8K Resolution Limit to Generate Seamless 32K Textures

Bypassing the 8K Resolution Limit to Generate Seamless 32K Textures

Industrial engraving and mold texturing applications require significantly larger, more detailed pattern repeats than the standard 8K files supported by Adobe Substance Designer. Achieving a full 32K (32,768 pixel) output is possible using the proposed automated workflow.

The core approach relies on bypassing the UI limits by evaluating the design in quadrants before writing the final composite:

1. Quadrant Evaluation via Pixel Processor:

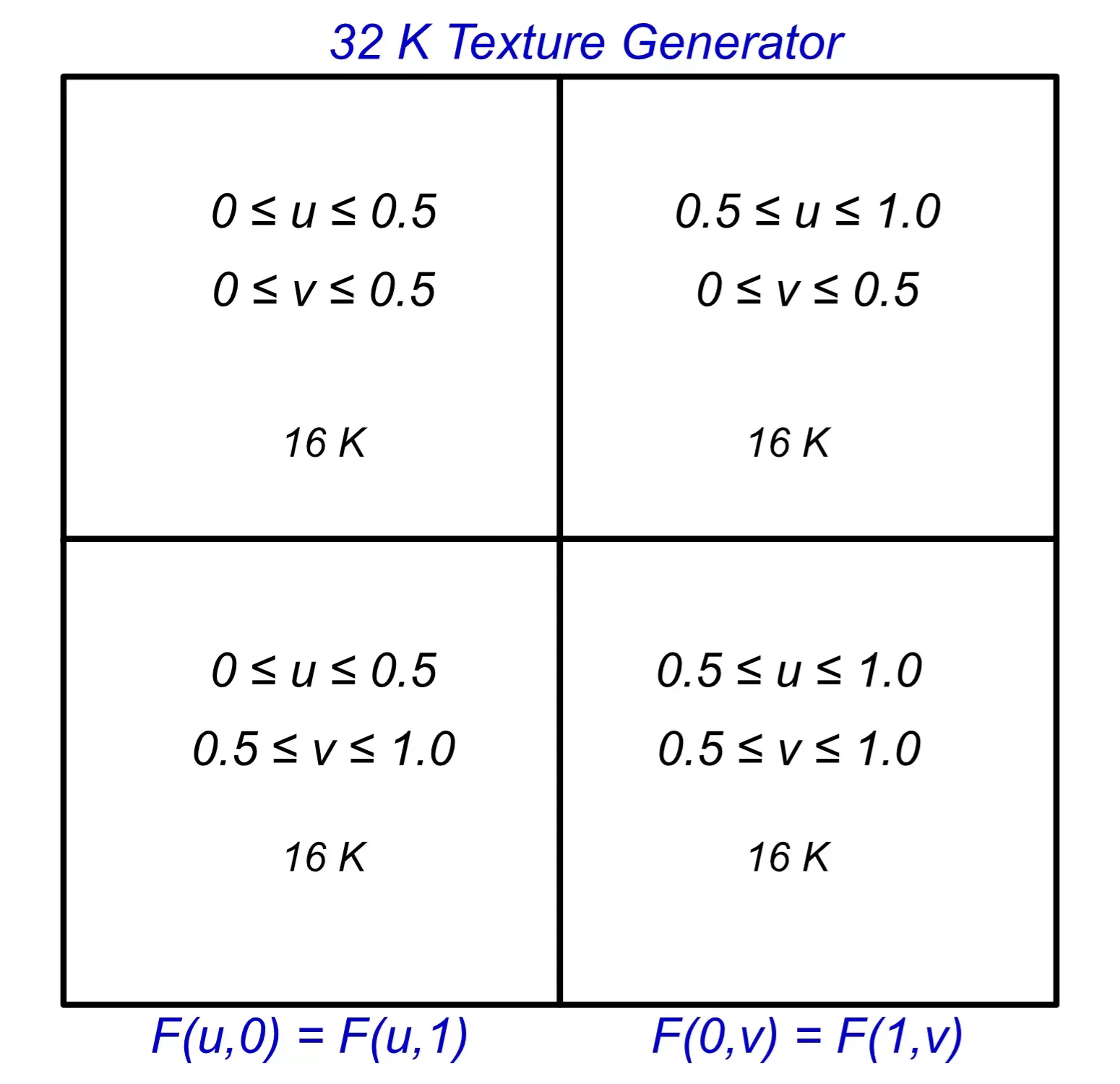

   A specialized Pixel Processor node is utilized to map the global u,v coordinate space, mathematically evaluating the primary design graph across four distinct 16K quadrants as shown in the above diagram. Given the boundary condition that the Pattern Function is equivalent at all outer boundaries, the join lines render as mathematically perfect.

2. Automated Assembly via sbsrender.exe:

   Instead of struggling with UI resolution limits to commit the data, the final assembly and file generation are offloaded to sbsrender.exe via automated batch files. The command-line engine handles the multi-quadrant structure beautifully, rendering and writing the massive 32K matrix with immense speed and stability.

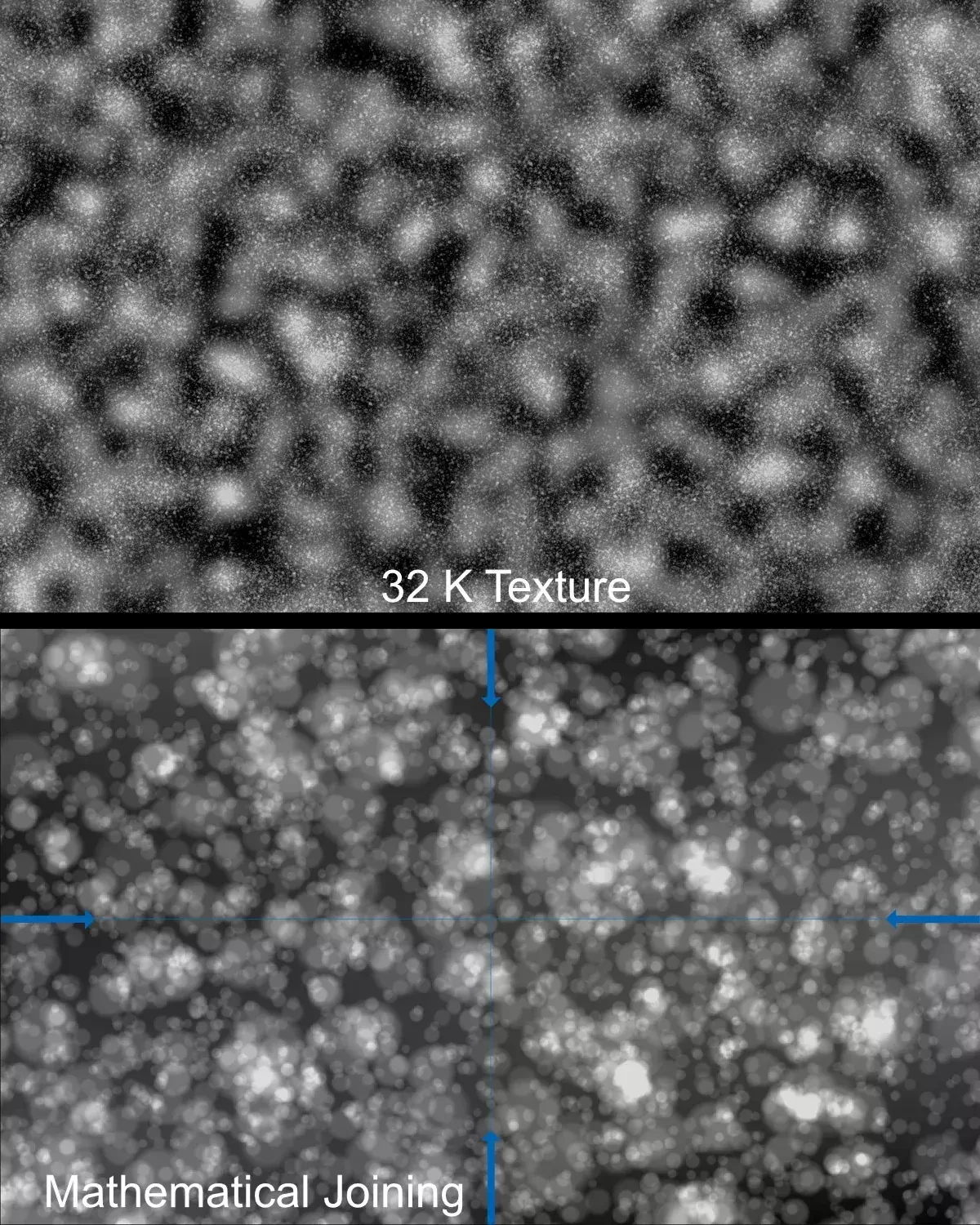

Because the underlying procedural architecture maintains rigid boundary continuity, the final 32K output maps line up mathematically perfectly, reducing re-touching labor while improving quality.

The full batch scripts, command-line syntax, and detailed Pixel Processor graph layouts are documented here:

🔗 https://www.cmdigitex.com/32ktexturegenerator
