Exposed float 2 (X,Y) not shown in other software (Vstitcher)

Forum|Forum|1 year ago
August 6, 2024
1 reply
400 views

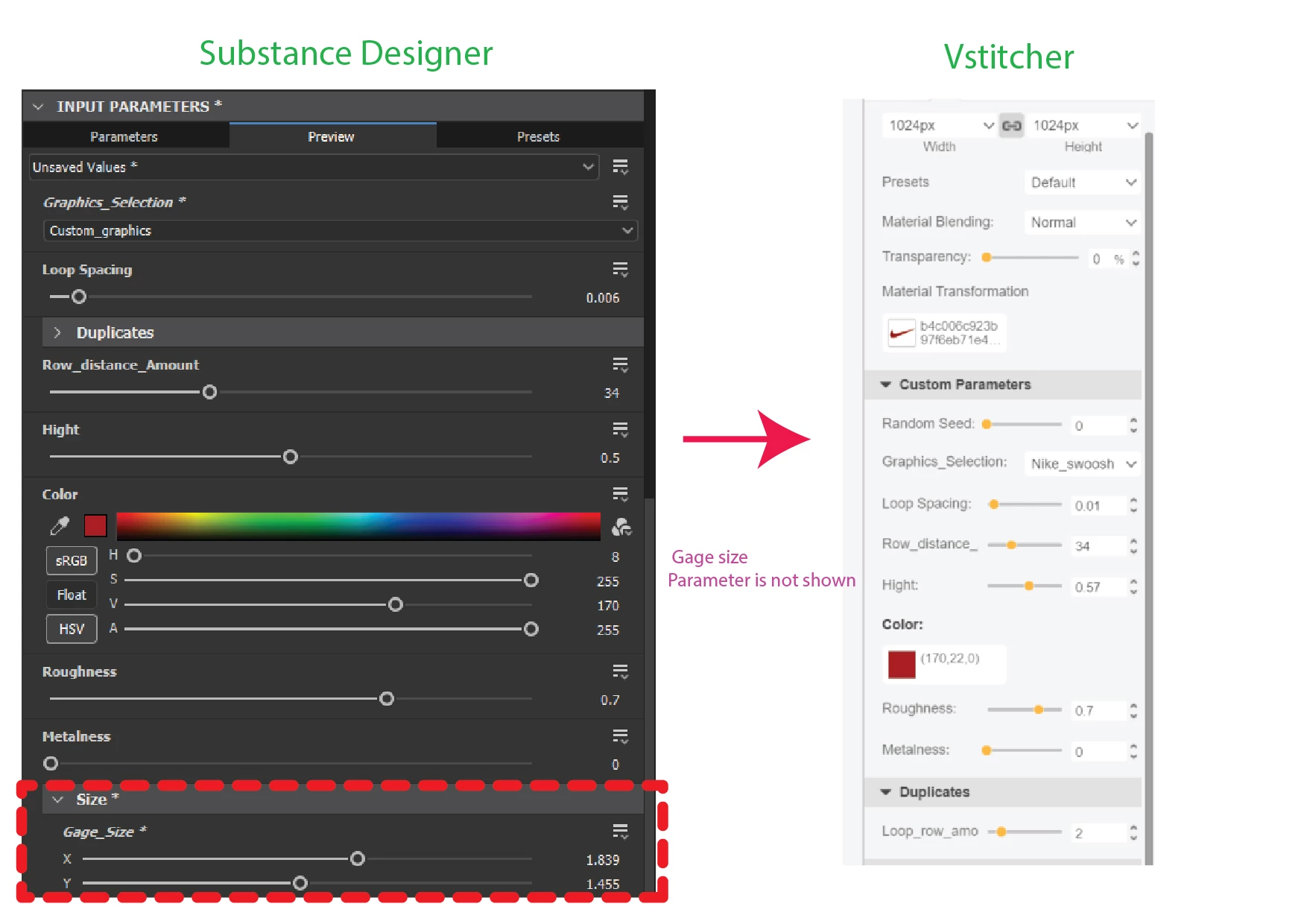

I am having an issue with exposing one of my parameters from S.Designer to Browzwear, Vstitcher.

the parameter is Float 02 X,Y. with ther parameters i dont have this problem.

What should i do to fix it?

thank you very much.

Mark

This topic has been closed for replies.

Luca Giarrizzo

Community Manager

Hello,

Thank you for reaching out! It is possible this parameter controls a static parameter (directly or indirectly). You can learn more about this limitation here

If this does not apply to your case, I need more context for assessing the issue. If you can, share the SBS file in a direct message. It will not be disclosed publicly.

Alternatively, please provide more details about this parameter and how it is used in the graph.

Best regards.

Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe

M

MarkG2014Author

Participating Frequently

Hi Luca,

thank you so much for your answer, ill be happy to send you the file.

the parameter which im trying to expose and control out side of substance designer is located inside "Scatter on Spline Grayscale" node. i have a shape that i built with two nodes of "Spline (Poly Quadratic)" which combined with "scatter on spline grayscale" and continued as pattern input in another "scatter on spline grayscale". so im trying to expose in the size group the size (X,Y) parameter. hope it make any sense for you. the goal is to be able to control the shape taht runs on the spline.

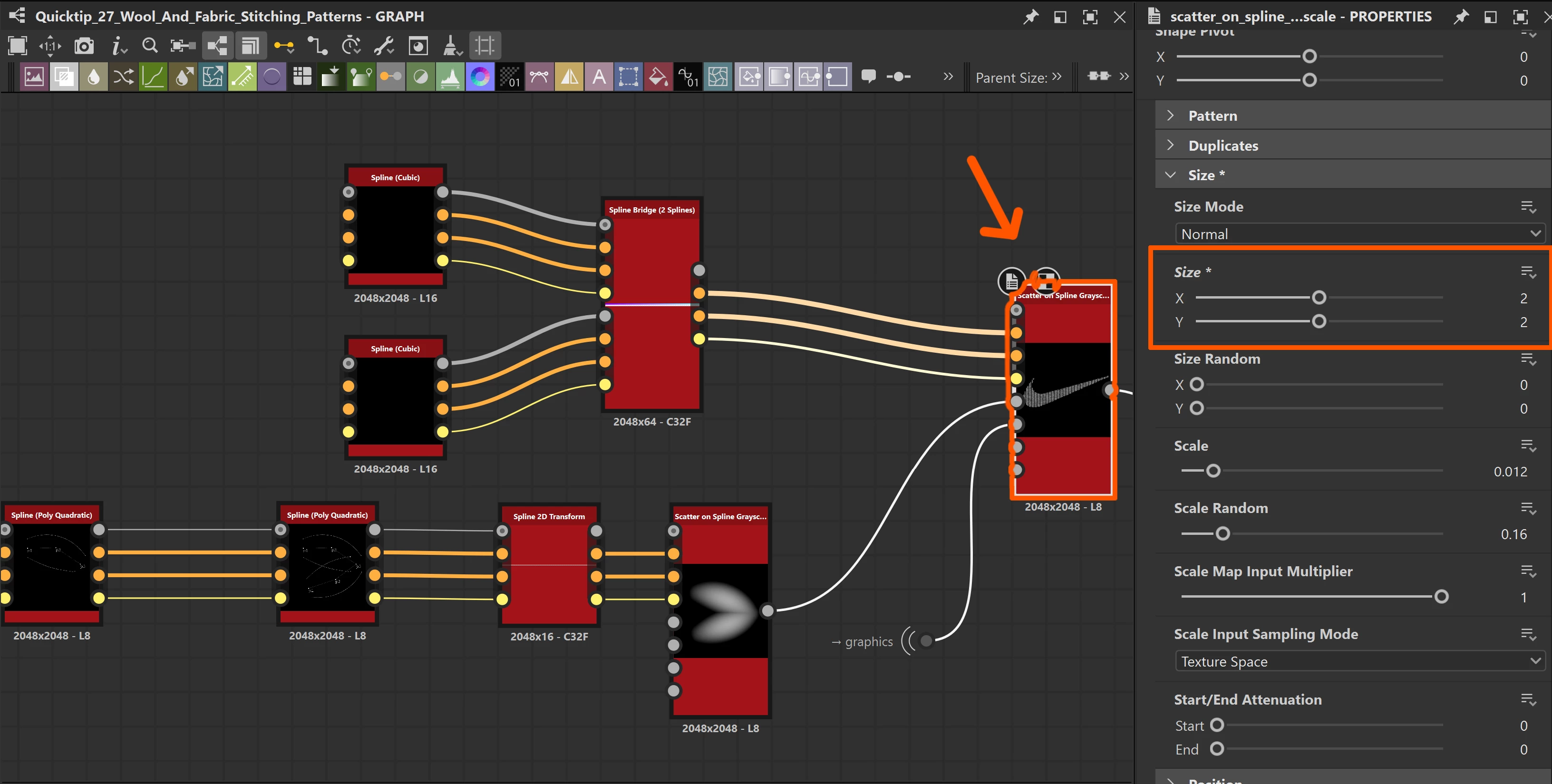

Please see screenshot ive attached.

ill send you also the SBS file.

Kind regards,

Mark goldenberg
