Exposed Perameters option is missing.

  • October 16, 2022
  • 1 reply
  • 2285 views

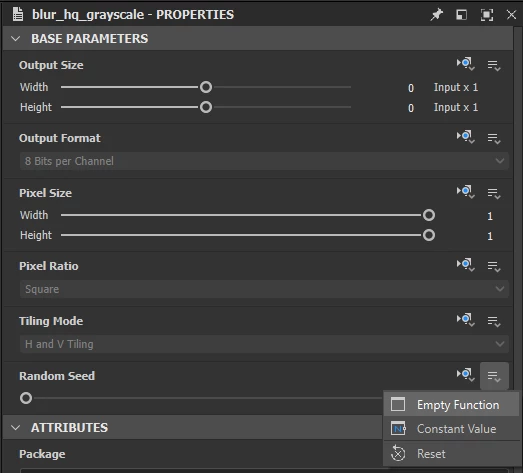

I have selected a node on my subgraph and would like to expose the perameter "seed", but the option to expose the perameter is not visible. This appears to be true for every input other than this one as well. What can I do to expose the perameter?



This topic has been closed for replies.
Correct answer davescm

The Random Seed is usually set to inherit from the parent or input and will appear in the material parameters when used in Substance Painter without exposing it.



However if you want to control a particular node separately, add an input parameter to the graph - I've made the identifier in mine 'node_random_seed'.

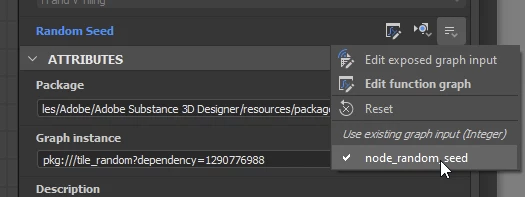

Then in your node you can set the random seed to use existing graph input node_random_seed. It will though still be subject to changes in both the material graph random seed and the individual random seed, but is of use in ensuring that say different instances of the same node use different random seeds.

Dave





1 reply

davescm
Community Expert
davescmCommunity ExpertCorrect answer
Community Expert
October 16, 2022

The Random Seed is usually set to inherit from the parent or input and will appear in the material parameters when used in Substance Painter without exposing it.



However if you want to control a particular node separately, add an input parameter to the graph - I've made the identifier in mine 'node_random_seed'.

Then in your node you can set the random seed to use existing graph input node_random_seed. It will though still be subject to changes in both the material graph random seed and the individual random seed, but is of use in ensuring that say different instances of the same node use different random seeds.

Dave





Participant
July 5, 2023

Hi Dave! Where can I find the node random seed?

davescm
Community Expert
Community Expert
July 5, 2023

Hi,

It is not a separate node. It is just a label, and identifier, I put on a new graph input parameter. I could have called it 'xyz' and it would have done the same thing but I like to use meaningful labels so that I can remember later what they are for.

Dave
