Gaudi broken-tiles mosaic?

  • September 22, 2022
  • 2 replies
  • 631 views

Hi guys!



Do you have some other suggestion to create the base geometry for this “Gaudi Mosaic”?



If you look at reference photograph, it’s a bunch of broken tiles. And resulting pieces are mainly triangles and irregular quads (forget the circles).

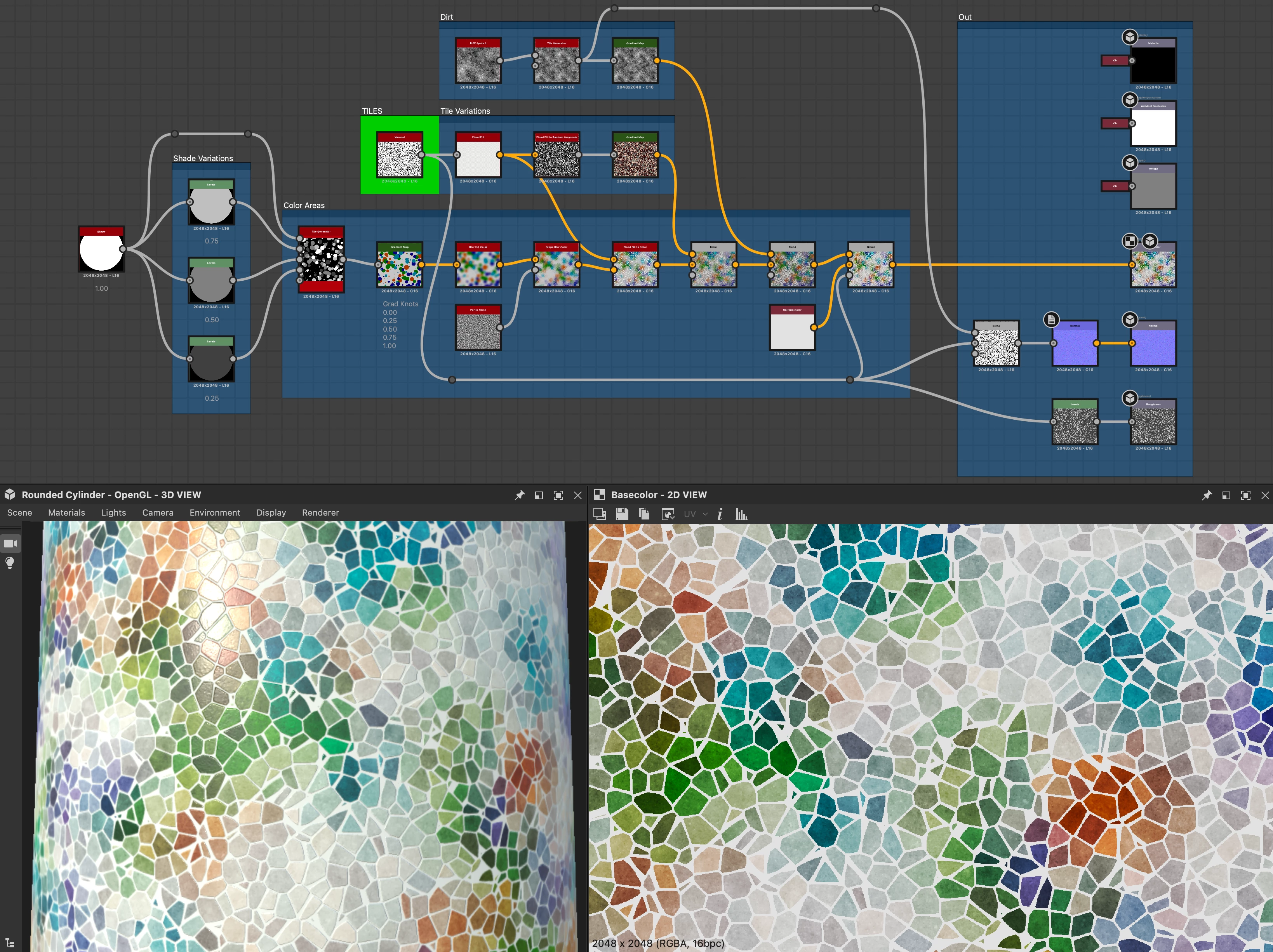

In my WIP setup I use a VORONOI starting node. And it gives me a nice mosaic…but it’s not exactly like the Gaudi example. Voronoi tiles tend more to irregular penta/hexa pieces and very few tris/quads.



Do you have some idea to better approximate to the original Gaudi tiling shapes?



(Of course, is mandatory that pieces does NOT overlap, for that reason I don’t use a Tile Generator as starting point)



Thanks!

This topic has been closed for replies.

2 replies

davescm
Community Expert
davescmCommunity Expert
Community Expert
September 24, 2022

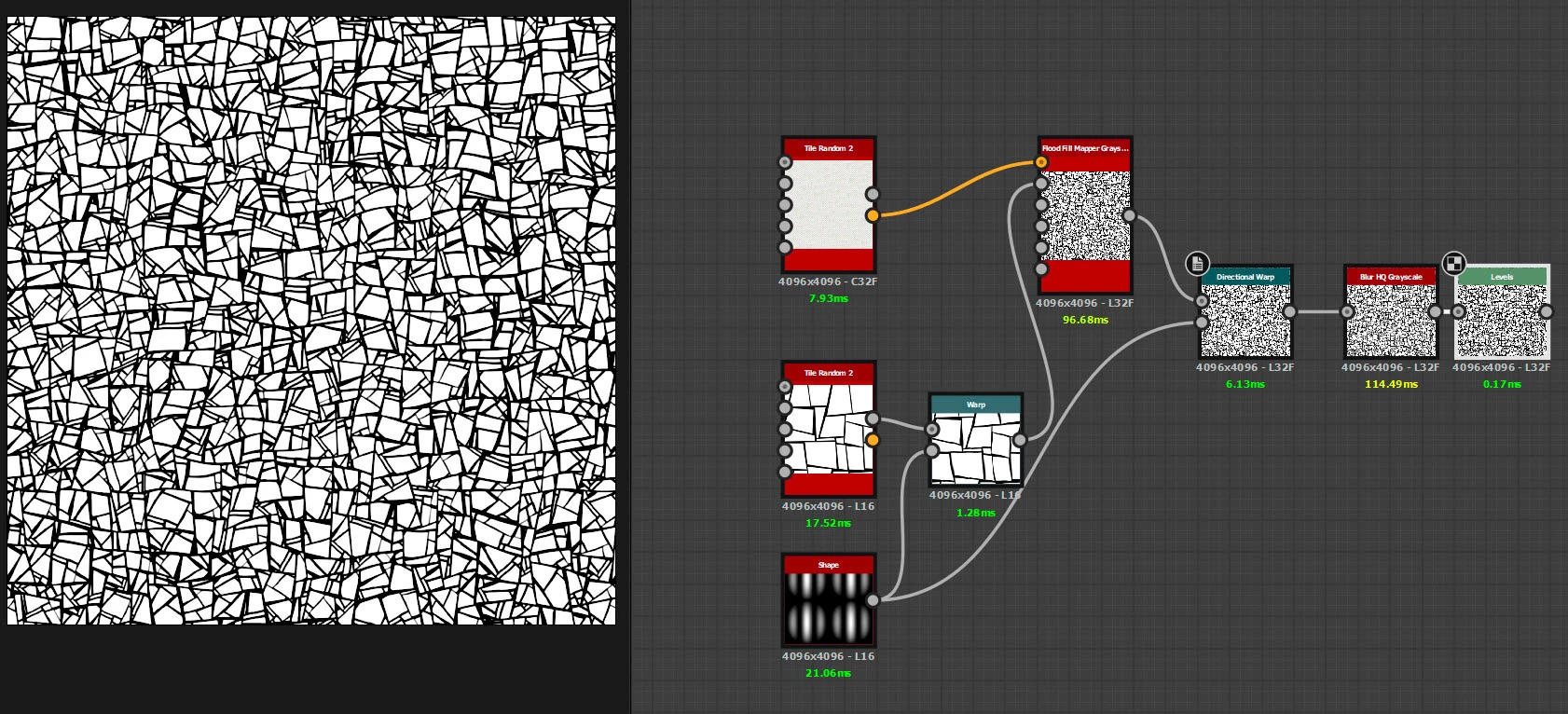

I had a think about this and perhaps cascading 'Tile Random 2' nodes may give a better effect for your purpose



Dave

Cristóbal Vila
Cristóbal VilaAuthor
Known Participant
September 26, 2022

Hmmm, thank you so much for sharing that alternative, Dave.

It's an interesting approach, and it creates a very interesting patter (very different from Voronoi)

I will study it to see if I can addequate to my needs.
In any case, I finally created this pattern with Illustrator (manually) and then exported as PNG.

It's the file included in the scene where I suffered those issues, the one you also helped!

But if I manage to create something procedural, with you great help, it would be fantastic.
Time to study and I+D 🙂

Best regards

davescm
Community Expert
davescmCommunity Expert
Community Expert
September 22, 2022

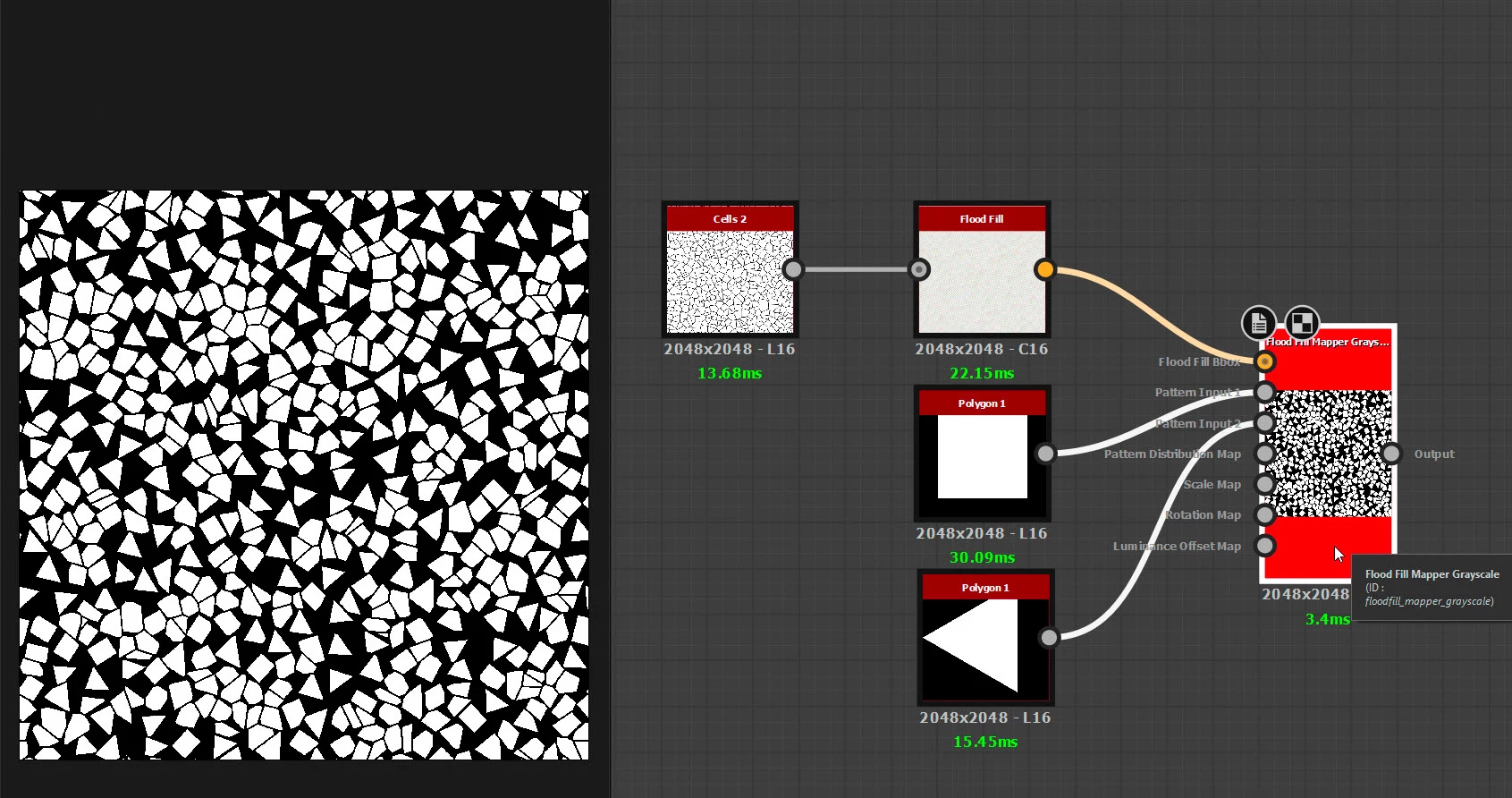

Perhaps something like this?



Dave

    Cristóbal Vila
    Cristóbal VilaAuthor
    Known Participant
    September 22, 2022

    It’s an interesting approach, Dave! BIG THANKS!



    But if you look closely to original Gaudi picture, tiles are much more near one to other. The boundaries are more “lines” and not wide black areas (caution: there are white tiles that could confuse you because boundaries are also white)



    In your setup there is not overlap and we can force it to show more tris and quads, yes. But areas between tiles are too large, too much “black”. Not perceived as “frontier-lines” in fact…
