how to get this kind of gradient?

Hi guys,

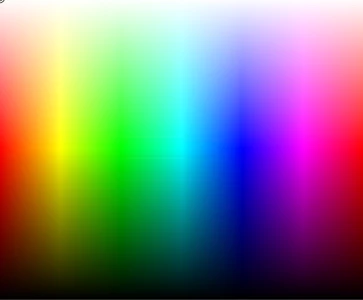

I wonder if any of you know how to get this kind of RGB gradient inside substance designer.
thank you

Max

This topic is closed to new replies. Start a new post to keep the conversation going.

Ralph5C3ACorrect answer

Participant

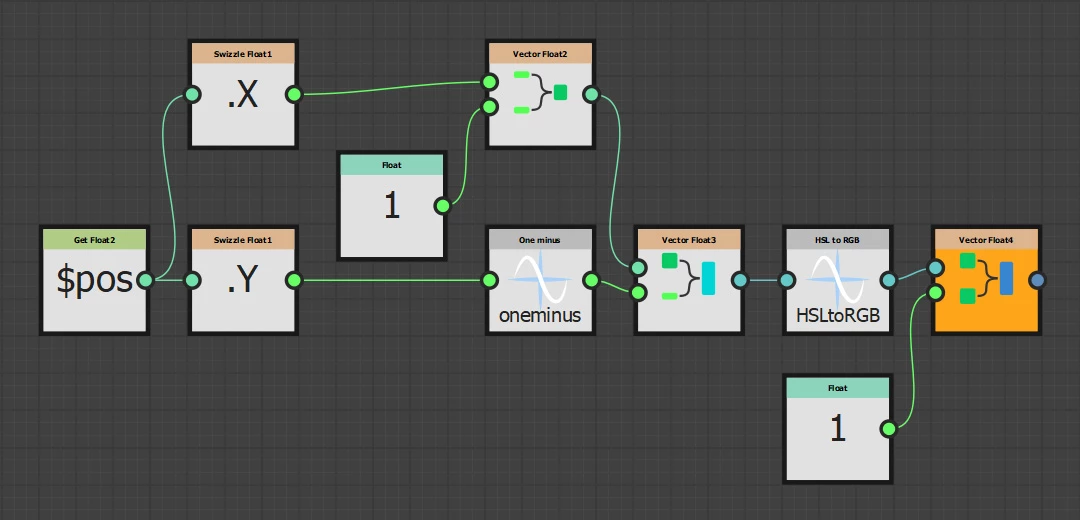

Alternatively, the Pixel Processor can give you a more accurate result:

Community Manager

Thanks for the question.

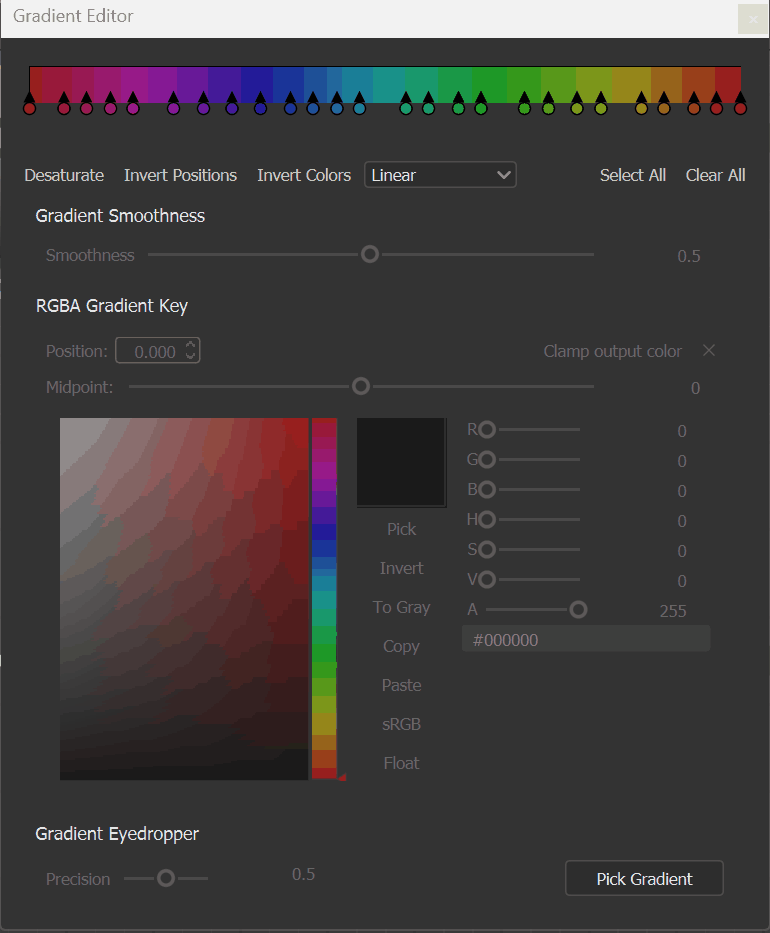

When using the Gradient Map node, you can select all the RGB spectrum with one simple technique,

And if you want to add the Luminosity, you'll have to blend a second dimension, so a second gradient.

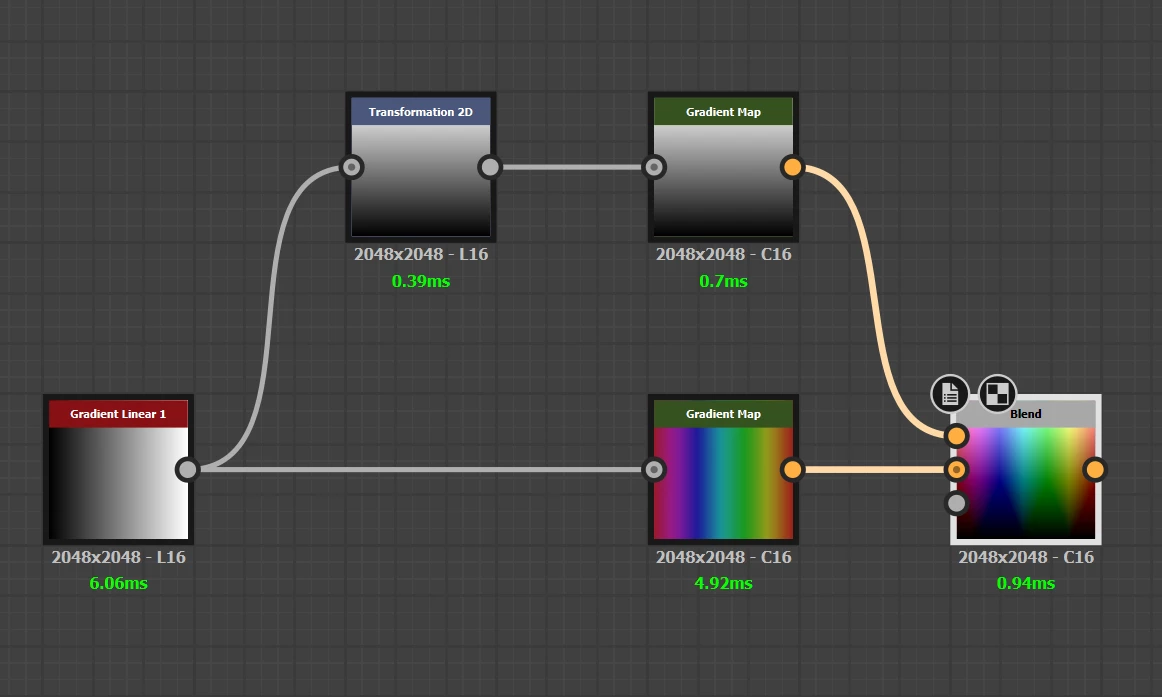

You'll find attached to this message the graph used as example.

Best regards,

Translate

Cyril Dellenbach (Micro) | Product Manager | Substance Painter

Participating Frequently

thank you for the reply,

I was hoping for something more mathematically accurate, but I guess this will work,

Translate

Asset Maker

Ralph5C3ACorrect answer

Participant

Alternatively, the Pixel Processor can give you a more accurate result:
