how to make the basic pattern in Substance Desinger?

  • December 10, 2021
  • 1 reply
  • 517 views

I have learned Daniel Thiger's lessons recently,but I still couldn't create this pattern in SD.It is really blowing my mind.especially how to make the warping edge.Anybody can give me some idea to figure out this problem?

This topic has been closed for replies.
Correct answer davescm

Hi

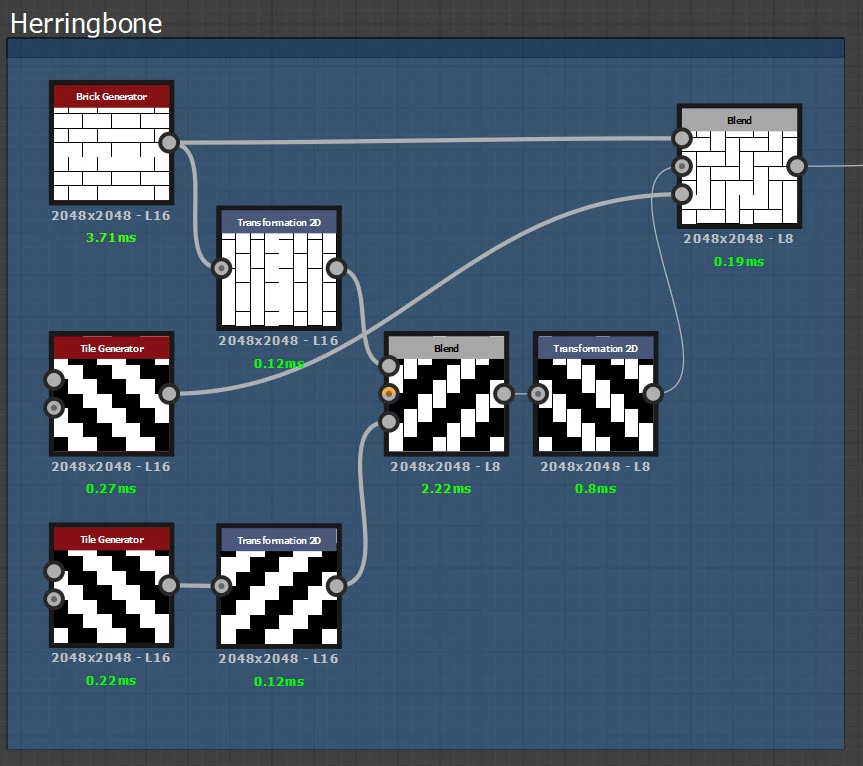

First make the herringbone using a brick generator and tile generator (as a mask) I used a ratio of 4:8 for the brick and tile:

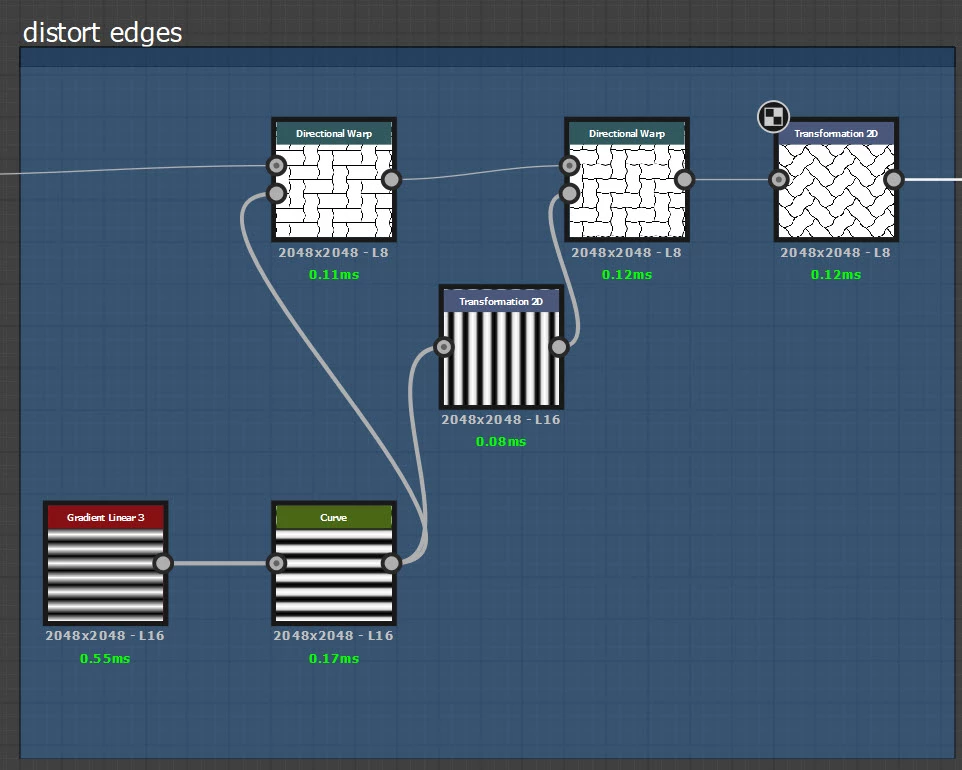

Then distort it horizontally then vertically using Directional Warp driven by a gradient with a tile set to 8 (to match the brick pattern above)

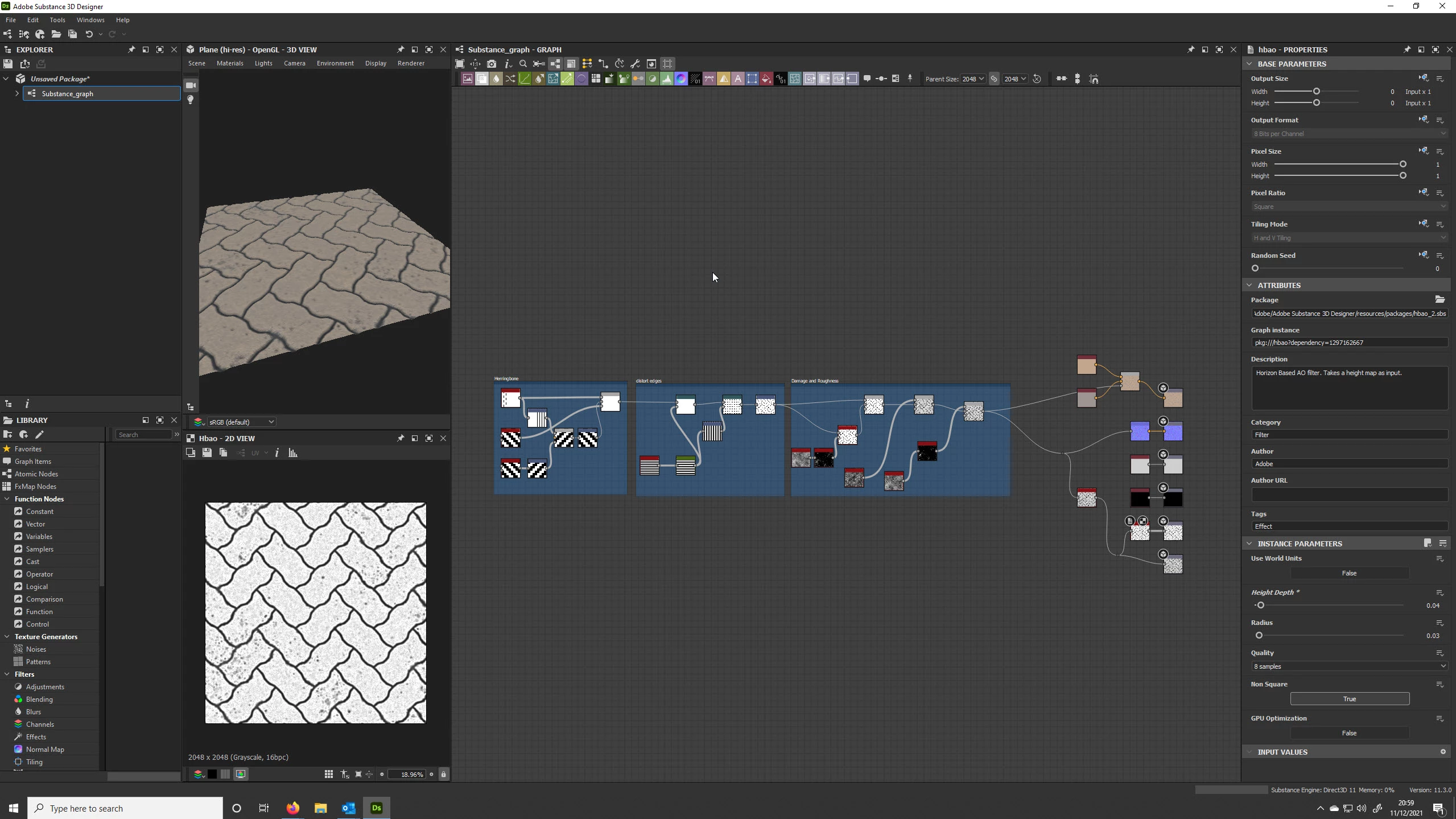

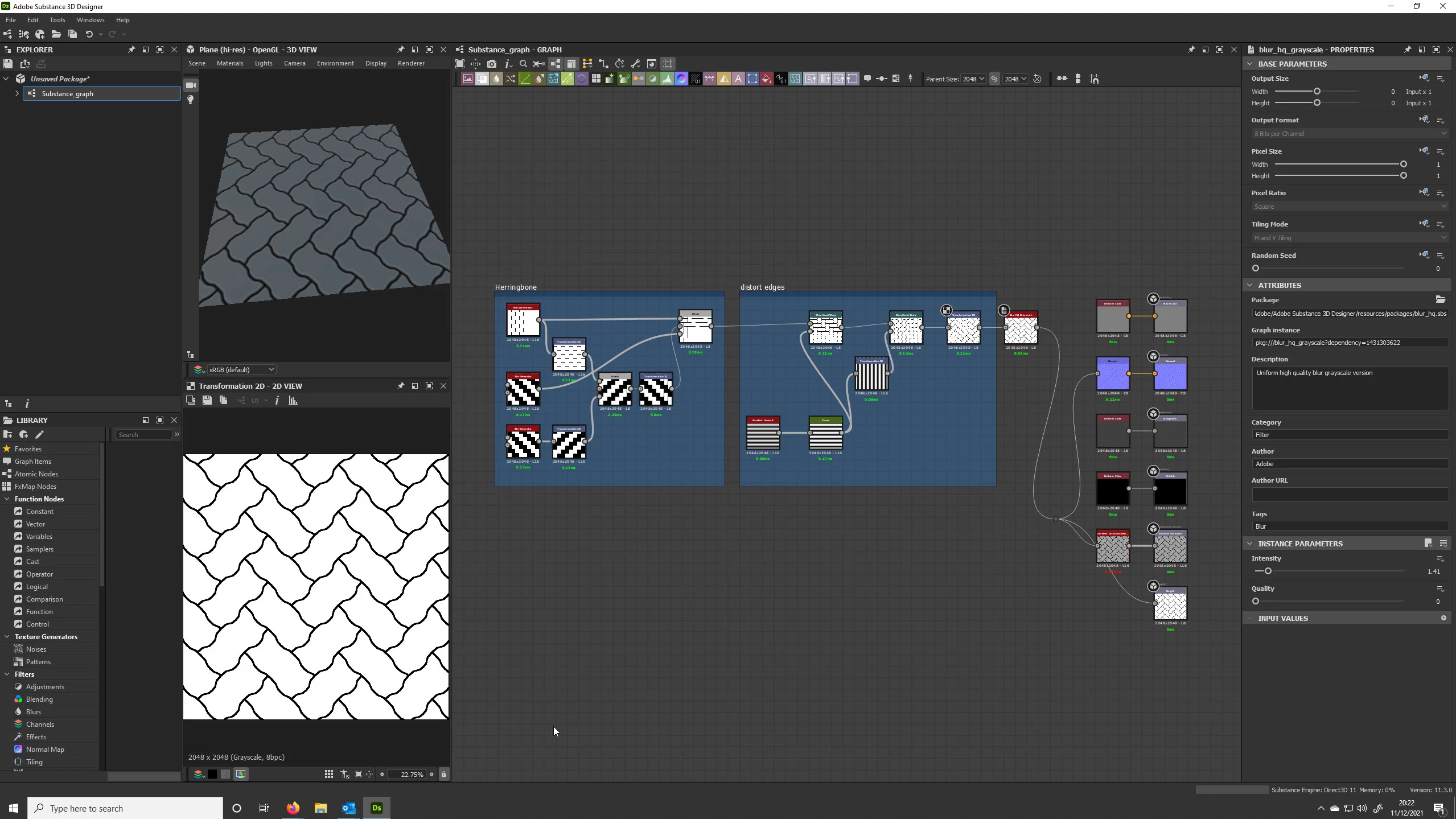

Put together you get this.





You could then go on to add the surface details and damage to the edges with slope blur ...etc



Dave.



1 reply

davescm
Community Expert
davescmCommunity ExpertCorrect answer
Community Expert
December 11, 2021

Hi

First make the herringbone using a brick generator and tile generator (as a mask) I used a ratio of 4:8 for the brick and tile:



Then distort it horizontally then vertically using Directional Warp driven by a gradient with a tile set to 8 (to match the brick pattern above)



Put together you get this.





You could then go on to add the surface details and damage to the edges with slope blur ...etc



Dave.



D
dio blonderAuthor
Participant
December 12, 2021

Genius!!!Really appreciate your idea.
