I am trying to recreate this pattern from a textile

  • October 7, 2022
  • 1 reply
  • 241 views

Hi!

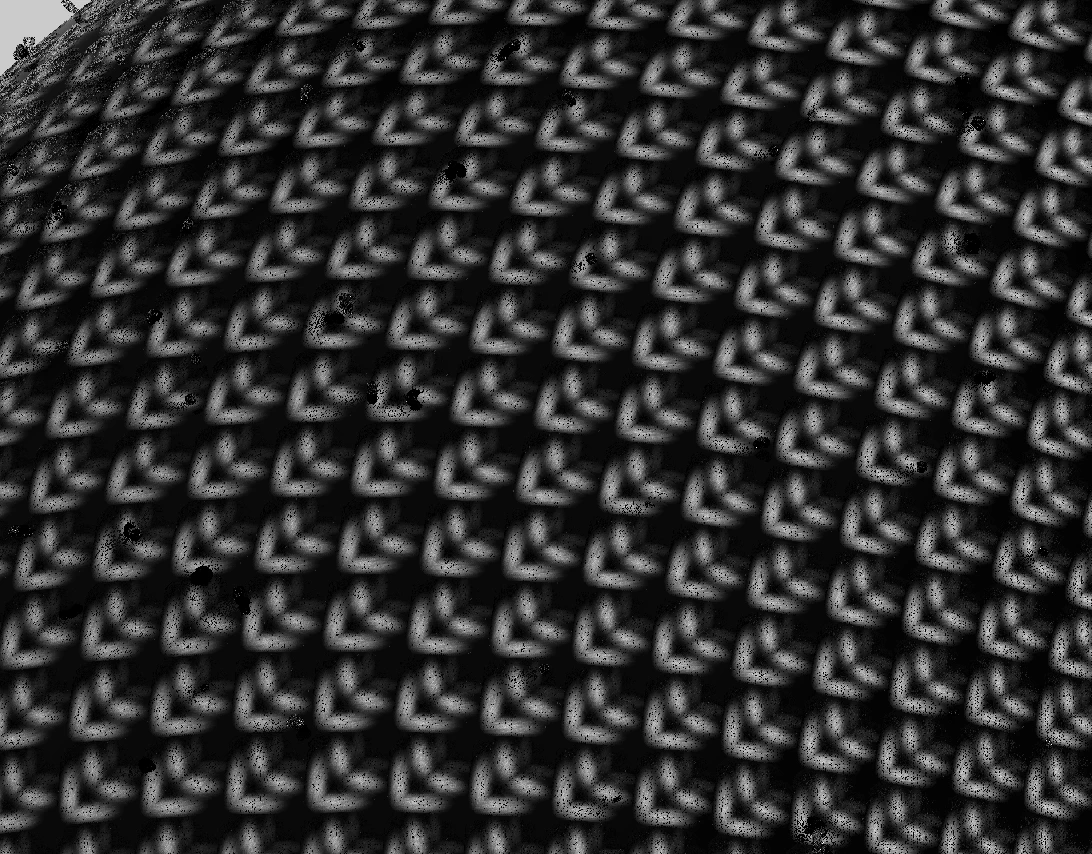

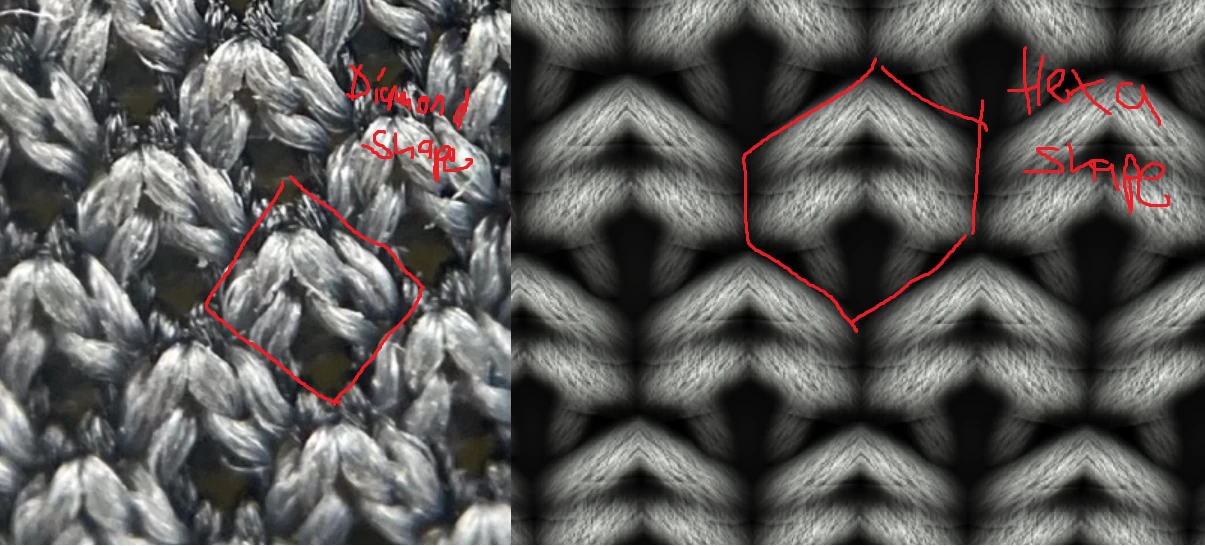

I am trying in Substance Designer to recreate a diamond shaped textile. But I want it to tile like a diamond pattern does, meaning it will have diagonal rows. But I can only achieve a hexagonal shaped pattern, which doesn´t create this diagonal diamond shaped pattern.
Any ideas on how to do this in Substance Designer?

This topic has been closed for replies.
Correct answer davescm

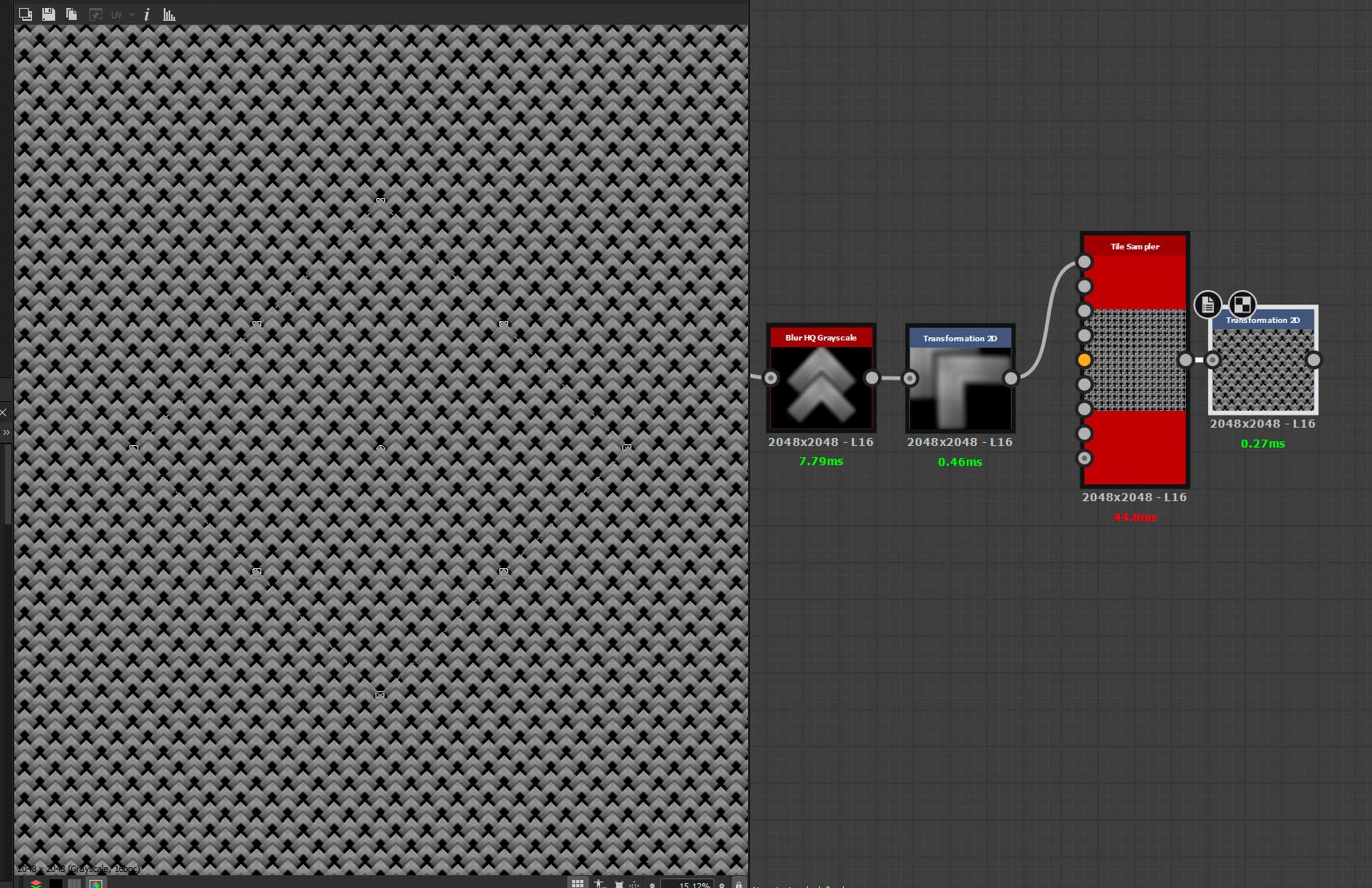

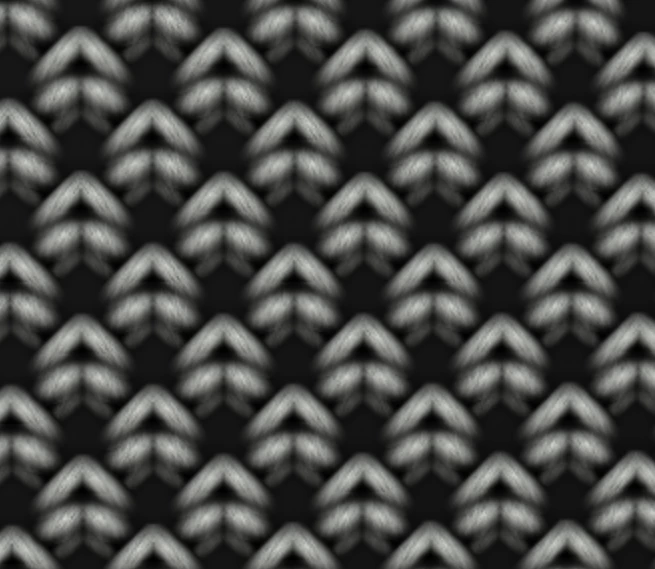

Have you tried rotating it -45 degrees, tiling it, then rotating it back +45 degrees. You have to adjust the size in the final transform so it touches each corner exactly in order to get it to tile correctly.

I didn't make the full fibre pattern but a couple of simple shapes to show the idea.

Dave

1 reply

davescm
Community Expert
davescmCommunity ExpertCorrect answer
Community Expert
October 8, 2022

Have you tried rotating it -45 degrees, tiling it, then rotating it back +45 degrees. You have to adjust the size in the final transform so it touches each corner exactly in order to get it to tile correctly.

I didn't make the full fibre pattern but a couple of simple shapes to show the idea.

Dave

    M
    MengbergAuthor
    Participant
    October 10, 2022

    This worked perfectly! Thanks a lot!
