Output Size of Graph Relative to Parent

  • February 9, 2022
  • 2 replies
  • 1070 views

Good afternoon,

We're trying to ascertain the recommended output size of a graph with output size set to Relative to Parent when publishing sbs files.

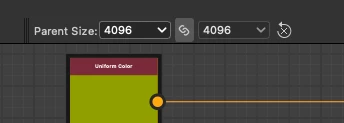

Our artists would like to specify a prefered output size in the graph toolbar:




...but capturing the size specified via the Substance Designer API is proving difficult. If the graph output size is set to Absolute, I can query the output size with this:



prop = graph.getPropertyFromId("$outputsize", SDPropertyCategory.Input)
size = graph.getPropertyValue(prop).get()



But if the graph output size is Relative to Parent, the value returned is always (0,0). Looking through the XML code in the sbs file, the value I'm trying to capture is 'defaultParentSize' in the graph options. Is there a way to query this with the SD API?

    This topic has been closed for replies.
    Correct answer Luca Giarrizzo

    Hello Michael,



    Indeed, the defaultParentSize property of a SDSBSCompGraph object is currently not exposed to the Python API. We agree it is a useful addition and we plan to expose it in a future version of Designer. I appreciate your patience in the meantime!



    Best regards.



    2 replies

    S
    SIE Jake H
    Inspiring
    May 4, 2022

    @Michael Fessenden Did you ever figure out a workaround for this? I'm trying to do something similar and hit the same wall.

    S
    SIE Jake H
    Inspiring
    May 5, 2022

    I came up with a hacky workaround in case anybody else runs into this issue:

    https://community.adobe.com/t5/substance-3d-designer-discussions/python-api-question-any-way-to-get-the-graph-s-size-or-aspect-ratio/m-p/12923219#M1437

    Luca Giarrizzo
    Community Manager
    Luca GiarrizzoCommunity ManagerCorrect answer
    Community Manager
    February 10, 2022

    Hello Michael,



    Indeed, the defaultParentSize property of a SDSBSCompGraph object is currently not exposed to the Python API. We agree it is a useful addition and we plan to expose it in a future version of Designer. I appreciate your patience in the meantime!



    Best regards.



    Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
      M
      Michael FessendenAuthor
      Participant
      February 10, 2022

      Hi Luca,



      Appreciate the speedy reply!



      While we're at it, is there any chance of the SDPackage's formatVersion & updaterVersion being exposed to the Python API?

      That would help us with maintaining SAT compatibility 🙂

        Luca Giarrizzo
        Community Manager
        Luca GiarrizzoCommunity Manager
        Community Manager
        February 11, 2022

        Hello Michael,



        This request makes sense. We shall expose these properties as well!



        Best regards.



        Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
