Spline Select node

Question

Hello!I'm combining Splines into a group and want to select a specific spline from that last node, but when I add the Spline Select node and change the index value, there's nothing. Is there something I need to activate in the indivudual splines that allows them to be seen in the Spline Select node? Also, will this also work if I connect the splines together (Connect start and end)?Thank you!

davescm · Answer

Provided you have not merged the splines then Spline Select should be able to select the individual splines using Index, whether or not you connected them.

If you merged them, splitting by index will not work, although you could still use First/Last and the start and end sliders to select a section from the merged spline.

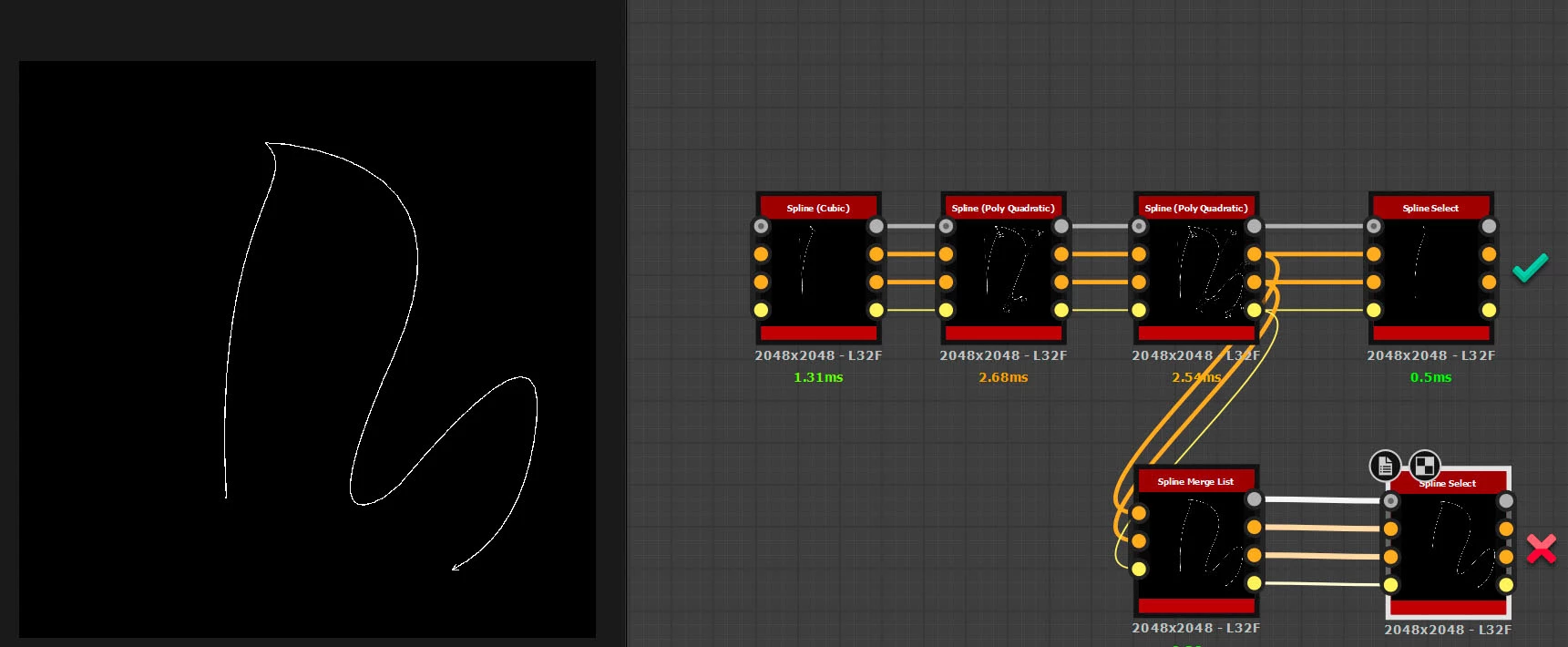

(Screenshot from v13.0.1)

Dave
