Magnifying Lens - HTML5 Canvas

Hi.

I don't know if this is what you're looking for, but here is a suggestion.

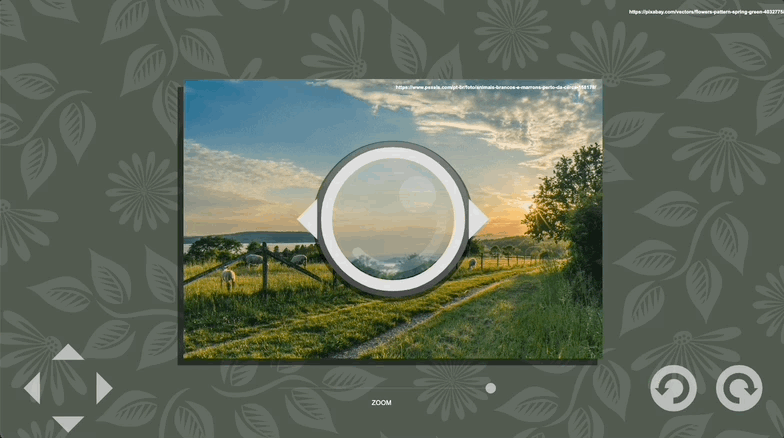

Preview:

Try it:

https://bit.ly/36jjTOA

JS / Javascript code:

var root = this;
var minScale = 1;
var maxScale = 2;
var scale = maxScale;
var minBlurX = 1;
var maxBlurX = 3;
var minBlurY = 1;
var maxBlurY = 3;
var blurX = minBlurX;
var blurY = minBlurY;
var blurQuality = 1;
var moveOffset = 2;
var rotateOffset = 2;
var lens, imageData, img, bitmap, lensBounds, dPad, left, right, up, down,
	rotateLeftButton, rotateRightButton, rotateLeft, rotateRight, slider;

function main()
{
	createjs.Touch.enable(stage);
	stage.mouseMoveOutside = true;

	container = root.container;

	lens = root.lens;
	lens.visible = true;
	lens.mouseChildren = false;
	lensBounds = lens.hit.nominalBounds;
	lens.on("mousedown", onMouseDownLens);
	lens.on("pressmove", onPressMoveLens);

	dPad = root.dPad;
	dPad.on("mousedown", onDPadMouseDown);
	dPad.on("pressup", onDPadPressUp);

	slider = root.slider;
	slider.on("pressmove", onPressMoveSlider);

	rotateLeftButton = root.rotateLeftButton;
	rotateLeftButton.on("mousedown", onRotateMouseDown);
	rotateLeftButton.on("pressup", onRotatePressUp);

	rotateRightButton = root.rotateRightButton;
	rotateRightButton.on("mousedown", onRotateMouseDown);
	rotateRightButton.on("pressup", onRotatePressUp);

	createjs.Ticker.on("tick", onTick);

	root.stop();
	createImage();
}

function onMouseDownLens(e)
{
	var mousePos = getMousePos(e.currentTarget);
	e.currentTarget.offset = { x: mousePos.x - e.currentTarget.x, y: mousePos.y - e.currentTarget.y };
}

function onPressMoveLens(e)
{
	var mousePos = getMousePos(e.currentTarget);

	e.currentTarget.x = mousePos.x - e.currentTarget.offset.x;
	e.currentTarget.y = mousePos.y - e.currentTarget.offset.y;
	setBounds();
	createImage();
}

function onDPadMouseDown(e)
{
	if (e.target === dPad.left)
		left = true;
	else if (e.target === dPad.right)
		right = true;
	else if (e.target === dPad.up)
		up = true;
	else if (e.target === dPad.down)
		down = true;
}

function onDPadPressUp(e)
{
	left = right = up = down = false;
}

function onPressMoveSlider(e)
{
	var mousePos = getMousePos(e.target);
	var width = e.currentTarget.bar.nominalBounds.width;
	var ratio;

	e.currentTarget.button.x = clamp(e.currentTarget.bar.x, mousePos.x, width);
	ratio = e.currentTarget.ratio = e.currentTarget.button.x / width;

	scale = minScale + (maxScale - minScale) * ratio;
	blurX = minBlurX + (maxBlurX - minBlurX) * (1 - ratio);
	blurY = minBlurY + (maxBlurY - minBlurY) * (1 - ratio);

	createImage();
}

function onRotateMouseDown(e)
{
	if (e.currentTarget == rotateLeftButton)
		rotateLeft = true;
	else if (e.currentTarget == rotateRightButton)
		rotateRight = true;
}

function onRotatePressUp(e)
{
	rotateLeft = rotateRight = false;
}

function onTick()
{
	if (left)
		moveLens(-moveOffset, 0);
	else if (right)
		moveLens(moveOffset, 0);
	else if (up)
		moveLens(0, -moveOffset);
	else if (down)
		moveLens(0, moveOffset);

	if (rotateLeft)
		rotateLens(-rotateOffset);
	else if (rotateRight)
		rotateLens(rotateOffset);

	if (left || right || up || down)
	{
		setBounds();
		createImage();
	}
}

function moveLens(offsetX, offsetY)
{
	lens.x += offsetX;
	lens.y += offsetY;
}

function rotateLens(offset)
{
	lens.rotation += offset;
	lens.container.rotation = -lens.rotation;
}

function createImage()
{
	var w = lensBounds.width;
	var h = lensBounds.height;

	container.cache(lens.x - w * 0.5, lens.y - h * 0.5, w, h, scale);
	imageData = container.cacheCanvas.toDataURL("image/png");
	img = new Image();
	img.src=imageData;
	img.onload = onLoad;
	container.uncache();
}

function onLoad(e)
{
	var width = lensBounds.width * scale;
	var height = lensBounds.height * scale;

	if (bitmap)
		remove(bitmap);

	bitmap = new createjs.Bitmap(e.currentTarget);
	bitmap.regX = width * 0.5;
	bitmap.regY = height * 0.5;
	bitmap.x = 0;
	bitmap.y = 0;
	lens.container.addChild(bitmap);
	bitmap.filters = [ new createjs.BlurFilter(blurX, blurY, blurQuality) ];
	bitmap.cache(0, 0, width, height);
}

function remove(target)
{
	if (!target)
		return;

	target._off = true;
	target.parent.removeChild(target);
	target = null;
}

function setBounds()
{
	var width = lib.properties.width;
	var height = lib.properties.height;

	if (lens.x < 0)
		lens.x = 0;
	else if (lens.x > width)
		lens.x = width;

	if (lens.y < 0)
		lens.y = 0;
	else if (lens.y > height)
		lens.y = height;
}

function getMousePos(target)
{
	return target.parent.globalToLocal(target.stage.mouseX, target.stage.mouseY);
}

function clamp(min, value, max)
{
	if (value < min)
		return min;

	if (value > max)
		return max;

	return value;
}

main();

Download / FLA / source / files:

https://bit.ly/3tQ0blq

I hope it helps.

Regards,

JC
