7.1.4 wav is not reordered and horrible bug is present, why not show backs before sides?

  • January 9, 2023
  • 1 reply
  • 888 views

So as you know WAVEFORMATEXTENSIBLE uses specific order of channels and RIFF WAV container must adhere to it, each channel should go after the other in that order and channel mask shows which channel names to skip and which not.



So... In ffmpeg it shows correctly FL+FR+FC+LFE+BL+BR+SL+SR+TFL+TFR+TBL+TBR (so backs are before sides) yet in Audition interface Ls, Rs go first and that introduces a bug.



Ideally you must change Ls to Lsd and Rs to Rsd so that in interface it goes (as in Microsoft standard) Lsd, Rsd, Ls, Rs.



Or if you think this is not cool, reorder the Ls with Lsd contents.



This is very bad since some Atmos masters are like this (if you do not use automation, so no need in dynamic objects). Dolby Media Encoder, BTW, also looks affected.



FFmpeg extracts correctly with

ffmpeg -i cnahcna8.wav -af "pan=mono|FC=BL" mono5.wav

Sample zip attached (rename from docx to zip).

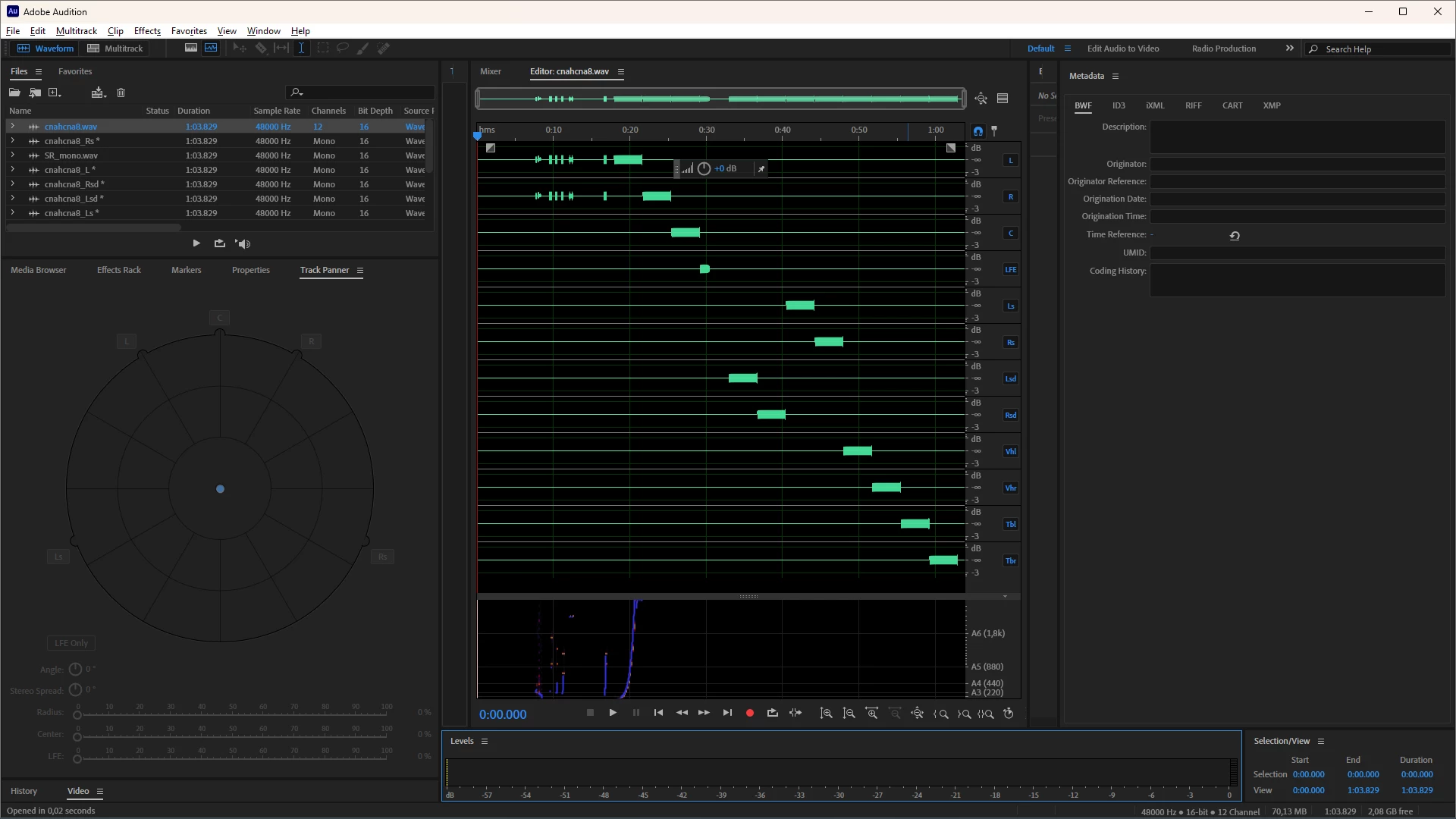

Export thankfully not affected. See the screenhot:





This topic has been closed for replies.

1 reply

ZBallingAuthor
Inspiring
January 28, 2023

No one??

SteveG_AudioMasters_
Community Expert
Community Expert
January 28, 2023

No. We're a U2U forum. You need to talk to the developers, not us.



ZBallingAuthor
Inspiring
January 28, 2023

But this is a bug?
