Adding lines to diagram

  • February 25, 2021
  • 2 replies
  • 306 views

Hi, I have a diagram, let's call it a map of some roads.  I want to have a slide in Captivate that shows the road map, and then highlights different routes as the slide plays.



I tried Shapes, with long, thin rectangles overlaying the roads, grouped together, but I feel like there must be a better way.

    This topic has been closed for replies.

    2 replies

    TLCMediaDesign
    TLCMediaDesign
    Inspiring
    February 25, 2021

    You can convert a smartshape to freeformm by right clicking on the smartshape and selecting Convert to freeform. THen right click again and select Redraw SmartShape. THen just click on the endges of the road to create a new smarshape just like you want.



    Or like Lieve said, you can create graphics in another tool.

    Lilybiri
    Lilybiri
    Legend
    February 25, 2021

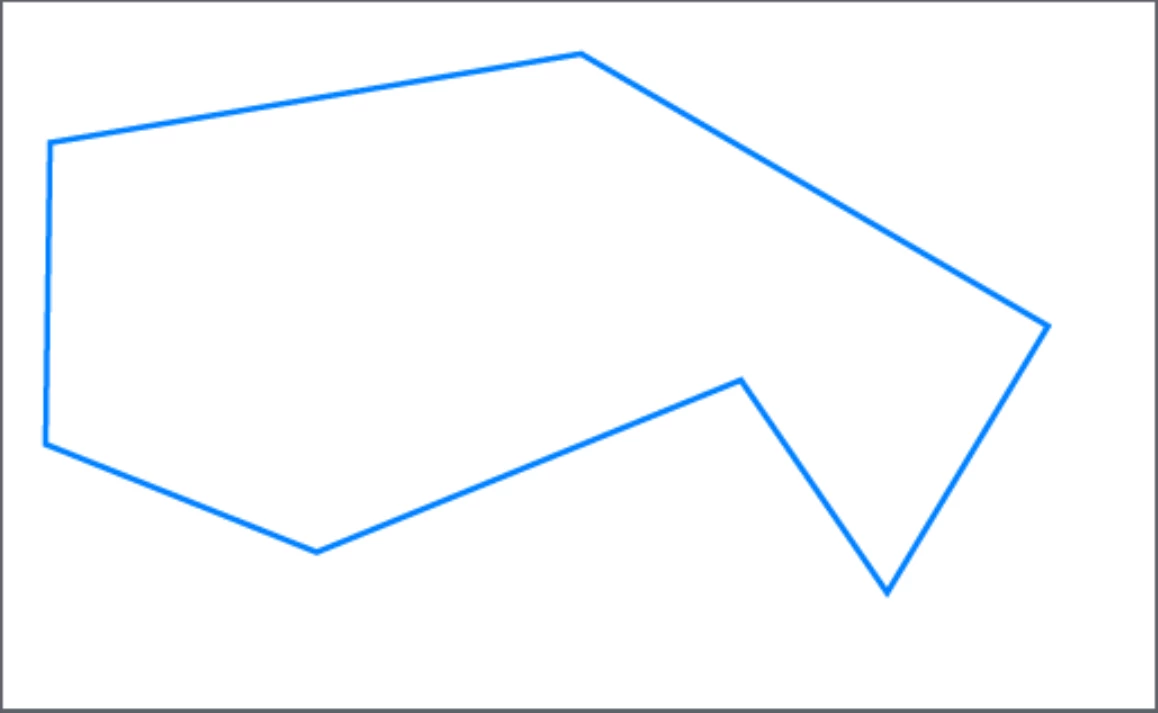

    Indeed you can use a freeform shape, but only if it is a closed shape. You can edit the existing points in the shape, convert them to rounded corners and edit the Bezier curves. But there is no way to add or delete points, you are limited to the existing points. And no way to have an open shape. First two shapes in the dialog box for shapes seem to be 'open' (line and freeform line). I already mentioned the first one and its limitations. The second one is the only shape which allows to add as many points as you want, but it is automatically converted to a closed shape. Even if you make the fill 0% transparent, and use only the stroke, it will be closed. Here is an example, where I never closed the path but it is closed automatically by Captivate:

    This approach would be possible only for closed routes. For any other route it is useless. Sorry, have been pleading since CP6 (8 years ago) to have more functionality for shapes but gave up.

    For that reason I immediately recommended to use another vector graphics application.

    Lilybiri
    Lilybiri
    Legend
    February 25, 2021

    Bit more details could help.  Is this a responsive or non-responsive project? What is the image format of the map? Why not use a vector graphics application like Illustrator to create SVGs for the routes and assemble them in a multistate object? Even in a rescalable project that could be the best approach.

    Captivate has a line shape, but it can be quirky and lacks some functionality like rotation in the Options.
