Known Participant

Question

advanced action: jump to next slide if all text entry boxes are filled out. If not, pause project and show error message

Forum|Forum|16 years ago
August 20, 2009
3 replies
3928 views

Hi there

Working with captivate 4 and advanced actions, which is a great new feature, I encounter the following problem:

I have a sign-in slide, where the user has to insert his name and several other data. For user-friendly handling, I have the text entry boxes appearing one after another, so when the user confirms his entry, the next text entry box appears and has the focus.

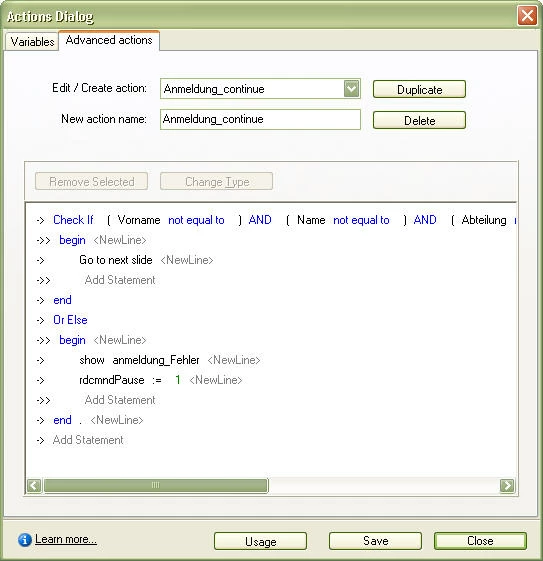

The button for jumping to the next slide works with an advanced action:

Only if the user has filled out all the text entry boxes, the action "jump to the next slide" is performed.

If not, an error message is shown.

It works well so far.

Now, I want the project to pause there, and not to jump back to the beginning of the slide (as suggested in another Thread in this forum), because then the text entry boxes dissappear again.

I tried to set the movie control variable rdcmndPause to 1 in order to make the movie pause, but nothing happens.

I tried it with an external playback control bar and without, it didn't work in either case.

I found the hint:
To control the project through the skin file, add the prefix cpSkinLoader_mc to the variables. This might be the solution.(?)

But how can I change the name of a MovieControl Variable?

If anyone knows, how this is supposed to work or has another suggestion to solve the problem, please let me now.

Thanks a lot.

Petra

Advanced

This topic has been closed for replies.

P

powerpetziAuthor

Known Participant

Dear all

Thanks a lot for all the support and the useful hints you gave me.

After weeks of braincrashing trials I've found the solution, more by chance than on purpose!

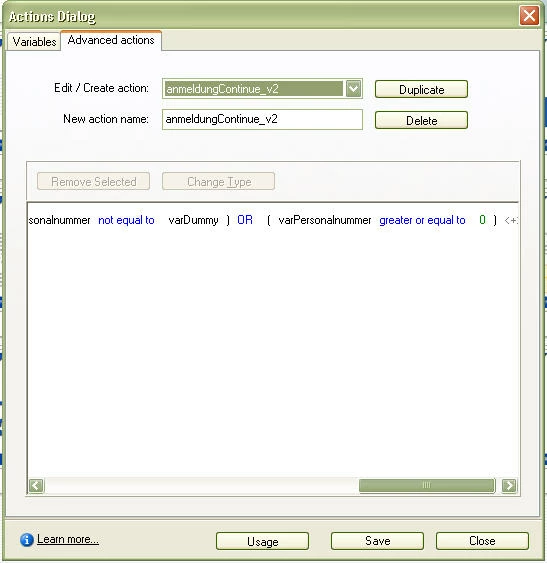

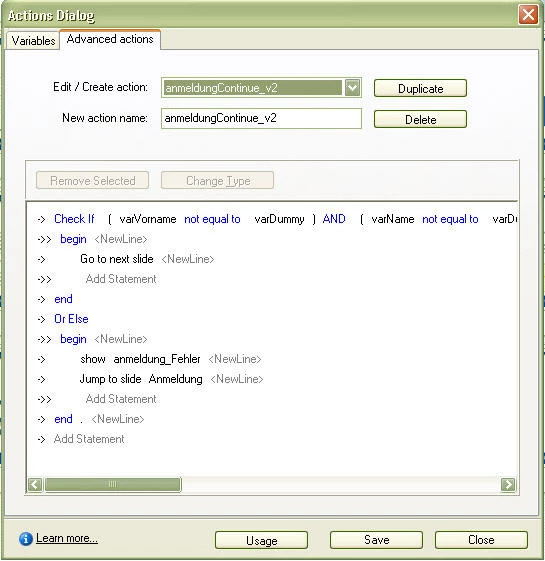

For the TEB which requires only numbers, make the condition first check if the field is empty (not equal to dummy variable) and the use OR and let the condition check if the variable for the respective TEB is a number (greater or equal to 0). (view the attached files to see how it looks in the advanced action editor)

I hope this also helps everyone else who is looking for something similar.

Best regards

Petra

T

travelinrad

Inspiring

Hi Petra,

I believe I can help you, but from a completely different angle than anything you've tried yet. I try to find simple solutions to complex problems. No advanced actions will be needed, just a little creative timing. First, I need to be sure I correctly understand what it is you're hoping to accomplish.

If I understand you correctly, you've got a single welcome slide. On this slide you've got several TEB's (text entry boxes), set up with variables to make your project more personal or gather some required information. These TEB's have no right or wrong answers, they simply require an entry: such as an address which begins with a numeric key. The TEB's are set to appear one after another, as one is completed the next one appears. Once all have been completed a next button, set to "jump to next slide" takes them to the next slide and on through your course. You want the project to pause until the user clicks this button, and only proceed if all TEB's have been entered. If not, you wish an error message to appear.

If the above description is correct, I'd do the following:

Leave your TEB's to show up one at a time as the previous is submitted, as you've described. (each one pauses the slide till info is submitted, then "continues" the slide and the next TEB displays)

Set each TEB to "display for rest of slide".

For the next button: In the properties dialog box, options tab, name the button "Next_button" and uncheck the visibility box.

Open the properties for the final TEB that students will fill in and set the on success property to "show" then choose the Next_button by clicking the drop down arrow beside the "show" field. This will hide the Next button until all TEB's have been filled in.

There is no error message, because there is no possibility of error. Why tell a student they've messed up, just eliminate that possibility! All TEB's only display after the previous is entered, and the Next button is hidden until the last TEB is entered.

I've tested this in a simple 3 slide project and it all worked fine, including some variables. If you need more detailed info, or would like to see the sample proj. I created let me know.

Hope this helps.

randy

P

powerpetziAuthor

Known Participant

Dear Randy

Thank you for your input.

The problem is, that even if the fields are empty, the user can move on with the project.

However, I passed this version on to my customer and maybe it is seen as more user-friendly and accepted anyway.

Actually, I've found the solution for what I was looking for and posted it, so everyone can have a look at it.

Kind regards and thank you for your time!

Petra

W

www_cpguru_com

Inspiring

Hi Petra,

Please see the answer here: http://forums.adobe.com/thread/479725?tstart=0

/Michael

Click here to visit the www.captivate4.com blog

P

powerpetziAuthor

Known Participant

Hi Michael

Thank you for the hint. So I know why it's not working that way.

However, Instead of creating a widget (which is too difficult for me at the moment, with no Flash experience), I would then prefer to use the "rdcmndGotoFrame" variable in order to go to a specific frame. But how I can I find out the correct frame number? Can I see it in Captivate or when I play a published file?

I would be pretty happy if I get this to work.

Thanks a lot

Petra
