C
Christine Fro
Participant
March 25, 2022
Answered

Automatc transitions between 2 slides

  • March 25, 2022
  • 3 replies
  • 1384 views

Hi everybody,



I'm working on a project that I haven't created and which was done with flash player. I've converted it with HTML5, resized it as well, and divided it into small parts (3 to 5 slides each project).

Everthing is ok, apart from 2 projects in which the transition between 2 specific slides is automatic although it should be by clicking on a button.

I've checked all what I could check (property of the 2 concerned slides, no action when closing selected), but I can't find why the transition is automatic..

Could you please tell me at least where I should look for the answer? I'm sure there's a little bix which should not be ticked but I can't find it!

Thank you for your help

    This topic has been closed for replies.
    Correct answer Lilybiri

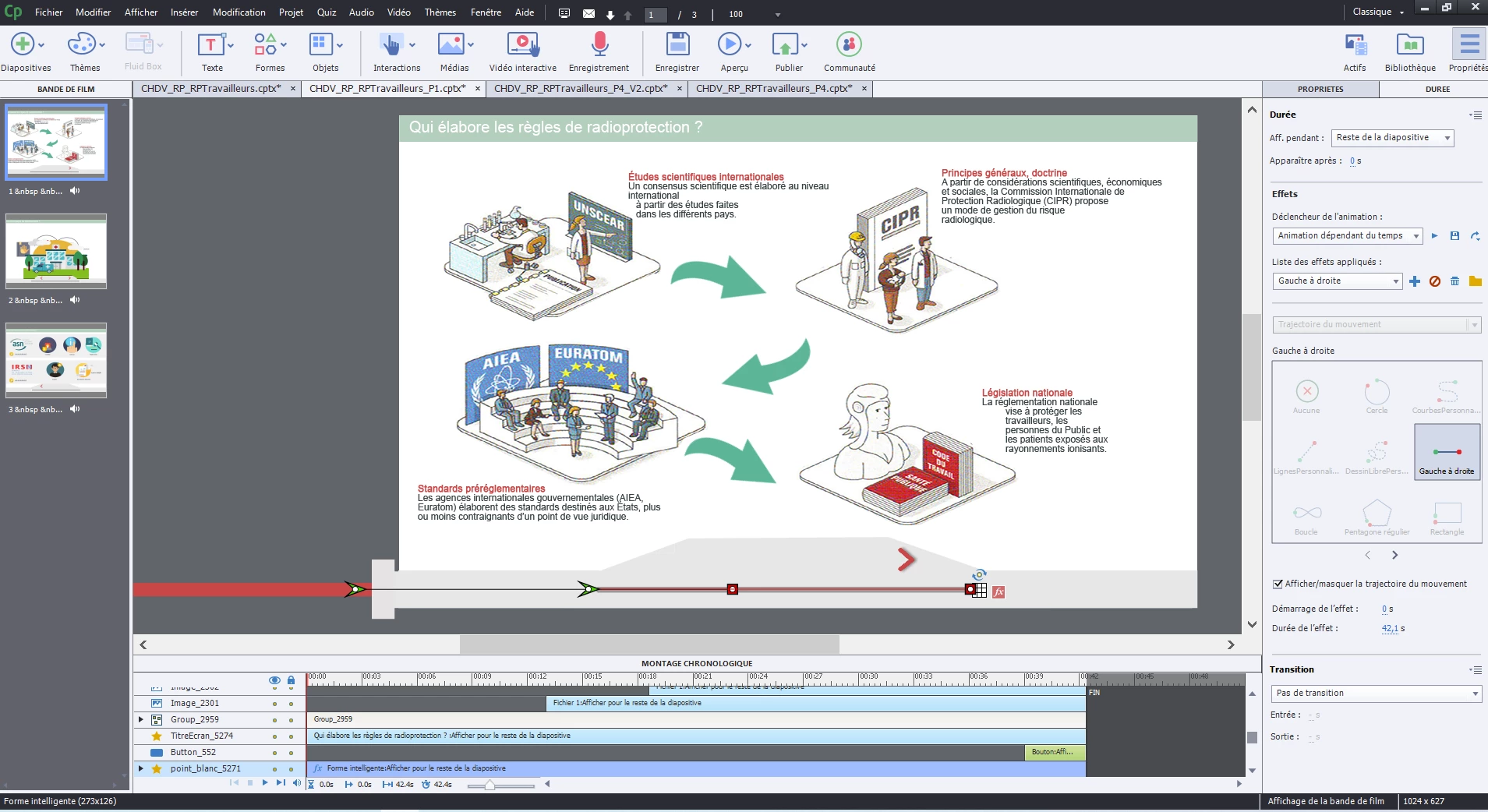

    Here is a screenshot of the first slide. The transition between the next slide should be only by clicking on the red button at the end of the audio.

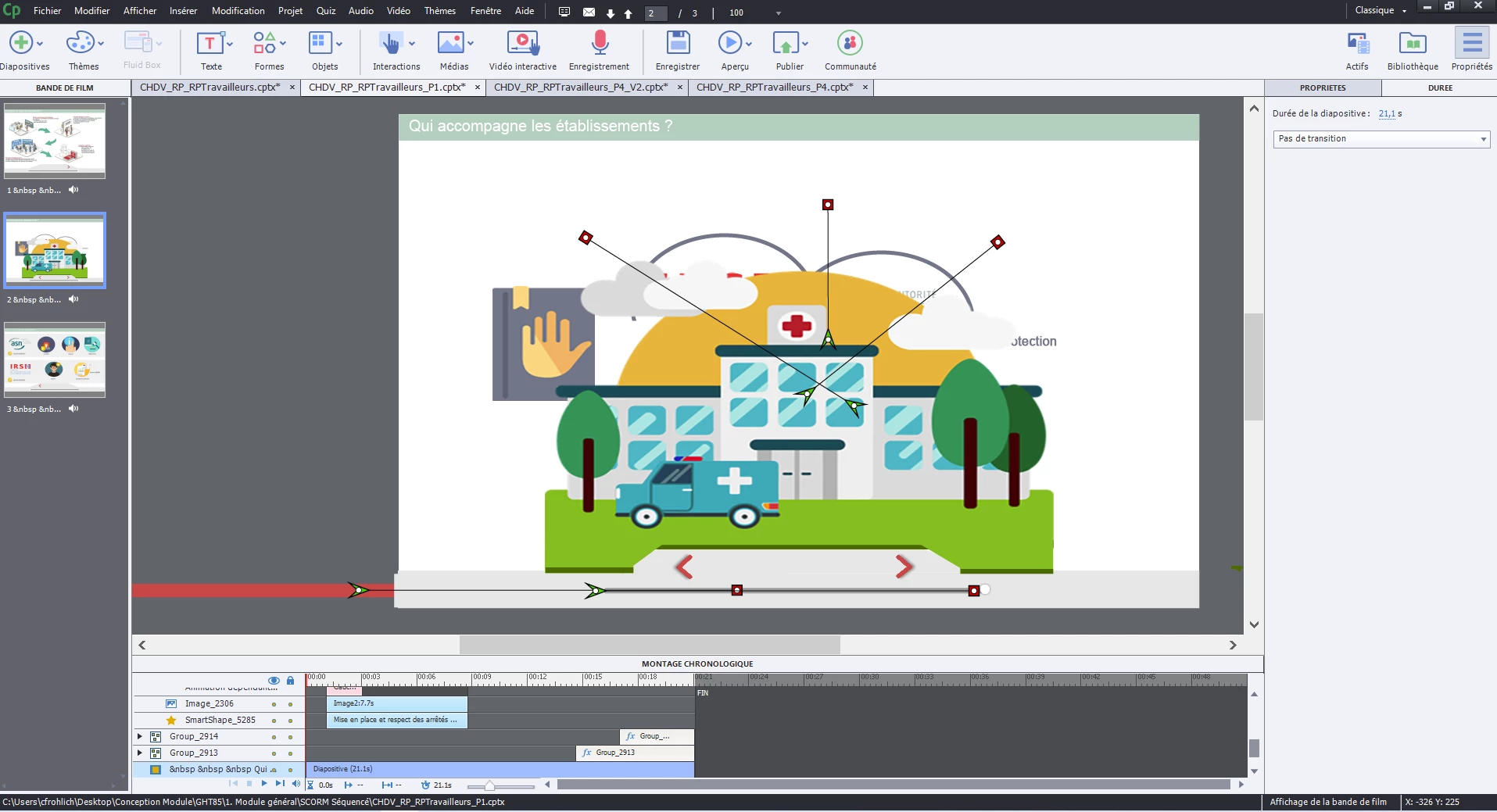

    And here is the next slide

    Everything is in French, and the main difficulty for me is that I haven't created the project, and I'm not very comfortable with Captivate.



    Hope it'll be more clear now!


    French is my second language, English third language. That is not a problem.

    As far as I can see, the button has no pausing point at all. Select the button, go to Timing Properties panel and check if 'Pause after...' is checked. If not, check it, probably it will be set to pause after 1.5secs which woudl be possible since the button timeline seems to be about 3 secs.

    If you are new to Captivate, please read the blog post about pausing the Timeline, it could save you a lot of time cleaning up projects.

    3 replies

    Paul Wilson CTDP
    Community Expert
    Paul Wilson CTDPCommunity Expert
    Community Expert
    March 25, 2022

    Slides will automatically transition to the next slide in Adobe Captivate unlike other applications like PowerPoint. To make sure that they stay on the present slide be sure your interactive objects (like buttons) have a pause applied at the appropriate point on the timeline. I try to make sure my pause point is located after any animations would appear.

    Paul Wilson, CTDP
      Lilybiri
      Lilybiri
      Legend
      March 25, 2022

      Slide transitions will not appear on mobile devices (reason they are reported by the HTML tracker), but from your question I suspect you are not talking about those slide transitions but about a problem with the Timeline of that troublesome slide.

      Is it possible to show a screenshot of the timeline and of the setup of the 'button' (Actions tab of its Properties panel) you are talking about? A button with its default setup is pausing the slide. Learn more about pausing Captivate's timeline in:

      http://blog.lilybiri.com/pausing-captivates-timeline

      There may be multiple possibilities for your situations, will not try to list them up.

      It is possible that the 'button' is on the slide itself, on the master slide or even timed for the rest of the project.



      C
      Christine FroAuthor
      Participant
      March 25, 2022

      Thank you @Lilybiri !

      As far as I understand your answer, the problem could come from the timeline? I've tried different things with the timeline, the properties of objects, and I've found nothing.

      What kind of screenshots would you need to have a more precise idea of my problem?

      Lilybiri
      Lilybiri
      Legend
      March 25, 2022

      Complete timeline (horizontally and vertically) of that slide, button selected.

      Properties panel of the button, Actions tab.

      Check also the Advanced Interactions view of the slide (F9): do you have other actions on that slide, linked to slide events or other interactive objects?

      Slide transitions are just PPT-like styling, have nothing to do with automatic moving forward to another slide if you have a button with a pausing point. @Astro The Goat  probably focussed on the title, and it is confusing due to the used terminology 'transition'.



        Astro The Goat
        Astro The Goat
        Inspiring
        March 25, 2022

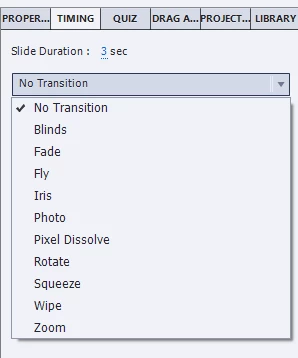

        Slide transitions within Captivate are located on the TIMING PROPERTIES window i.e.



        C
        Christine FroAuthor
        Participant
        March 25, 2022

        Thank you @8206682 ! I've checked this point, and "no transition"is selected.

        So... that's not the point...
