Captivate 7 Drag & Drop On Failure action

Forum|Forum|12 years ago
April 1, 2014
5 replies
5705 views

Hi there!

I added a drag and drop question to my project to create a multiple response question. There are 6 draggable objects and one drop target. User must drag the correct 4 objects to the drop target.

If they do not select the correct 4 objects, I would like a lightbox to appear with feedback and an instruction to try the question again. User must X out of the lightbox to see the question and try again.

I created a group (text box with feedback and close button) for the light box
I also created variables
- Variable1: Show group
- Variable2: Hide group
The close botton has been assigned variable 2 (hide group) on success

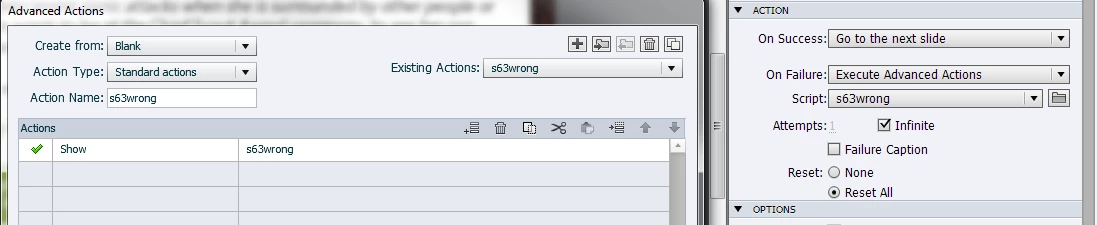

In the drag and drop properties, under ACTION, I selected

On Failure: Execute Advance Interaction
Script: Variable2

I thought that this would prompt the lightbox to appear, but it does not work. I must be doing something wrong! Can anybody tell me what I did wrong and how to get the lightbox to work?

Thanks

This topic has been closed for replies.

EBC

Known Participant

Yeah, the Drag and Drop interaction could be a bit more rigorous. I think I see a way to make your interaction work as you want it to. I am wrestling with a similar scenario. Here is what I have played with...seems to work, might need a bit more tweaking for a smooth appearance, but it is not bad at all.

Set D&D On Success as desired (Next slide...whatever). Set On Failure to Execute Advanced Action. Create an Advanced Action to Show your lightbox group. Create another Advanced Action associated with the close button on your lightbox. That advanced action will both Hide the lightbox message group and Jump to the slide immediately preceding your Drag and Drop slide. You will create that preceding dummy slide to look just like your Drag and Drop slide, but with no interaction at all. This new dummy slide allows the D&D interaction to reset each time there is a failure. Set the dummy slide to display for a split second before forwarding to your true D&D interaction slide. If you build this slide to match your D&D slide exactly, the transition should be imperceptible.

Also, set your D&D No. of Attempts to 1 and turn off Failure Caption, as you have created a lightbox group to serve that purpose. Seems to work great when I try it. For the learner, a Fail triggers the lightbox. When the lightbox is closed, the D&D interaction seems to reset and start again smoothly.

K

KarleaM

Participant

EBC,

Your suggested solution seems great. However, when I implemented it, my D&D interaction is not resetting. Is there any kind of script I can place in the Advanced Action to force the D&D interaction to reset?

The built in Reset radio button for the D&D is only available when Infinite Attempts is selected.

Lilybiri

Legend

Drag&Drop is automatically reset when you leave the slide for another slide and come back to the original one. I thought the proposed solution was working with a dummy slide.

Z

ziofonta222

Known Participant

no way i can make this working, so i made a workaround for now, a message that appears on last attempt triggered on failed event. Furthermore, while flash version works fine, html5 version of D&D is buggy, the feature "pause after xx sec" does not work and i cant pause the slide at the end, neither using a hidden button with pause inside. Also, some drag items disappears and the feature to avoid just 1 item on drop target does not work. I'm using Captivate 7, do you know if version 8 has fixed these bugs? We have tried to convince a very important customer of us to migrate lot of courses from Storyline to Captivate for several reasons, including a better experience on ipad, I don't know if we are particuary unlucky, but D&D is really difficult to set up working, compared to Storyline. Another feature that for sure is really appreciated in Storyline is the capability of control different layers with individual timeline, in this way you can display, animate and control different content and audio very easily compared to conditional actions in Captivate, that are limited to single object. But this is another topic, we at least would like to set up a working d&d in html5...

Lilybiri

Legend

Hmmm, Rod, maybe again I understand your explanation wrongly? Like with other question slides you only have a Success action that is executed on Success, however the Failure action will only be done when attempts are exhausted, how can you use it to change the Failure caption?

It can be done with the individual actions on drag action for target objects, not with the Failure action on the D&D.

Z

ziofonta222

Known Participant

it would be necessary to distinguish between a failed attempt whitin the maximum attempts allowed and the last attempt.

I need to display different messages on the screen in these two situations. failure caption appears always when answer is wrong, so i thougt to place a different message aside the failure caption like this:

"please try again" if you are not on the last attempt allowed

"you have no more try left" or something similar on the last attempt.

otherwise, how can the user know if he has more attempts left or not?

so, maybe this can be achieved using advanced action. Is there any variable related to the attempt of one question, and or the last attempt? in this way i could use a conditional action.

Lilybiri

Legend

No system variable for attempts on question level, none for D&D neither. You will have to create a user variable, that you'll increment after first attempt and use that variable to choose the right caption or populate another user variable that is inserted in the Failure caption.

Z

ziofonta222

Known Participant

so strange that drag&drop is missing different failure captions while other quizzing slide don't.

Trying to allow 2 attempts, I'm becoming mad to display 2 different messages on failure, as it would be expected:

1. "wrong answer, please retry" (on first wrong attempt or any other attempt but not the last one allowed)

2. "wrong anwer" or even better "wrong answer, this is the right choice" giving a hint on the last attempt.

In my case, the failure caption appears each time, also on the last attempt, so which message can i insert on it? "retry" would be wrong, while after the first attempt the user should know he has another change to answer, isn't right?

RodWard

Community Expert

That's just the way the drag and drop interaction is currently set up to work. But it's not necessarily the end of the world. Why don't you make the Failure caption display text from a user variable and use your Success or Failure actions to change the value of this variable?

RodWard

Community Expert

You seem to misunderstand how variables, runtime events and actions work in Captivate.

Your Close button doesn't get assigned a variable called SHOW group. It can execute an Advanced Action that SHOWs or HIDEs a group with a given Item Name.

Take a look at these posts:

http://www.infosemantics.com.au/adobe-captivate-advanced-actions/introduction-to-system-and-user-variables

http://www.infosemantics.com.au/adobe-captivate-advanced-actions/run-time-events

http://www.infosemantics.com.au/adobe-captivate-advanced-actions/single-actions

A

Anonymous

Hi RodWard,

I'm sorry I'm not using the correct terminology.

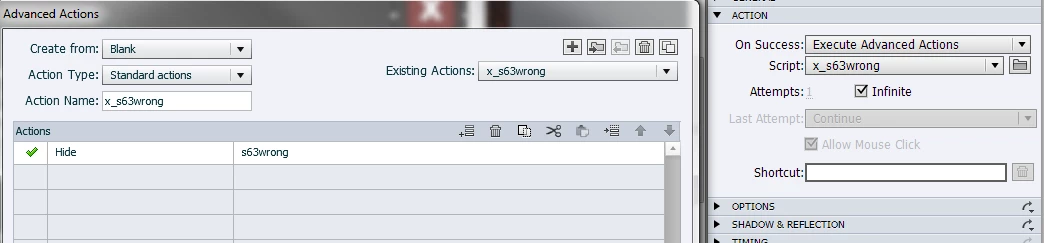

My problem is not with the close button - I created a hide variable that works perfectly when I click on the close button. That is, it hides the lightbox when clicked (or "exectues an advanced action" to hide group).
