Checkbox widget text wrapping issue

  • June 2, 2015
  • 3 replies
  • 803 views

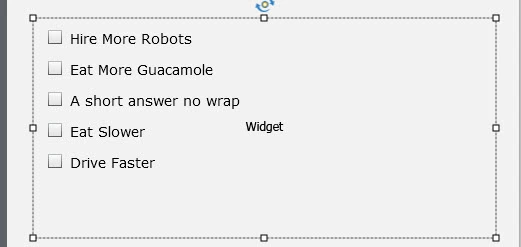

I am using the stock checkbox widget in a standard responsive project in Captivate 8.0.1and even though it looks fine in the working window....

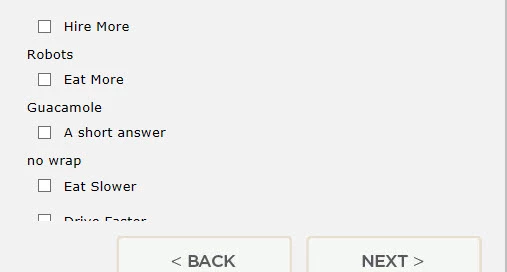

when I publish it.....the text wraps around.

I simply want the checkbox widget to stop arbitrarily wrapping the text.

What am I missing here?

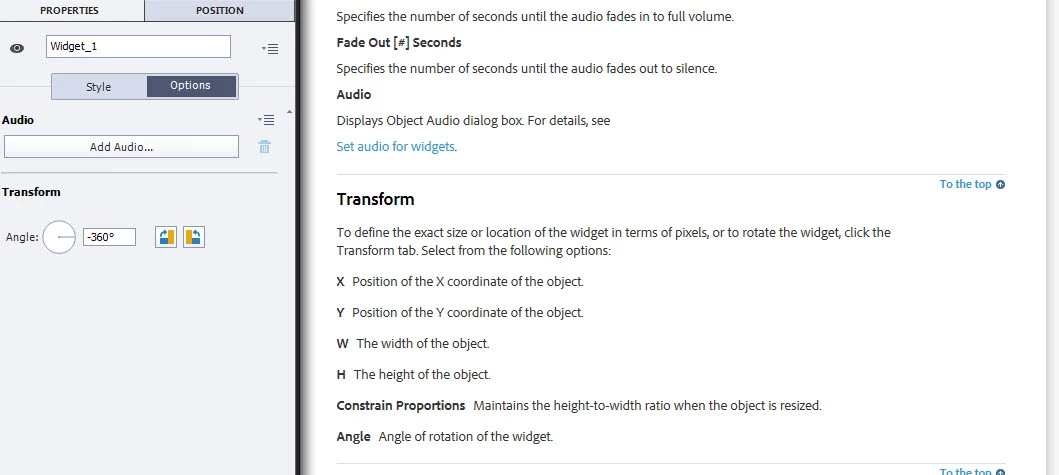

Now even though the "help" section says I can set the position and size in the Transform window....there does not seem to be any options other than rotate...

Aside from that....
When I do click on the info button to see what the size/position etc., it says 140 for the width, 175 for the height.

but when I go to properties...I can see a different dimension.  What looks to be the correct dimension.

I have tried everything and searched everywhere I can think of for a solution to this.

I have reset the width.height on each of the "views" and refreshed and tested each on individually, and they are all doing it.

I've even made the text blank, and aligned new, individual captions for each check boxk next to each check box in order to fake it.  Even that doesn't work, because the text (while, again....looking perfect in the working window, becomes misaligned when published)

Can anyone please help me with this?


This topic has been closed for replies.

3 replies

TLCMediaDesign
TLCMediaDesign
Inspiring
June 2, 2015

In the widget html file, change the bolded width in this line:

<div ID="Widget_4538_checkbox" style="width:640px; height: 175px">

The file is located in the applicable folder, my widget id is 4538.

wr/Widget_4538/Widget_4538.htm

N
Noah_HAuthor
Participant
June 2, 2015

That's interesting TLCMediaDesign  !  I was able to find the file and the style parameter for the div tag and it was 140X175 just like the "Animation Information" dialog box said.  so I changed it to 220X400 just to see what would happen.  No Change.  However, once I inserted the new "Updated" version as mentioned by Lilybiri, and selected "Scale text" (although it might work with it unchecked now as well) everything looks great.  Your advice on changing that style tag is very clever.  I will keep that in mind moving forward.  I'm already thinking of ways to customize the output based on your suggestion.  Very helpful!  Kudos! and Thank you very much!

TLCMediaDesign
TLCMediaDesign
Inspiring
June 2, 2015

I'm using the same thing and mine always wrap, no matter if I use the new or old ones. I've found that's it's easier to manipulate the old ones.

Very frustrating to have to apply my fixes every time I republish. I now have a version where I just copy in the new CPM.js and leave the widget folders alone. I have 35 of the interactions.

I also code mine to reset the radio buttons, and fix a IE error that gets thrown if you reselect a radio button. Mine also work in FIrefox.

TLCMediaDesign
TLCMediaDesign
Inspiring
June 2, 2015

I've had problems with the Checkbox and radio button widgets and interactions. I had to edit the JavaScript to get them to work properly.

I haven't checked the Checkbox interaction, but the Radio button interaction converts numbers to strings and then tries to use that string to compare with numbers. It's doing the comparison for widths and heights. It will never work. I had to add in the code to rewrite the strings back to numbers.

Lilybiri
Lilybiri
Legend
June 2, 2015

Do you use the Checkbox widget or the Checkbox Learning Interaction?  The latest version of the interaction has a checkbox for Scale Text, do you have that version:

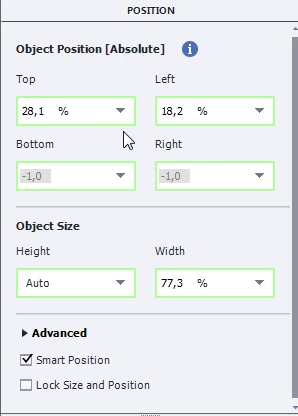

I'm also puzzled by the Position panel setup, I would never use absolute size and position (px) for a responsive project. When I double-checked inserting the interaction in a responsive project, after resizing on the stage, I did get (just an example) these settings, and do not see any text wrapping when Previewing in Browser:

N
Noah_HAuthor
Participant
June 2, 2015

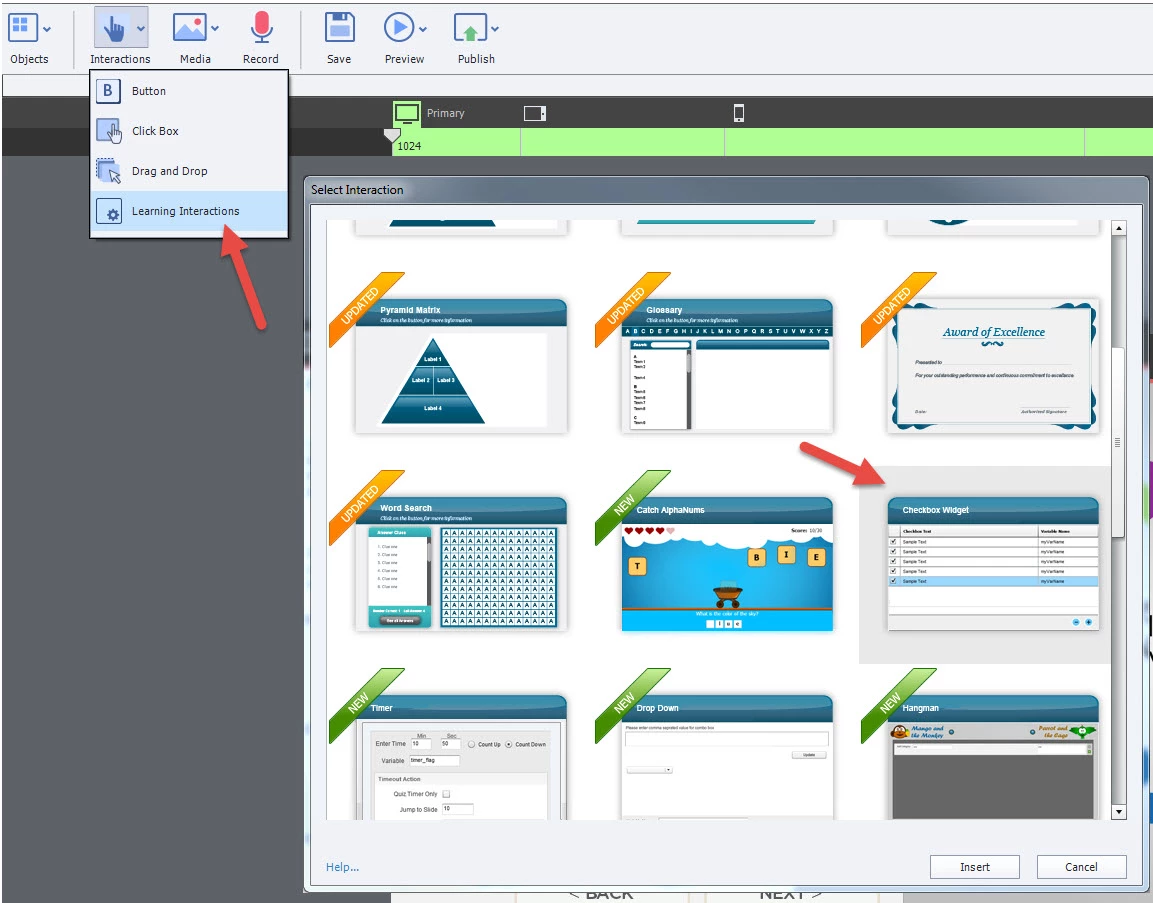

I am using the Learning Interaction, and it had the Updated ribbon when I captured this screenshot...so I tried it out, as I did not previously have the "Scale Text" option you mentioned...

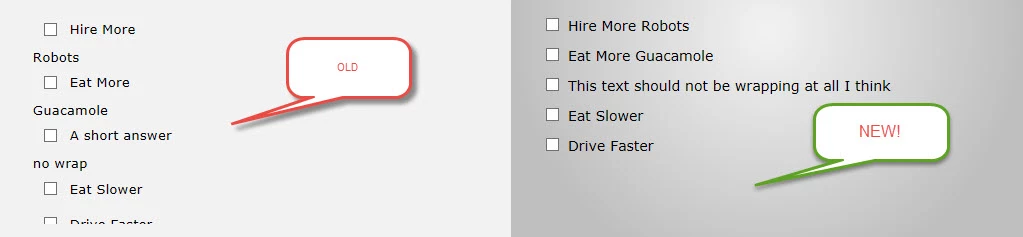

It worked!

And I can't thank you enough!  All the views look great too btw.  I don't use absolute size or position either in responsive projects either, just grasping at straws with my testing by that point.

I will experiment with that new scaling option and see what kind of results I get.

Thank you again Lilybiri!  Problem solved, and I couldn't be happier!
