Drag and Drop with Advanced Action?

  • January 18, 2017
  • 5 replies
  • 3095 views

I am wanting to know if it is possible to add and Advanced Action to a Drag and Drop.  What I want to have happen is if they do not get the Drag and Drop correct the first time can a hint pop up the second time when they hit the submit button if incorrect?  If they do not get it right the third time and they click submit can a different hint pop up?

This topic has been closed for replies.
Correct answer Lilybiri

As promised, a link to the blog post:

Custom Failure Messages/Attempts - Drag&Drop - Captivate blog

5 replies

wdolphin
wdolphinAuthor
Known Participant
January 20, 2017

Thank you so much to take the time to figure this out and then write it out and demo it on your blog. I really appreciate you and your time.

wdolphin
wdolphinAuthor
Known Participant
January 19, 2017

Thank you , I can't wait to see what you came up with.-

kmed
Participant
January 19, 2017

Hi! Yes - this is possible. I created a D&D interaction that verifies if the target is correct, if not, then it displays an error message. Here is the general idea:

  1. Create your D&D interaction
  2. Create a count variable to verify number of attempts.
  3. Create a variable for each correct item, set the value to 0. On correct, assign a command under the drop target > Format > Object actions > Assign var_name with 1.
  4. Create three separate custom messages (I recommend creating 3 Smart Shapes with the custom message and a close button [to hide the custom message] for each, then grouping them together). Make sure that these are not visible at run time!
  5. Create a new button (don't use the D&D default button)to Execute Advanced Action.

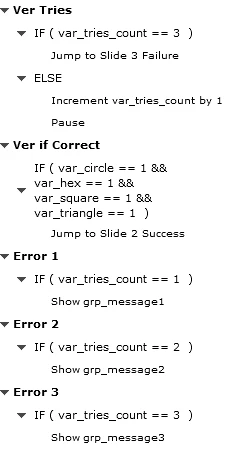

  6. The advanced action should look something like this:

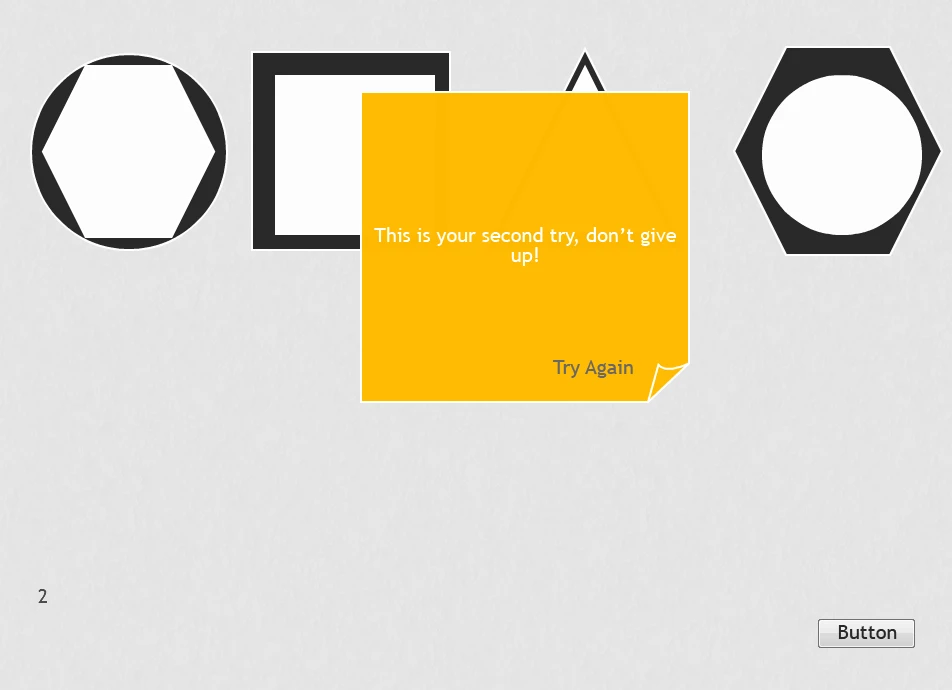

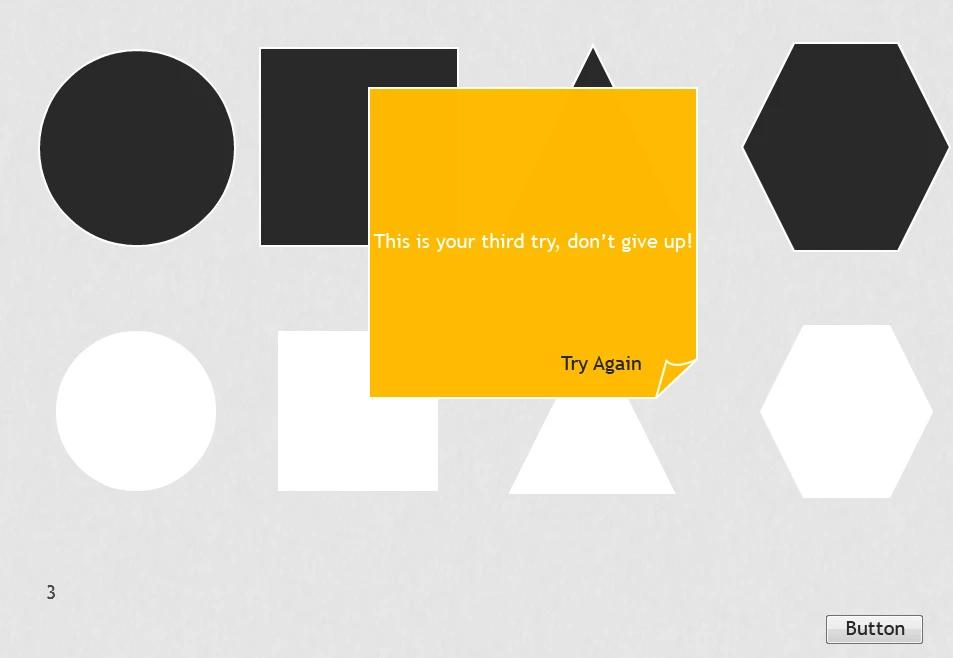

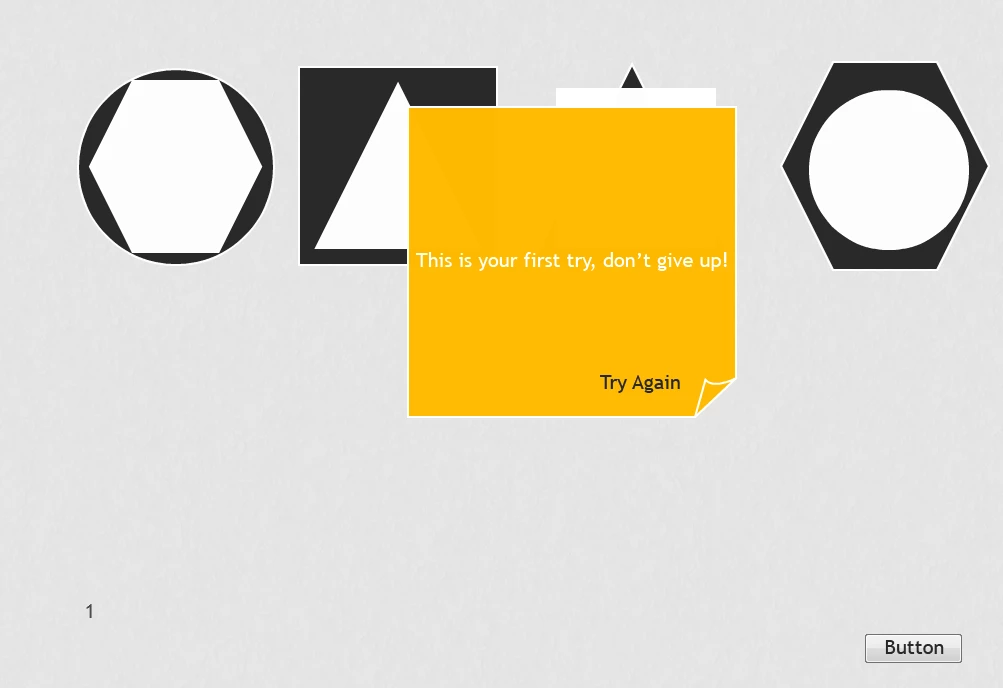

Here is how the project looks:

I hope this help!

Lilybiri
Legend
January 19, 2017

A lot of slides, I have a solution where all is done on the same D&D slide, which may be important for file size. Will post soon on my blog.

wdolphin
wdolphinAuthor
Known Participant
January 19, 2017

What I would like to happen is each time them click Submit and they are wrong a new hint pops up.  They would get a max of three hints.  On success they will be able to move on to the next slide.  A new hint each time (up to three hints changing each time).

Lilybiri
Legend
January 19, 2017

I have worked out a solution, will not post it here but in a blog post and add the link. Probably that will be tomorrow (is already late in evening here).  You may find this weird, but have reasons for not posting full solutions directly in the forums, too much abuse.

The solution would have been easy if D&D also allowed multiple Failure captions like the quiz slides, but that is not the case. The solution is set up in such a way that you also can have more than 3 attempts if necessary, but it has to be a fixed amount.

wdolphin
wdolphinAuthor
Known Participant
January 19, 2017

If you mean am I reporting this -Include in Quiz the answer is no.

Lilybiri
Legend
January 19, 2017

OK, in that case I could find perhaps an easy way to solve this. I need some time to double-check however. Idea is to keep track of the attempts with a user variable, re-enter the D&D slide for a next attempt, show the appropriate feedback message on Failure out of a hidden group of feedback messages. The issue is with the default setup that the so-called Failure action is really a Last attempt action, you cannot use it for your goal. How many attempts would you want? It is also important to know what has to happen after the allowed attempts, and On Success. Will you allow the user, after having completed this slide, to come back later on?

Lilybiri
Legend
January 19, 2017

Is this a scored D&D slide or unscored?
