Image Won't Advance to Next State in HTML5 Preview

  • March 10, 2020
  • 1 reply
  • 599 views

Hello,

I am a complete newbie to Captivate. Is there a reason that an advanced action including "Go to Next State" for an image would not work in HTML5? the action also includes the command to "Go to Next Slide," and that part is working.



I attempted a game show style activity where each correct answer would increase the score on the scoreboard. I made the images of the scoreboard at each point interval, then loaded them in as states of the original scoreboard. For each correct answer (button), the advanced action is set to make those scoreboard images "Go to Next State" as well as advance to the next question.



It worked perfectly in preview, however, when previewing in HTML5 and publishing, it is not functioning. The original scoreboard remains and correct answers will not advance the image to the next state.



I am in Captivate19. I'm hoping there is a glaring mistake that my lack of experience can't see and that this is a simple fix.



Thanks in advance!

Caryn





    This topic has been closed for replies.

    1 reply

    Lilybiri
    Lilybiri
    Legend
    March 10, 2020

    Captivate's most recent version is 11.5. Can you please check the exact version number under Help, About Captivate?



    Can you insert a screenshot of the Preview Advanced Action which you use, and tell which event you are using to trigger it?  Need to see the logic You can change state for a multi-state object when you are on another slide with an advanced action, that is not the issue.

    Preview project uses a temporary SWF output in a non-responsive project, not useful anymore.

    C
    caryn ericksonr52771863Author
    Participant
    March 10, 2020

    Thank you, Lily.



    I am using 11.0.0.243. I am waiting on being updated, but I work in a public service entity so there is a wait.

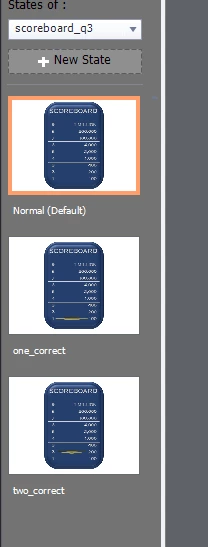

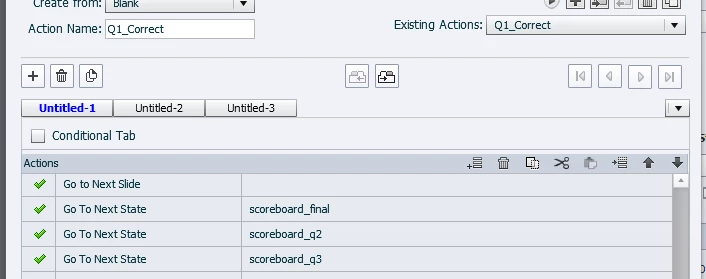

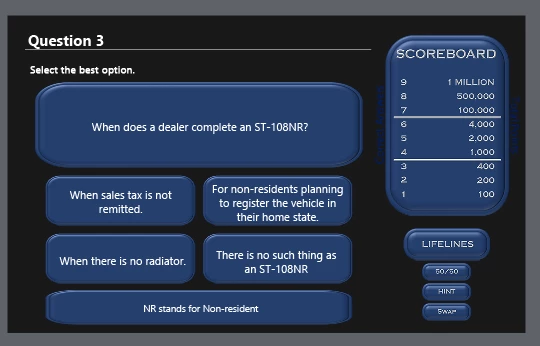

    Here is an example of a question slide. Any of the three incorrect answers just advance to the next question. The following image are the states showing the point total going up, followed by my advanced action.



    The purpose was that each correct answer would add points; no loss of points for incorrect answers. If there is a known way to do this simpler, I would take any suggestions!



    Thank you so much for looking at this.







    Lilybiri
    Lilybiri
    Legend
    March 10, 2020

    Easiest way would be to use default quiz slides, Multichoice questions. Why create custom questions since you are a newbie?  I would never creaet a scoreboard using states, but use a variable which you can insert in any text container, and will update when you increase the score by an action.

    Even if you do not use custom question slides, attach a score to the correct button. If you set it to be reported, it will be automacally included in the quizzing system variables.

    Why make such a complicated setup which could work if you know indeed the advanced/shared actions really well.  Have more than 10 years of experience with all types of use cases, and my blog shows it very well.



    My recommendation: use MCQ questions. If you want to show a popup on the quiz slide, read one of my articles (have at least 50 about quizzes and custom questions):

    http://blog.lilybiri.com/popups-on-quiz-slides



    Indeed the version you have is even without the bug patch to 11.0.1.266, and also of course to 11.5.1.499.
