May 18, 2015
Question

moving objects on screen using JS?

Is it possible to move objects (text box in this case) on the screen (change the X and Y value) using JS?

I've tried changing the CSS value sof those objects (top and left) but it doesn't seems to work...

Thanks.

This topic is closed to new replies. Start a new post to keep the conversation going.

9 replies

Andrew Allan
Participant
November 18, 2021

It's true you can't change the top and left values. But you can change the margin and probably padding.

I made a long bar with a dot at the end as a progress indicator, 2000px wide and set left to -1988px (since at least part of it has to be in frame).

I then changed the left margin according to proportion of the way through the slides using a javascript advanced action (prefix your object with "re-" and suffix it with "c":



const elem = $('#re-Progress_dotc');

var currslide = window.cpAPIInterface.getVariableValue('cpInfoCurrentSlide');

var numslides = window.cpAPIInterface.getVariableValue('cpInfoSlideCount');

var margin = (currslide / numslides) * 100;

elem[0].style.setProperty('margin-left', margin + '%', 'important');

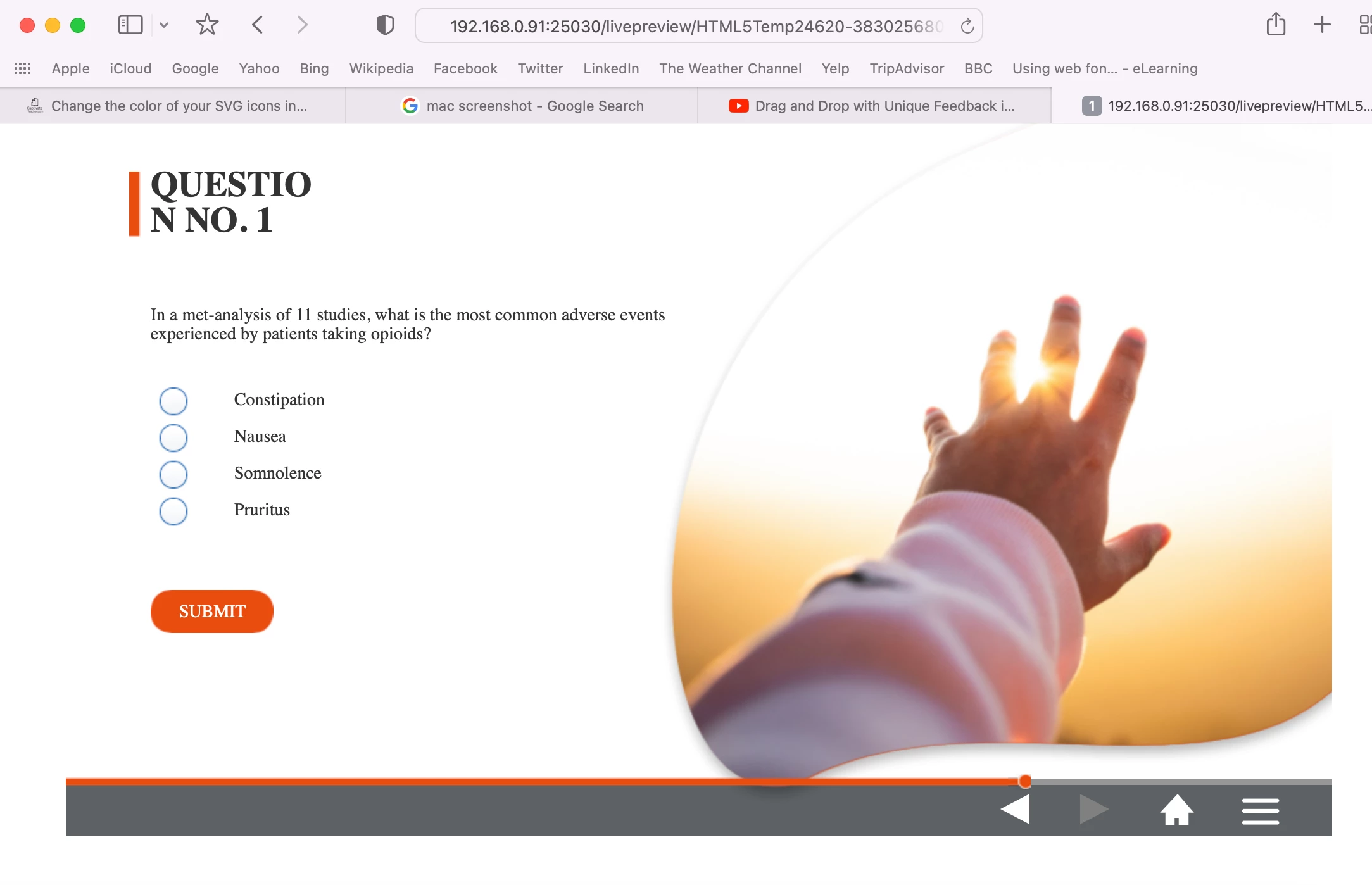

Which gives me this, my image being the orange bar with the dot at the end:

Translate
Legend
May 18, 2015

Unless you are working on a responsive project in CP8, you can use motion path for that.

Sreekanth

Translate
omerd80690951
Known Participant
May 19, 2015

Thanks, but that's not what i meant.

I don't want to animate object to it's location, i just want to set it's X and Y to a different location.

Translate
TLCMediaDesign
Inspiring
May 19, 2015

This script move a button I have on the screen called next_btn:

var mybutton = document.getElementById("next_btnc");

mybutton.style.left = 300 + 'px';

Translate
