Reset the position of an object after an effect has been played

  • May 24, 2019
  • 10 replies
  • 899 views

Hi there,

I have an effect on a group of objects. It is a risk meter. When a user clicks on the button "high" there is an advanced action that moves the needed called "grp_Needle_01" to the left. The thing is that if I click a second time the button "high", the needed goes further left, etc.

This behaviour is normal, but how can I make it so when I click on "high" the needed goes back to the 0 position (in the centre) and moves to the left the same way it does when I click the "high" button the first time.

There is an easy option in Storyline that solves this. I was thinking that there should be a way to do that with Advanced actions in Captivate.

Thanks in advance for any ideas.

Bobby

    This topic has been closed for replies.

    10 replies

    Lilybiri
    Legend
    May 24, 2019

    The easiest trick to reset an effect is to re-enter the slide. That can be done with a dummy slide of a very short duration (0,1sec) before the present slide and the command 'Go to Previous Slide'. Alternative is with micro-navigation.

    Inspiring
    May 24, 2019

    Thanks Lieve

    I would prefer to avoid re-entering the slide.

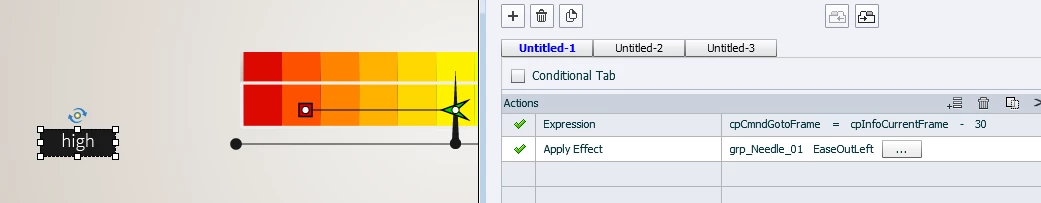

    The pause is at frame 31. There is something that i am not doing right

    Lilybiri
    Legend
    May 24, 2019

    Re-entering is necessary, whether with a dummy slide or with micronavigation.

    Alternative is to create the opposite effect and apply it. No that easy with motion paths, or you could use the XML file to create a custom effect.
