Responsive - button placement and looping

  • November 18, 2020
  • 1 reply
  • 310 views

Hi there,



I'm creating a responsive module and have 2 questions.



1. My button moves off the slide in the phone view. I've tried a bunch of options and for some reason the button always goes off to the right in the phone view.

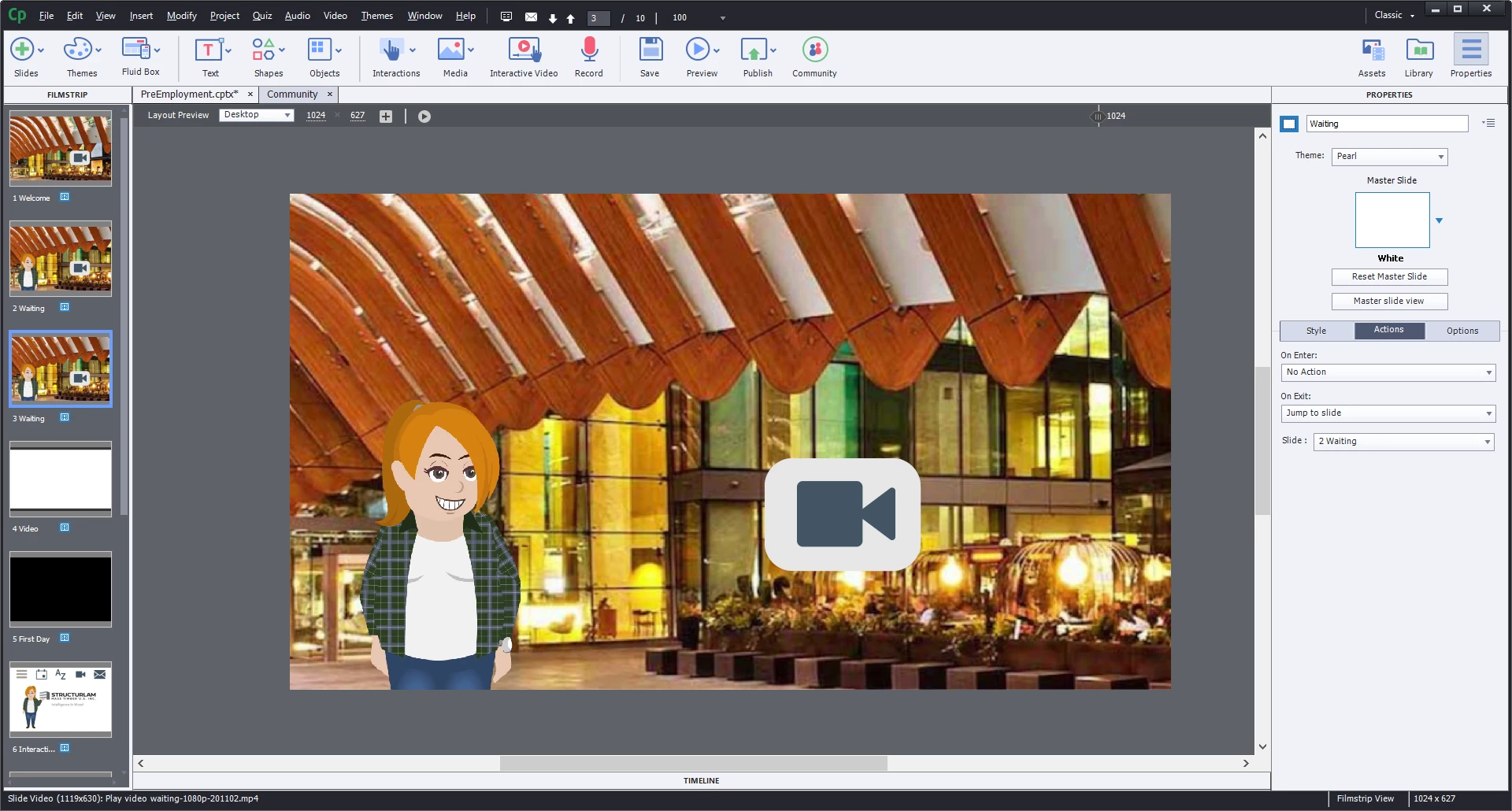

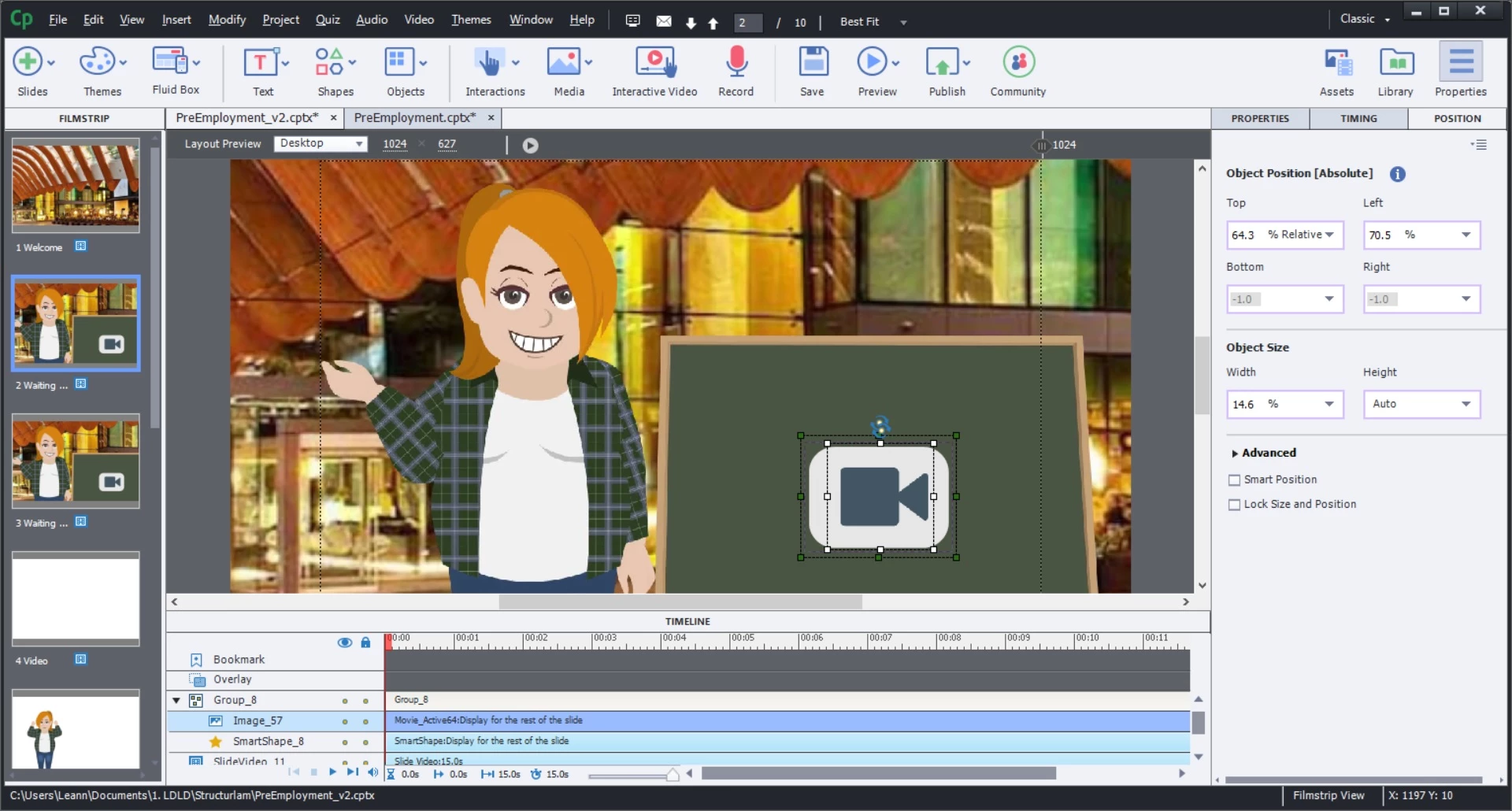

Destop view

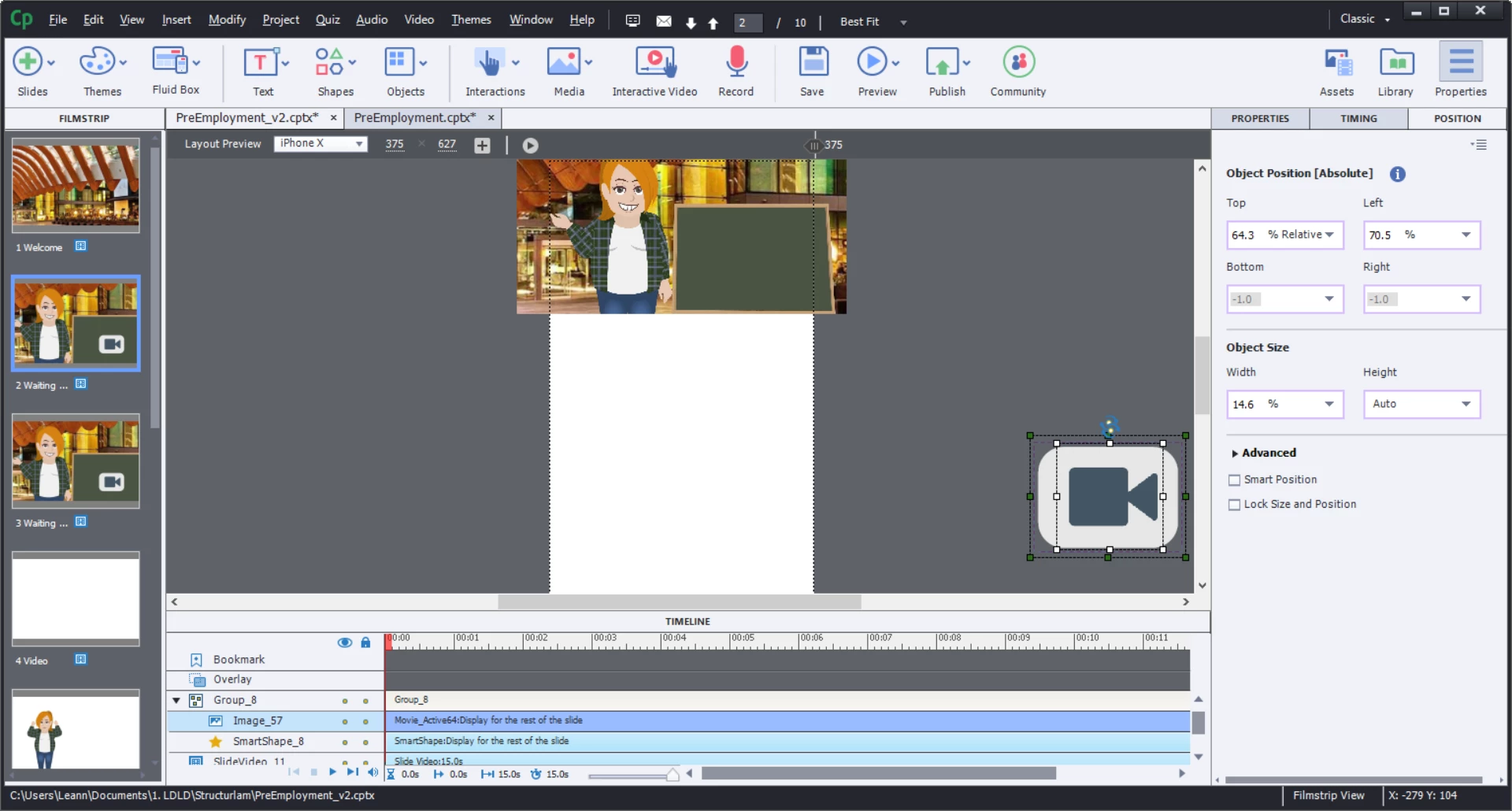

Phone view



2. I want to loop a slide until the user clicks a button. There is a video playing on the slide. I created 2 slides that are identical and the second slide should loop to the first one on exit. It works for 1 loop but then it just continues to the next slide. Randomly it will work properly (without me changing any settings).





Any suggestions? Thanks in advance for any help.

Leanne

    This topic has been closed for replies.

    1 reply

    Lilybiri
    Lilybiri
    Legend
    November 18, 2020

    Hmm... by default Responsive projects mean Fluid Boxes workflow. But I don't see any fluid box in the Timeline. If you switched over to Breakpoints, the UI should have been different.

    Did you take any training about using Fluid Boxes?

    L
    LMD4213Author
    Inspiring
    November 18, 2020

    Hi Lilybiri,



    Thanks for replying.



    I have done the training in the Captivate certificate program.



    I have 1 fluid box on the slide.



    But GOOD NEWS! When I ungrouped the button (I had an image and a shape behind it), it worked! Strange and I don't understand why that fixed it. Maybe a bug?



    Any suggestions with the looping. I watched your video about creating a loop but it required the user to click to make the loop happen. I want to loop UNTIL the user clicks.



    Thanks

    Leanne

    Lilybiri
    Lilybiri
    Legend
    November 19, 2020

    Sorry but I was not really awake anymore yesterday.

    I see now on your screenshots that you are busy with a slide video! You cannot have a slide video inside of a Fluid box. That is the reason why I told you immediately that the Timeline shows nothing in a Fluid box. You need to have that video on a slide set up with Position Properties, without fluid boxes.

    That is a serious limitation of course for the responsiveness. Youwil also need to set up any other object with those Position Properties on that slide.



    BTW, but now off topic: you cannot stack items in a normal fluid box, only in a static fluid box. You cannot group items in a fluid box. And you did't know that only event video is possible in a fluid box. Certfication training: introduction to multitude of aspects, but not in-depth training at all.



    Moreover: avoid mulitple obhects when it can be done with one object. Use a shape filled with an image instead of an image on top of a shape:

    http://blog.lilybiri.com/turn-an-image-into-a-button

    It is a bit older blog... which means that this was already possible many years ago (since version 6)
