March 6, 2014
Question

Timelines and items checked as visible not showing up

  • March 6, 2014
  • 1 reply
  • 1661 views

I decided to simplify a project and make better use of the timeline instead of making every part of a topic a new slide. When I hit the timeline arrow or scrub through the slide, everything shows up and looks great. Yet when I preview the project, the slides are flat and don't have any of the stepped in objects I so carefully positioned. The objects are smart shapes, images and highlight boxes. Some of them I cut and pasted in. I know about how timelines work and have successfully published Premiere Pro projects. The visible in output box is checked for single item. Any ideas on why this isn’t working?

This topic has been closed for replies.

1 reply

Varun Kalra
Varun Kalra
Participating Frequently
March 6, 2014

Hi there,

Do the timing of those objects have a good enough duration in accoradance with the timeline?

Are those objects being hidden by any other object or image, because the top object in timeline will be in the front on the stage, and the bottom object on the timeline will be behind all other objects.

Are you using any effect on objects?

Can you attach a screen shot of your timeline?

Thanks.

A
acdowdAuthor
Known Participant
March 6, 2014

Hi Varun,

Is 4.8 sec enough duration time?

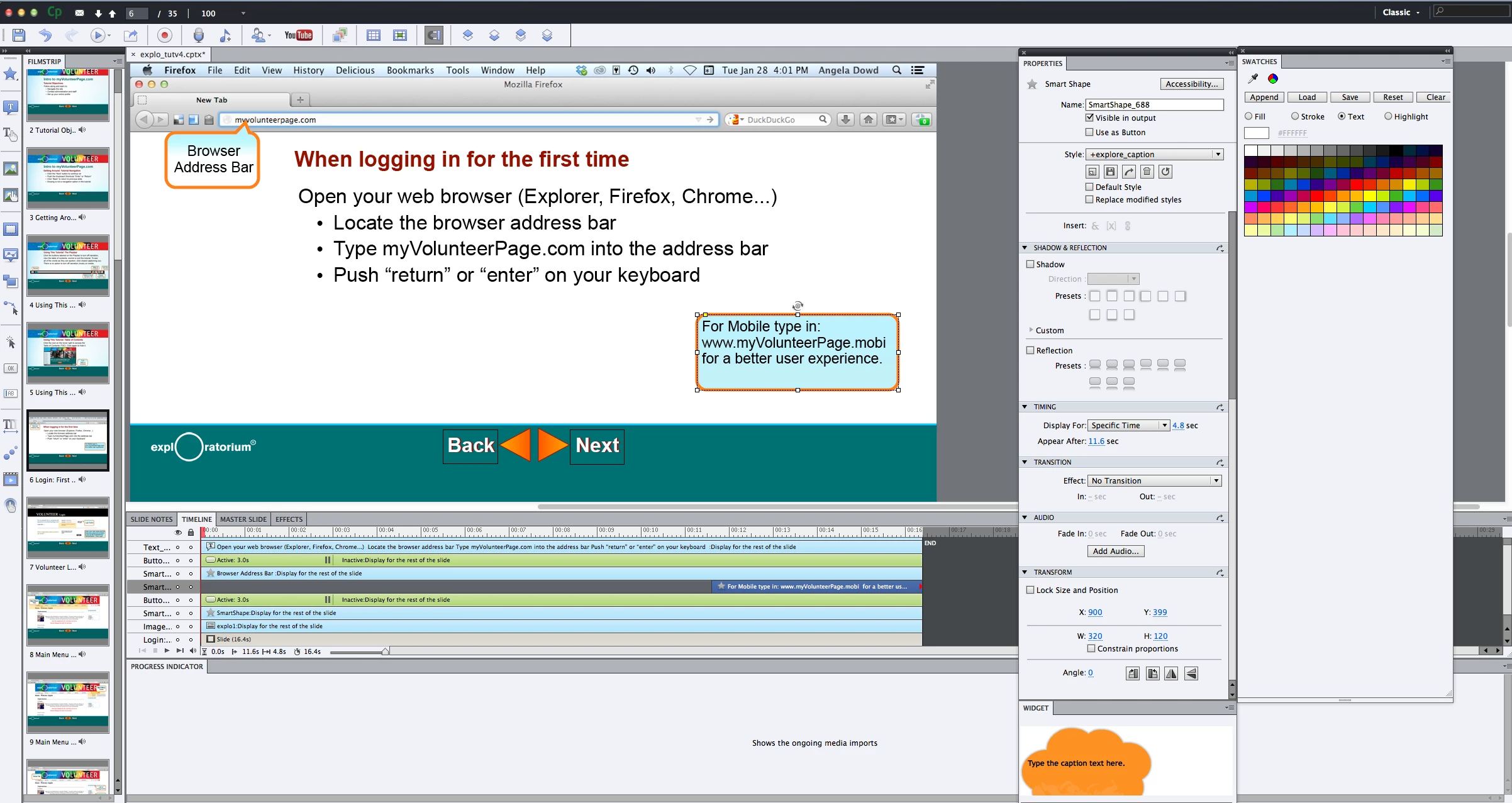

This object is not being hidden. I'm sending one of the simpler screenshots...others are more complicated but since the caption (about mobile) isn't showing up on this one then it's probably the same problem.

I've used simple objects with no effects. This is the first project I have created in Captivate so I'm keeping it simple and as a demo. One thing that gets me is the way smartshapes are given numbers...what does this mean? Could cutting and pasting a smart shape (caption) from one slide to another be causing a problem? I created my own theme, styles and template.

Any help would be much appreciated!

Angela

Captiv8r
Captiv8r
Legend
March 6, 2014

HI there

Look at your timeline. Specifically the buttons. See those pause points at the Three second mark? The playhead is stopping there and never reaching the 11.5 second mark where your object appears.

Try adjusting the pause points for the button so they are pausing after perhaps 12 seconds.

Cheers... Rick
