Some further comments on rob days valuable explanations in #2, which are absolutely

correct, in my opinion:

The set of Pantone Coated inks, which are premixed colorants, printed on reasonably

white paper, represents practically all possible surface colors.

These ink colors are now defined (after many unhappy attempts with CMYK) by CIELab,

which is called Lab in Photoshop.

Not all of these colors can be shown correctly in sRGB and in aRGB (Adobe RGB), the

two very common color spaces.

For package design, really printed by Pantone inks, it might be important to show these

colors in a preview as good as possible.

'Normal' monitors have the standard gamut (color volume) sRGB, some have the extended

gamut aRGB, for instance some EIZO monitors. These can be used in different modes:

1. Emulate sRGB (important for uncalibrated Web images).

2. Emulate aRGB (important for improved image processing in advance to offset printing).

3. Using the generic color space of the monitor, whích is probably only confusing.

For package design, using Pantone and a white substrate, mode 2  is recommended.

In either case it's perhaps interesting, which Pantone colors are out-of-gamut for sRGB and

alternatively for aRGB. That can be seen in this doc:

http://docs-hoffmann.de/swatch16032005.pdf

On the first pages are swatches with Lab-, sRGB- and aRGB-values. If any R,G,B-value is less

than 0 or greater than 255, then this color is out-of-gamut for the respective color space and

for the respective monitor mode as well.

Pages 15 and 16 are showing summarized versions of these considerations.

The doc is not authorized by Pantone and it does not contain the most actual Lab data (which

are always drifting, as times are changing...),  it had been made for tutorial purposes.

Printed on colored substrate nothing as explained above will be valid (a matter of experiments).

It is not recommended, to use Pantone Coated swatches as design guides for CMYK printing.

Best regards --Gernot Hoffmann

Dell's business model is to pump up the paper specifications at the lowest possible price. That means cutting corners where it doesn't show up on the spec sheet. That's actually most of the things that really matter, like panel uniformity, shadow and highlight separation, etc.

The volumes they sell this way more than makes up for the inevitable customer complaints.

When it comes to monitors for critical work, your choice is Eizo or NEC. People complain that they're expensive, but they aren't. The others are cheap.

This is an actual photograph of a Dell U2713:

editing (industry packages) and we are using only solid coated pantones.

Starting with CS6 there are separate libraries for Pantone's Solid ink colors (the PANTONE+ Solid library) and process CMYK simulations of the solid inks (PANTONE+ Bridge).

If you are using the PANTONE+ Solid libraries the swatches are defined as device independent Lab values, which have been captured from the printed solid inks with a hardware device like a colorimeter.

The display of the Lab values is a direct conversion from the Lab color space into your system's RGB monitor profile, so the display accuracy depends more on how accurate the monitor profile is rather than the display itself (although a wide gamut monitor would help with Pantone colors that are out-of-gamut to standard RGB). The accuracy of the monitor profile depends on how the monitor is calibrated. So you should be shopping for a hardware calibrator along with the monitor.

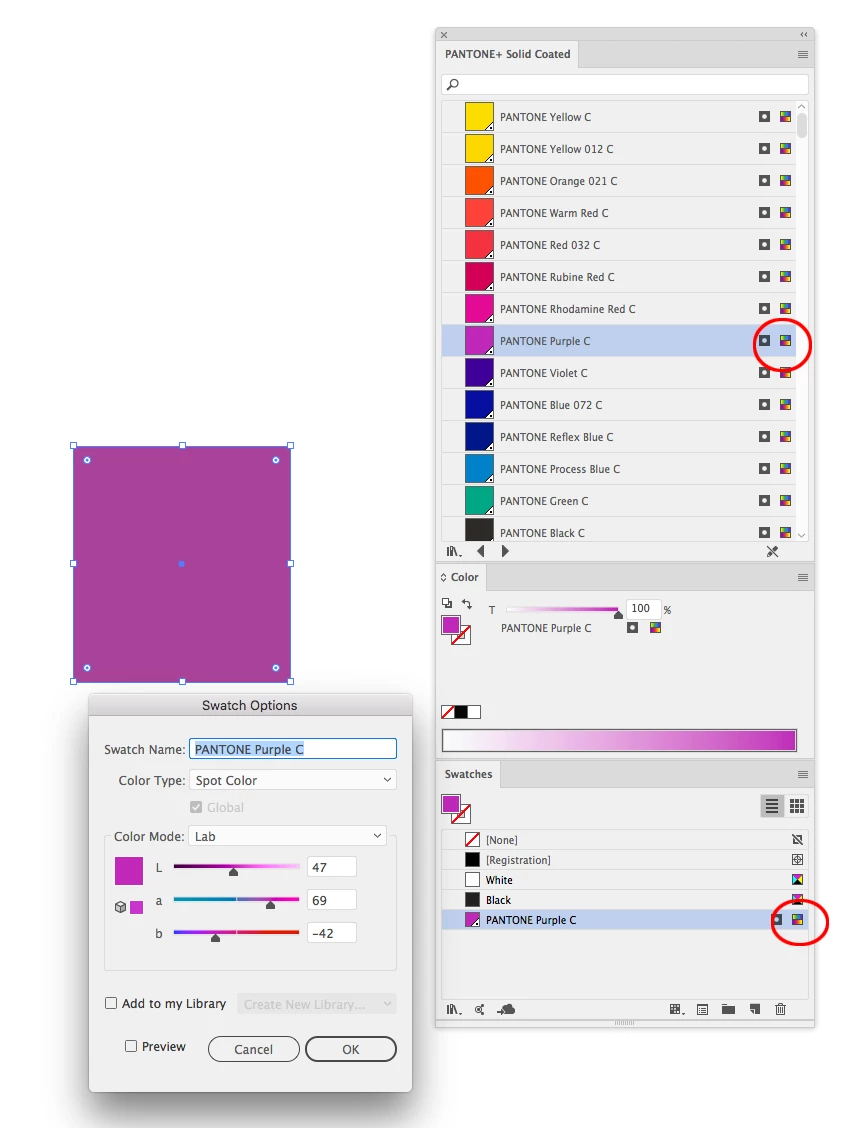

Here's Illustrator’s PANTONE+ Solid library—the swatch icons are Lab icons.

Hi ranl

I've not had good experience with dell in colourmanagement sensitive applications. Just my opinion.

Can you afford an Eizo Coloredge CG screen, that’s the way to go.

Any proper display screen can do 16.7 million colours - it’s the accuracy that’s the important thing.

Will your print jobs be done using special Pantone spot colour inks as additional colours?

If not and the "Pantone" colours will be made out of CMYK inks, then good luck if you expect a perfect match.

I hope this helps

if so, please do mark my reply as "helpful" and if you're OK now, please mark it as "correct" below, so others who have similar issues can see the solution

thanks

neil barstow, colourmanagement
