ID Color Map Baking Artifact Issue

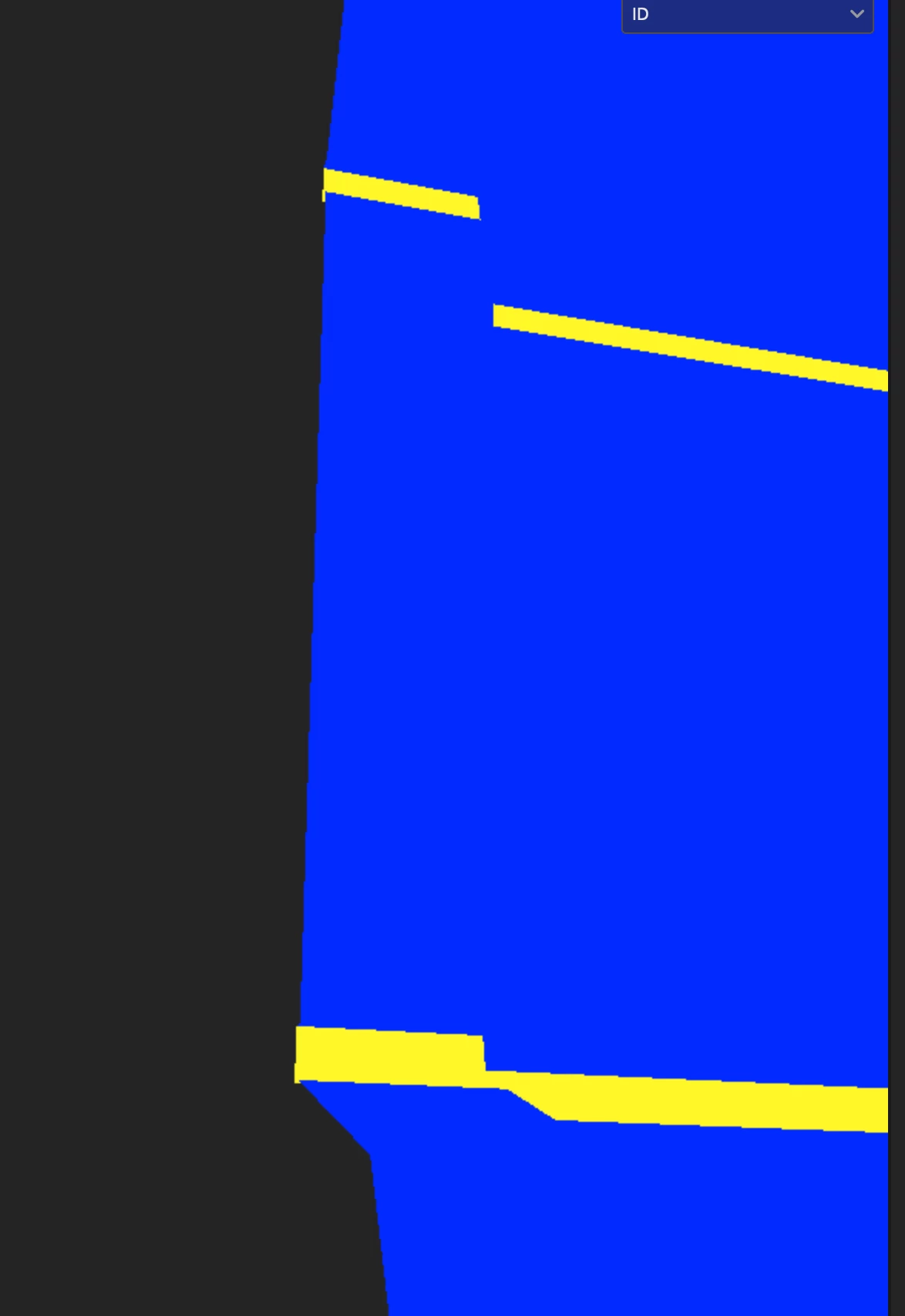

I created a high LOD and Low LOD version of a set of meshes using Blender.  All of the meshes share the same material.  When I bring into Painter and bake the ID map, I get a strange artifact when using the higher LOD file in the baking process.  If I eliminate the high LOD file, the artifact goes away.  If I isolate the one mesh out of the set and bake using the high LOD mesh, the artifact also goes away.  I made a video of the process here: https://youtu.be/JPoBf42IyzQ.



I've also attached the files.  Any help would be great!

This topic is closed to new replies. Start a new post to keep the conversation going.
Ira22187698juiqCorrect answer
Participant
Dec 13, 2021 12:51 PM UTC

In case anyone cares about this one, I found a solution although I'm not certain as to why it occurs.  I think because I have so many meshes spread out in this fbx, I had to clear "Relative to Bounding Box"in the High poly settings under baking.  I probably should try using a cage file, but instead I clear this and increases the distance front and back to 1.  that has fixed the problem.

View reply

2 replies

Ira22187698juiqAuthorCorrect answer
Participant
Dec 13, 2021 12:51 PM UTC

In case anyone cares about this one, I found a solution although I'm not certain as to why it occurs.  I think because I have so many meshes spread out in this fbx, I had to clear "Relative to Bounding Box"in the High poly settings under baking.  I probably should try using a cage file, but instead I clear this and increases the distance front and back to 1.  that has fixed the problem.

Translate
Ira22187698juiqAuthor
Participant
Dec 10, 2021 3:49 PM UTC

By the way, I'm using version 7.4.0 of Painter and 2.93.4 of Blender.
