Painter Triplanar Projection Problems with UV

6 replies
1629 views
Translate

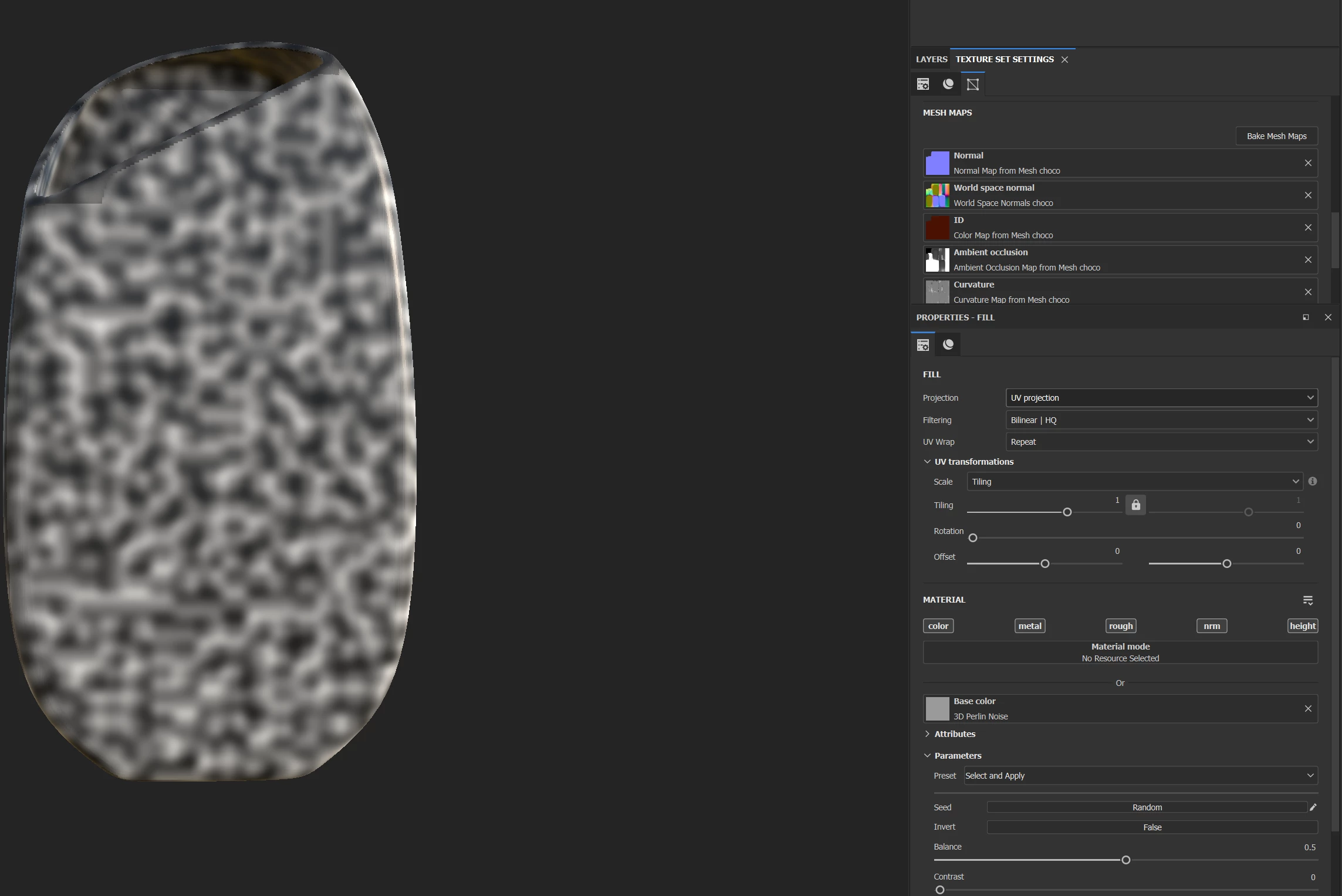

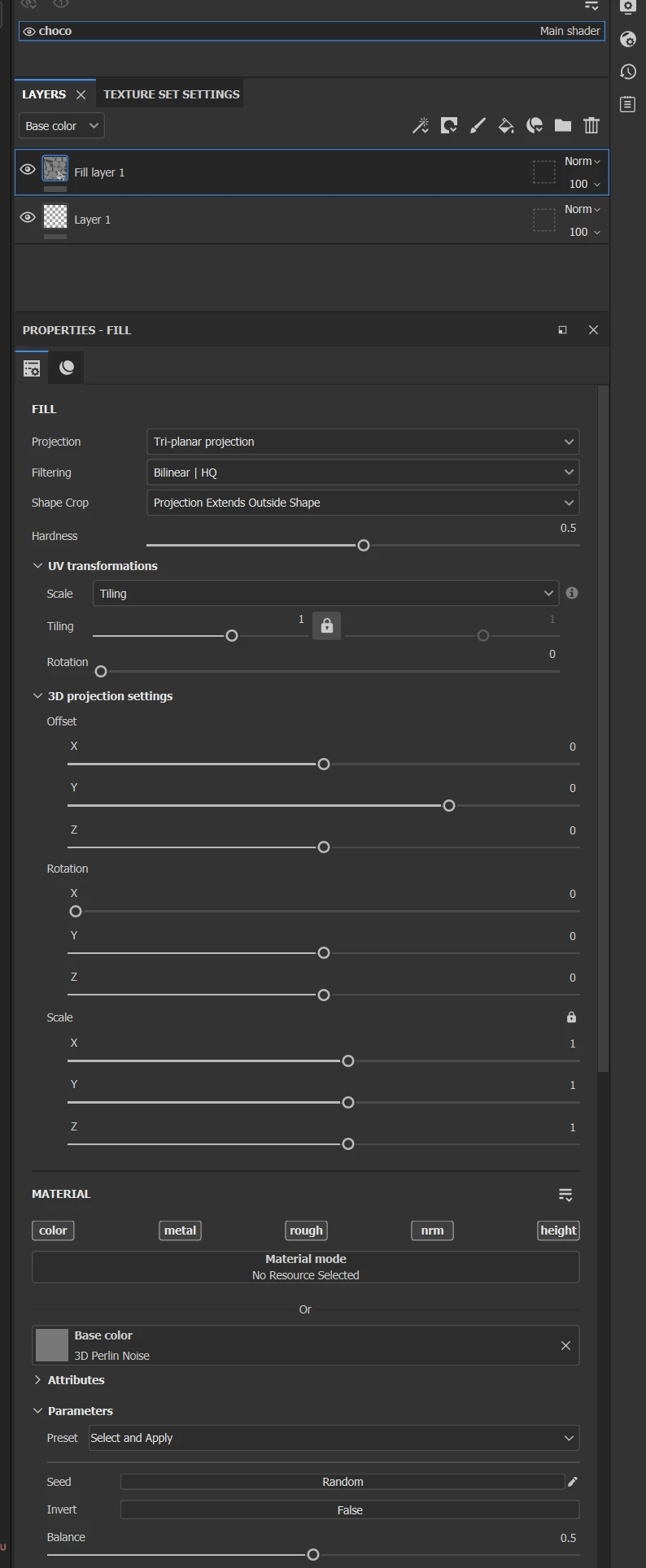

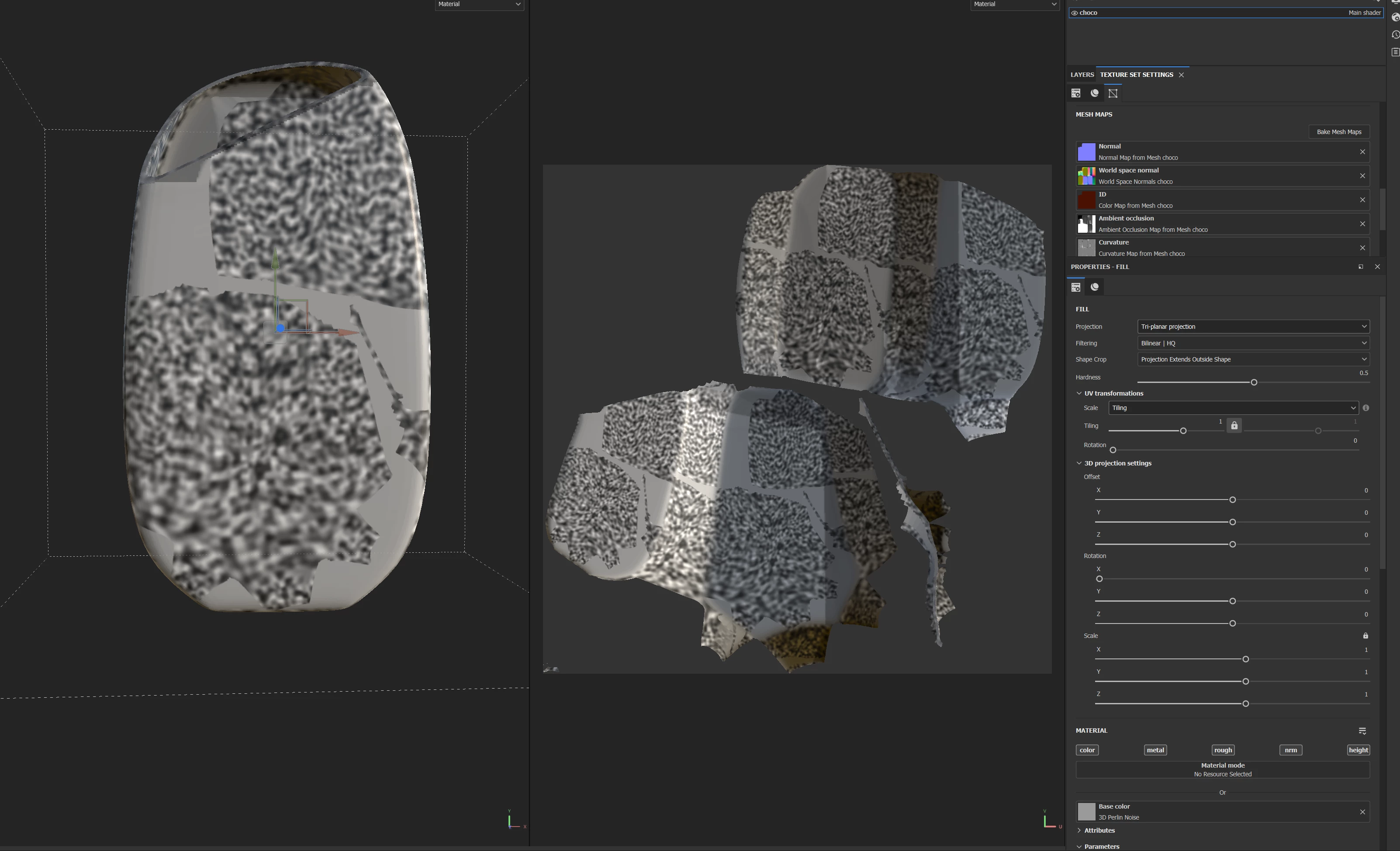

In the 1e picture I use Triplanar projection, But it is still using my UV maps. they are Generated with SP.
but also I have this problem with the UV made in my 3d Program.
What is wrong?

This topic is closed to new replies. Start a new post to keep the conversation going.

Cyril DellenbachCorrect answer

Community Manager

That's okay, no need of the .spp, the issue comes from the noise. The 3D Perlin Noise shouldn't be used with the Tri-planar projection, because it already uses the Position map to apply it in 3D.

You should either use the basic Perlin Noise with Tri-planar Projection or the 3D Perlin noise with a simple UV Projection.

Best regards,

Cyril Dellenbach (Micro) | Product Manager | Substance Painter

Cyril Dellenbach

Correct answer

Community Manager

That's okay, no need of the .spp, the issue comes from the noise. The 3D Perlin Noise shouldn't be used with the Tri-planar projection, because it already uses the Position map to apply it in 3D.

You should either use the basic Perlin Noise with Tri-planar Projection or the 3D Perlin noise with a simple UV Projection.

Best regards,

Translate

Cyril Dellenbach (Micro) | Product Manager | Substance Painter

G

grafimedia-amsterdamAuthor

Participant

Thanks , 2e day In Painter.;-))

Translate

Cyril Dellenbach

Community Manager

Hello @grafimedia-amsterdam,

This is definitely unusual. Could you share a little bit more infos? Can I see your layer stack, or could you even share the Substance Project, so I may investigate on my side?

Best regards,

Translate

Cyril Dellenbach (Micro) | Product Manager | Substance Painter
