Substance 3D Painter gravity sketch model weird mesh

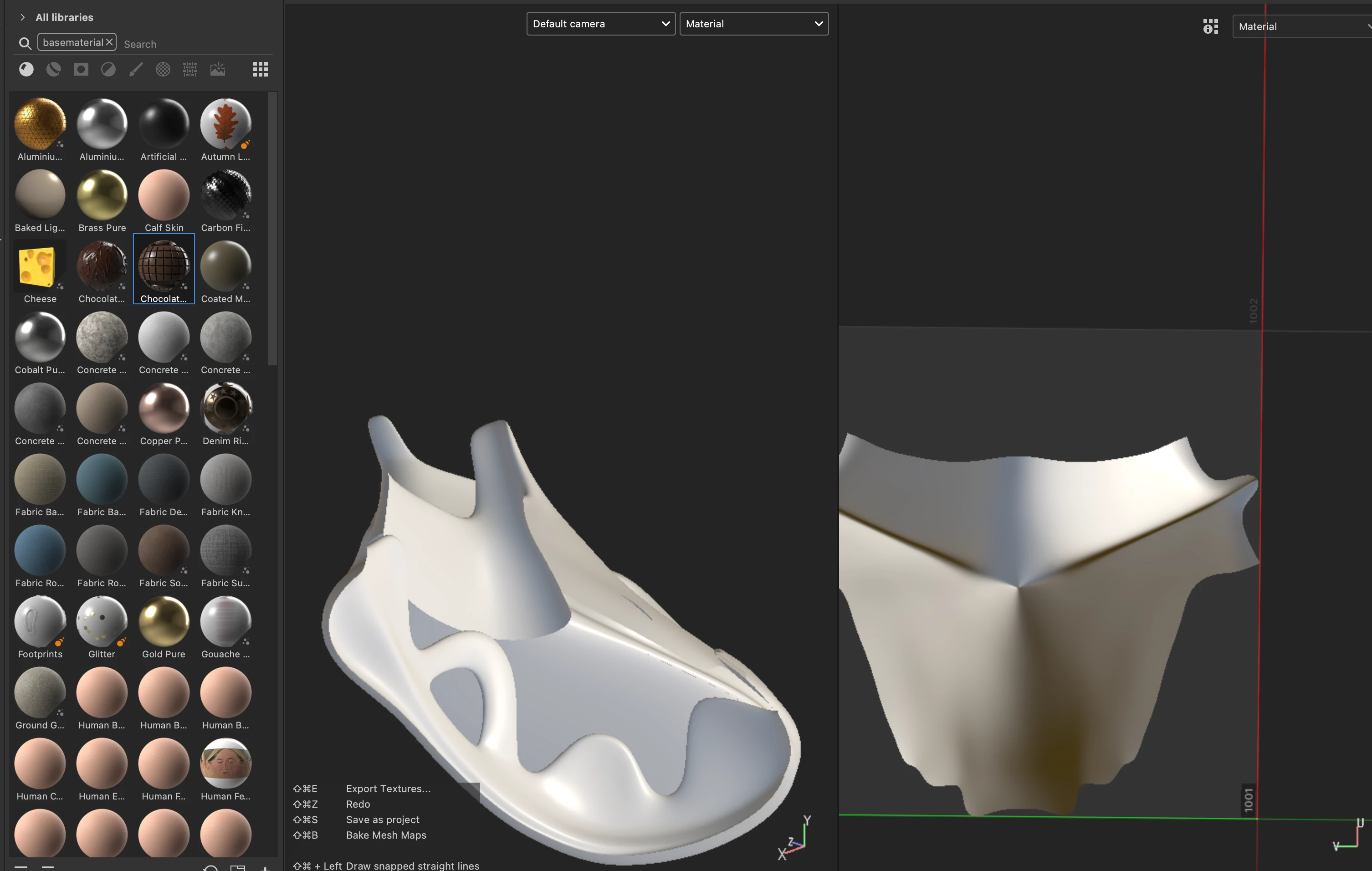

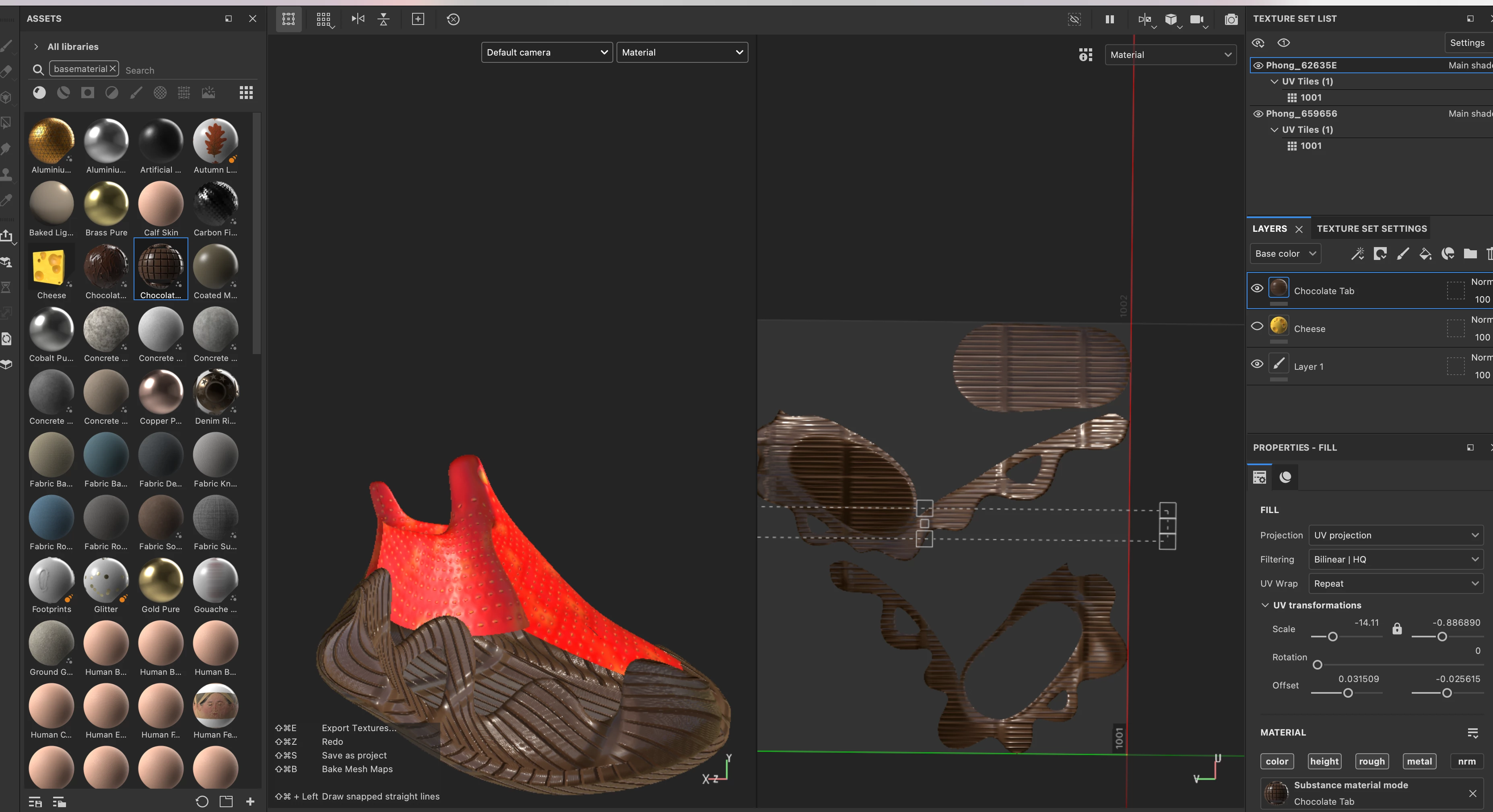

Hello! I am having issues when loading a FBX file from gravity sketch into Substance painter. Something is going on with the mesh. See images below. Once I export to Substance Stager the mesh is visible. I can still drop in materials but for some reason the exterior face of the mesh is not visible.

This topic is closed to new replies. Start a new post to keep the conversation going.

6 replies

GeoffroySC
Community Manager
GeoffroySCCommunity Manager
Community Manager
Mar 22, 2022 3:15 PM UTC

Hi,

You have inverted normals; you need to edit them in your DCC to have them point outward.
Would you be so kind as to share your model? This would allow me to check how other software treats model normals coming from gravity sketch.

Thank you,

Kind Regards,

Geoffroy SC

Translate
Jorge23691523ob1rAuthor
Participant
Mar 22, 2022 4:56 PM UTC

Hi Geoffroy,



Thanks for your help. Can you clarify what you mean by editing the file in DCC? I have attached the model. The model mesh looks/workds just fine in Blender and substance stager.

Translate
Jorge23691523ob1rAuthor
Participant
Mar 22, 2022 4:57 PM UTC

I have attached the FBX model.

Translate
