Adobe Dimension - Placing a decal over multiple linked surfaces

Forum|Forum|7 years ago
September 4, 2018
2 replies
4387 views

I created a 3D model of a microphone, and I'm trying to apply a decal of grill detail to a bunch of separate surfaces. But the surfaces are acting a little bipolar. On one hand I can apply different materials to each area. But when I try to use a decal it treats them all as a single surface.

I started out with a small strip of grill artwork and tried adding it to each section. Then I made one big graphic to try and paste it into all of them together. Either way, it only shows the decal in one of the linked sections.

This topic has been closed for replies.

Correct answer danielk53774669

I tried selecting multiple grills but it behaves the same. When I apply a decal it's only visible in one.

FYI, my workflow is like this:

Use Illustrator to create vector profiles of the parts, then assemble in Photoshop. This piece is a little more complex (for me anyway) since the grills don't go all the way around. I created two objects in PS from a grouped Illustrator vector, and revolved each 90°.

The problem was in trying to apply the surface in Dimension. It can't seem to decide if it's one object or a group.

I found a solution in building a new material and applying it.

Ussnorway7605025

Legend

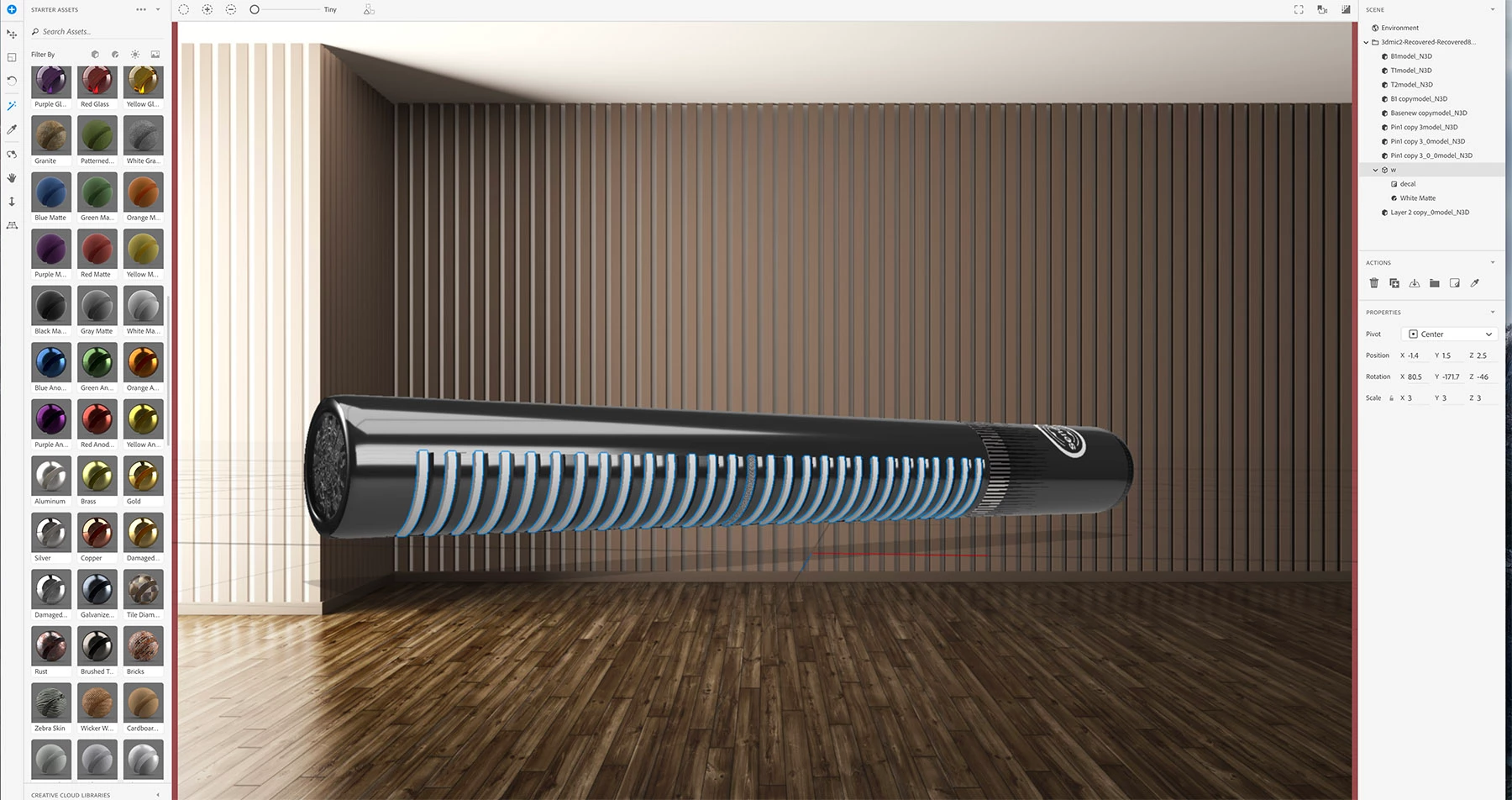

in the screenshot you only have one grill selected so Dimension only applies it to one part of the model so for example if you want 5 of the grills to be rusty then you can [shift] click the five parts {or group them} and then click on your rust material to make them all have the same texture however Dimension can only apply one decal per model (a hard limit at this stage) so in this senario i would rendor it out as a psd and do the decal in Photoshop

another option would be to make the grill i.e, only the five parts of it that you want to decal as their own Obj in Photoshop (or Blender | whatever) and import that into Dimension as a new model to add your decal to... if the decal is something like plasic stickers that light passes then I'd use this option but otherwise Photoshop will do a better job ime

p.s, it a nice youtube

D

danielk53774669AuthorCorrect answer

Participant

I tried selecting multiple grills but it behaves the same. When I apply a decal it's only visible in one.

FYI, my workflow is like this:

Use Illustrator to create vector profiles of the parts, then assemble in Photoshop. This piece is a little more complex (for me anyway) since the grills don't go all the way around. I created two objects in PS from a grouped Illustrator vector, and revolved each 90°.

The problem was in trying to apply the surface in Dimension. It can't seem to decide if it's one object or a group.

I found a solution in building a new material and applying it.
