Question

Adding a graphic frame to a reference frame outside the column

  • February 11, 2021
  • 2 replies
  • 247 views

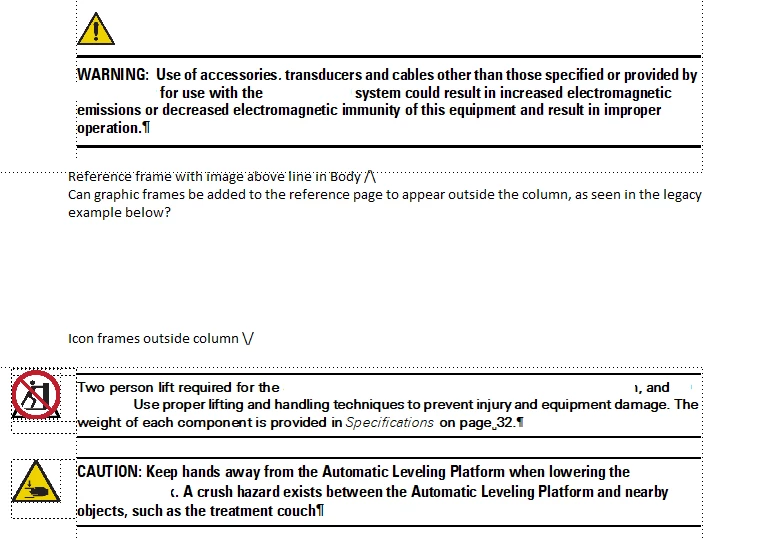

Is it possible to add a graphic frame to a reference frame so that the graphic appears outside the column, next to the text, rather than above or below it? In the current template, images are placed in an anchored frame outside the column next to the text. I'd like to "automate" the process by adding a graphic frame to the reference frame containing the lines. Attached images may help illustrate my question.

    This topic has been closed for replies.

    2 replies

    Community Expert
    February 12, 2021

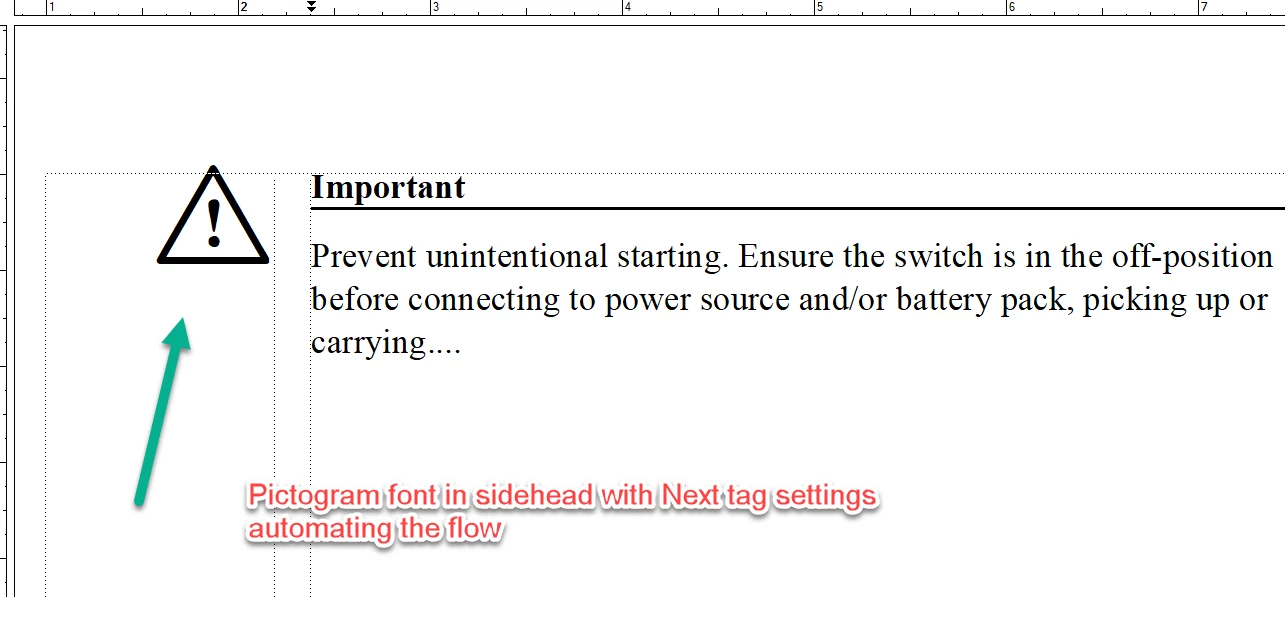

    Another option is using pictogram fonts. This is the free font "Tables". The page setup uses Sidehead. A paragraph tag with the Tables font sits in the Sidehead.When you press Enter, the Next Tag settings leads you to the warning text tag and from there to the body text tag.



    Bjørn Smalbro - FrameMaker.dk
    Barb Binder
    Community Expert
    Community Expert
    February 11, 2021

    Hi Lisa:



    That doesn't work, unfortunately. But you could create the alert box with the anchored frame sitting outside the column on the reference page. And then put both into a named graphic frame. (Create one for each alert type.)



    This will allow you to quickly add the alert message by assigning a paragraph style using rule above paragraph or rule below paragraph. But the referenced frame will be inside the template frame, no matter what.



    You could define a side-head column to make it look like it is outside of the frame, however, and set the paragraph style to Across all Columns and Side-heads.

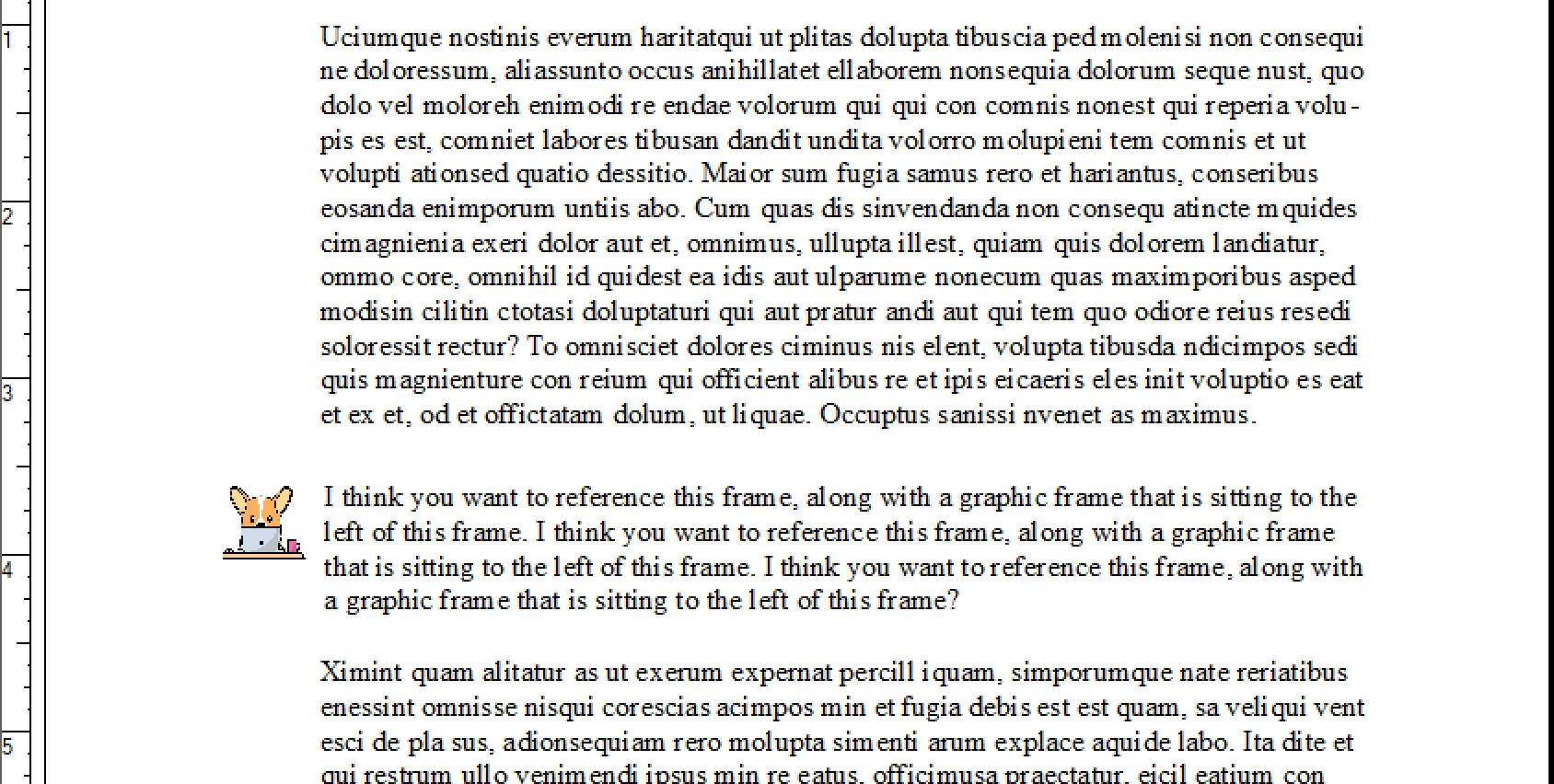

    Borders visible

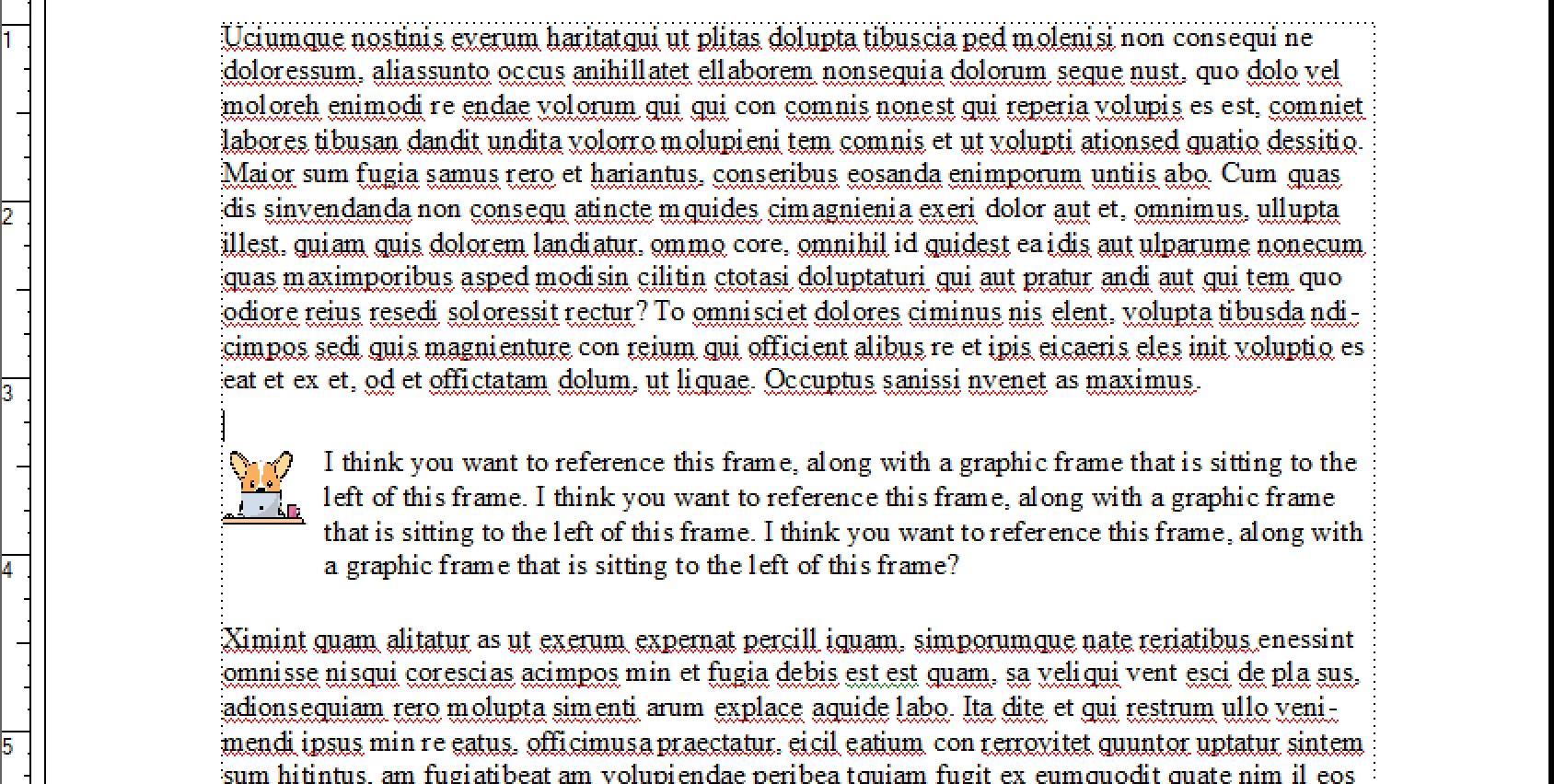

    Borders hidden
