Hello Community,
Need help on how to add <$paranum> to the autonumbering definitions of tables and figures in an ustructured FM file.

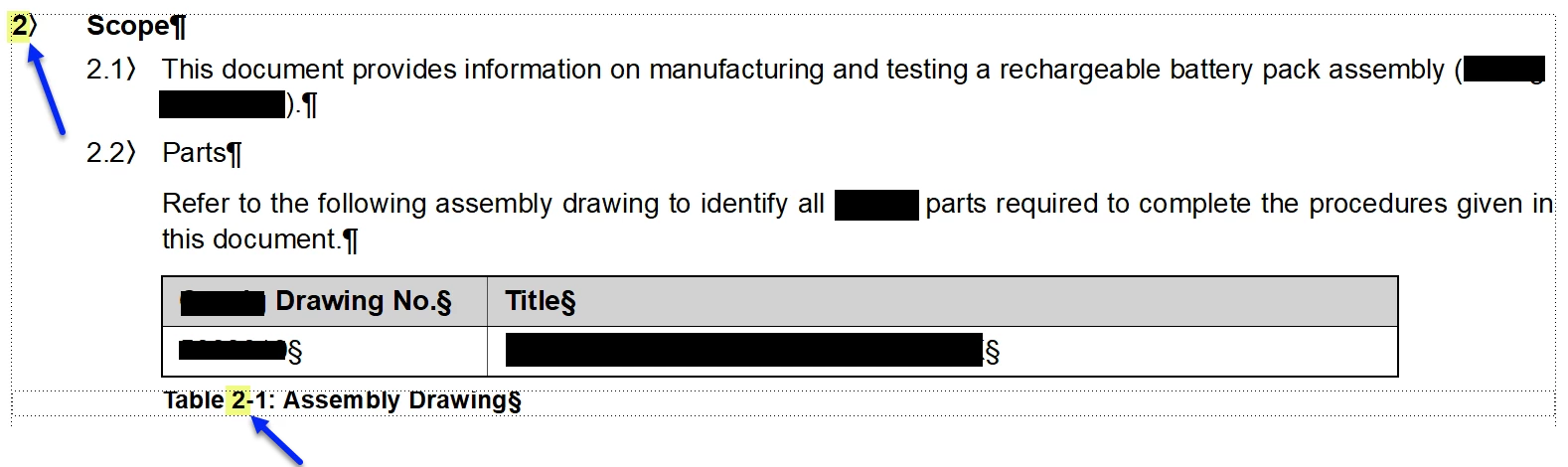

I need the Tables and Figures inherit the paragraph number where they are located. See graphic below.
T:Table 2-<n+>:
Do I need to make a book?
Thanks in advance.
Basically my question is, is this possible without splitting the file into chapters or sections? Thank you!
Here is an example for a system without <$chapnum> and therefore without splitting documents:
H1
<n+>< =0>< =0>< =0>< =0>
H2
<n>.<n+>< =0>< >< >
H3
<n>.<n>.<n+>< >< >
Figure
<n>< >< >-<n+>< >
Table
<n>< >< >-< ><n+>
This means in my example:
You do not have any series labels.
The first 3 counters are for headings.
The numbering for heading1 resets all other counters.
Counter 4 is for figures. The counter for heading1 is shown, but not changed.
Counter 5 is for tables. The counter for heading1 is shown, but not changed.
When there is < >, the counter is kept, but not changed.
