Book Error Report when creating Index

  • October 19, 2018
  • 2 replies
  • 516 views

It's been a while since I have had to create an Index for a manual. I created it and wanted to use the page number formats that I have throughout the manual (example: 1-2 which displays chapter number and page number). It was only displaying page numbers and no chapter numbers. I had tried importing formatting from an existing Index in another manual. This didn't fix the issue. So I went into View>Reference Pages and added <$chapnum>- before the <$pagenum>. This still didn't fix the issue after clicking Update Book. After that, I received an error message "Book Error Report" which displaed the file for the book and it's location on our server. Under that it said "No master pages applied because the MasterPageMaps table contains no mapping information."

I tried to do a search in this forum and in Help Topics but cannot find any information. So how do I fix the issue listed in the book error message and how can I fix my page numbering issues to include the chapter number-page number? I should mention that I am using an old version of Framemaker....version 11.

    This topic has been closed for replies.

    2 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    November 24, 2018

    Hi Christine:

    I was able to take a look at your files and discovered two different issues—both of which would prevent this from working as expected.

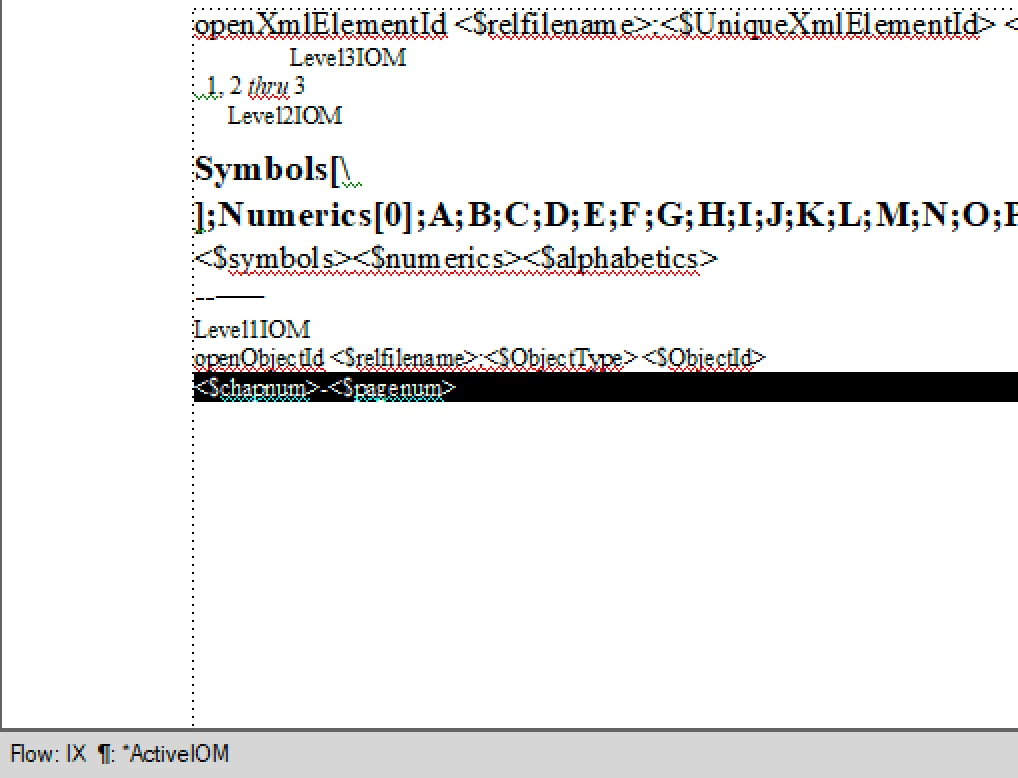

    The first thing I found is that your <$pagenum>-<$chapnum> paragraph was not using the expected tag name. The ¶ tag name should be IndexIX and your is ActiveIX. I added the tag to the document and assigned it to your paragraph. (This might have fixed itself after you address the second issue, but I worked through your files in this order so I'm not sure.)

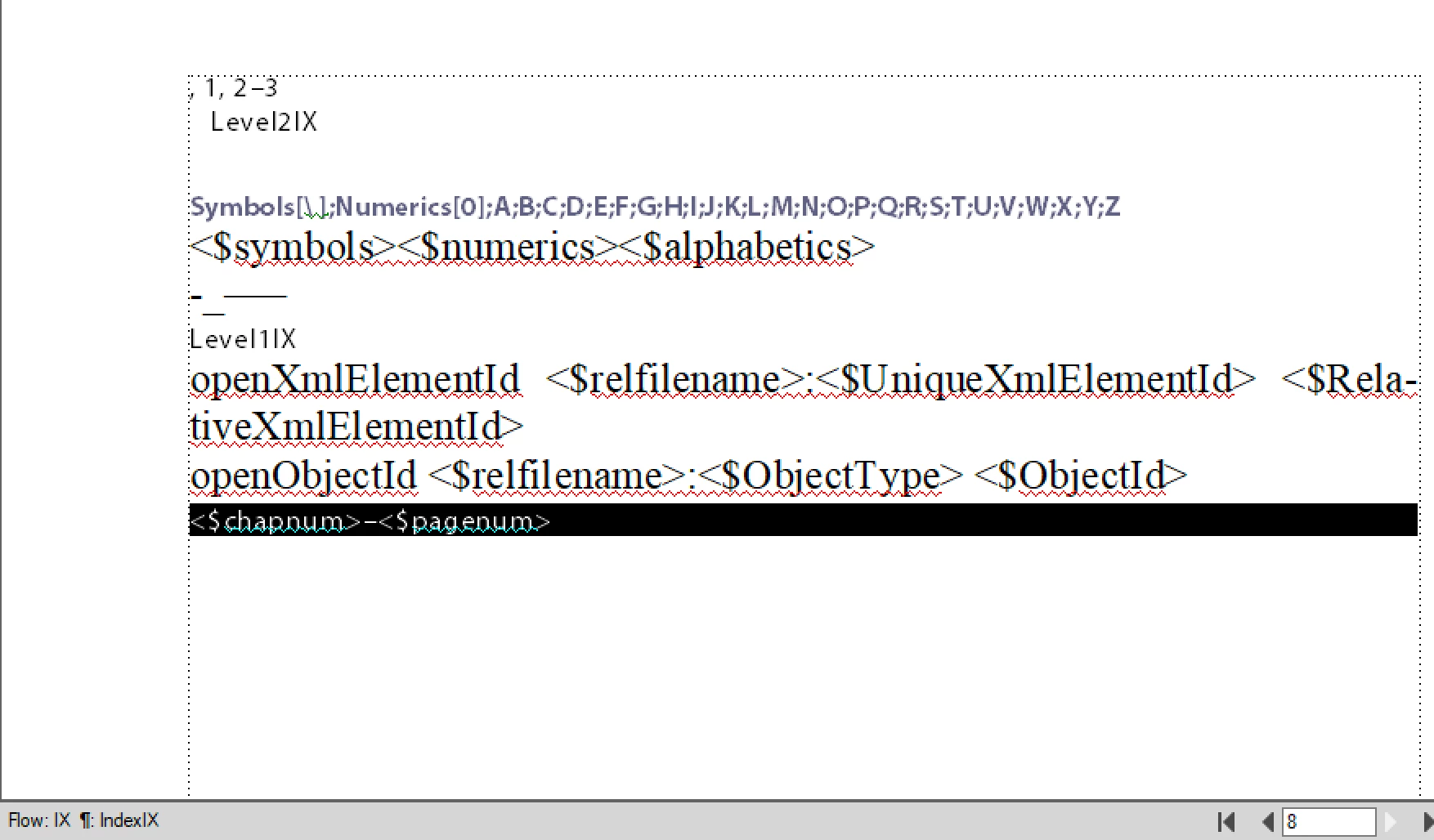

    This is a different index, showing the correct tag name in the lower left corner.

    The second, larger issue was that the index you sent was not a generated file that could be updated by FrameMaker. Generated files end in the suffix for that type of generated file: a generated index must match the book name and use the IX suffix.

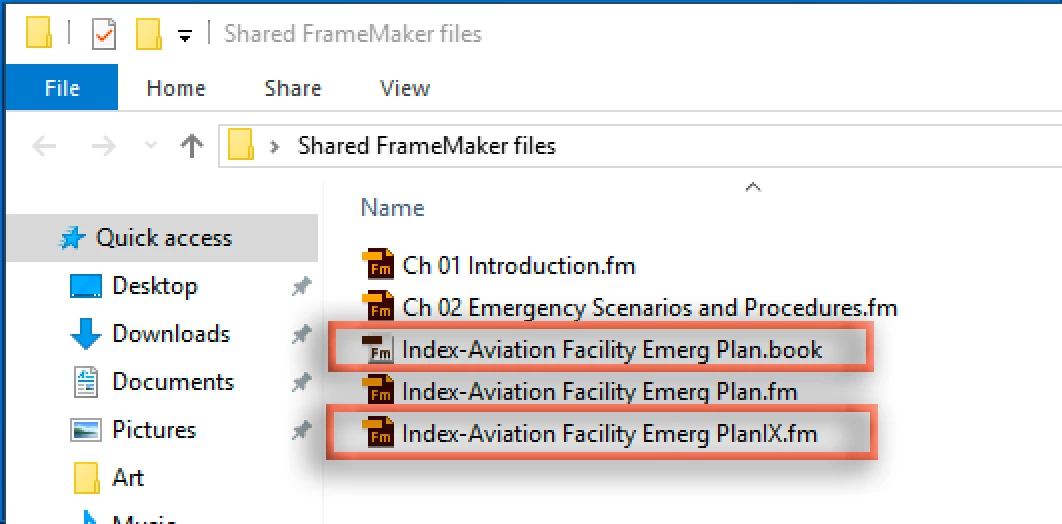

    These are the files you sent:

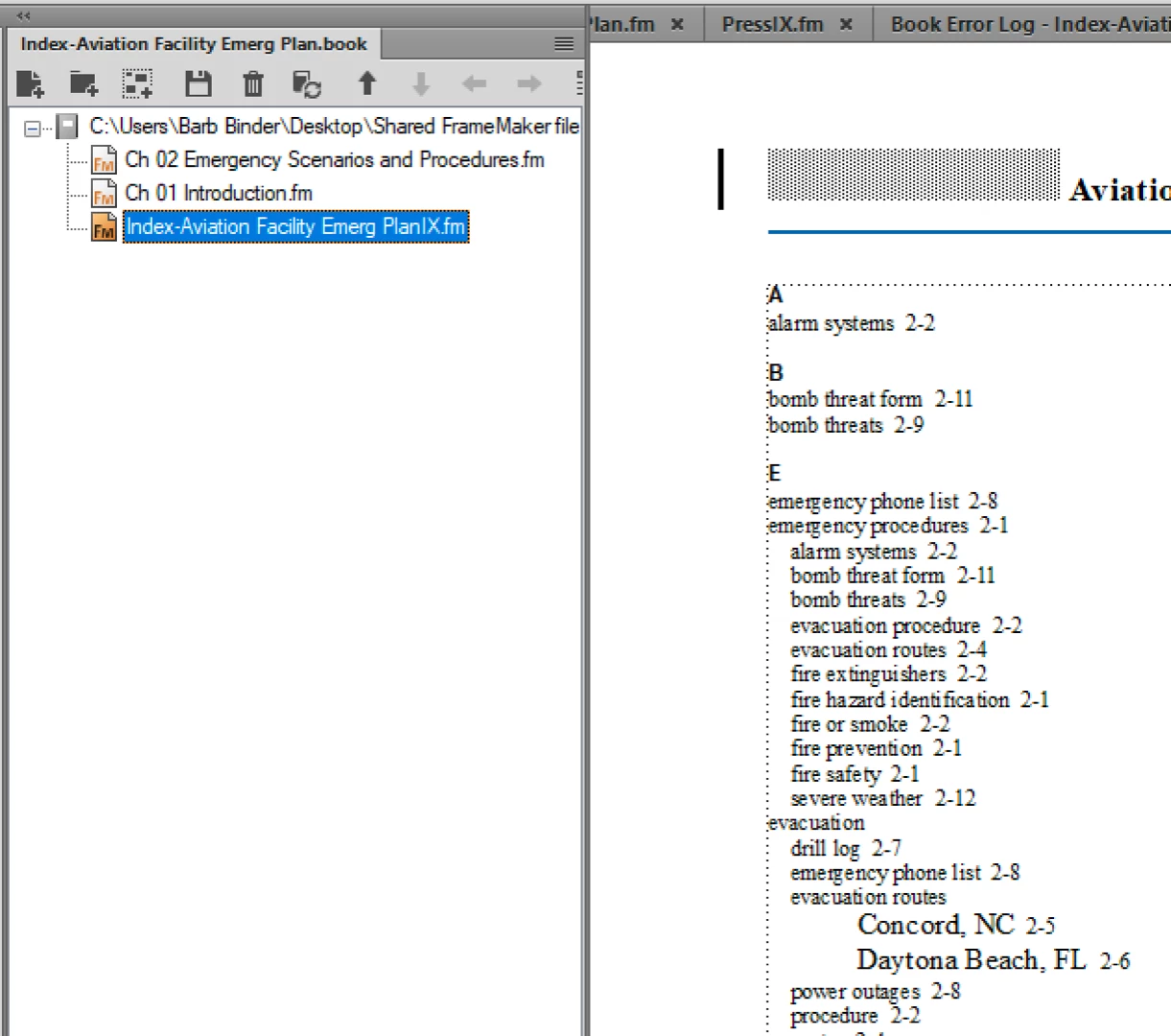

    Here are the files after I created a book file, removed your non-generated index and added it back into the book via Add >
    Standard Index.

    If the book name is Index-Aviation Facility Emerg Plan.book, then the index must be named Index-Aviation Facility Emerg PlanIX.fm. FrameMaker does this for you when you add the index to the book window through the Add menu.

    Since your book that likely does not use that exact name:

    1. In FrameMaker, remove the index from your book window.
    2. In Windows, rename your index to match the book name plus IX.fm (booknameIX.fm)
    3. In FrameMaker, add the index back into the book via Add > Standard Index

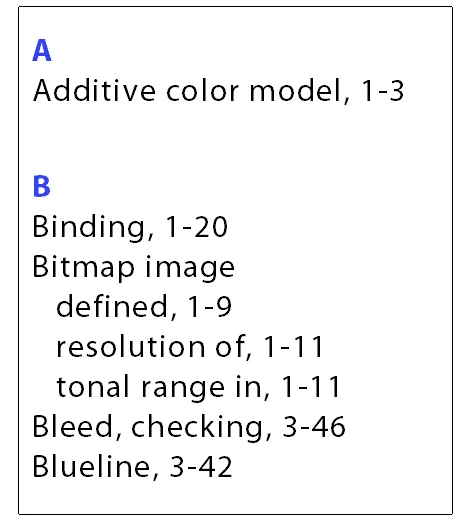

    4. Update the book and the numbers will update:

    One last note, the frame on the reference page was too short to show all of the building blocks. You will have to make it larger to show all of the building blocks after updating with the Select Object tool.

    Generated files require that we follow a strict set of rules. If we follow them (including creating them via the Add menu and not renaming any paragraph tags) they work beautifully. If we break any of the rules, they fall apart.

    ~Barb

    ~Barb at Rocky Mountain Training
    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    October 20, 2018

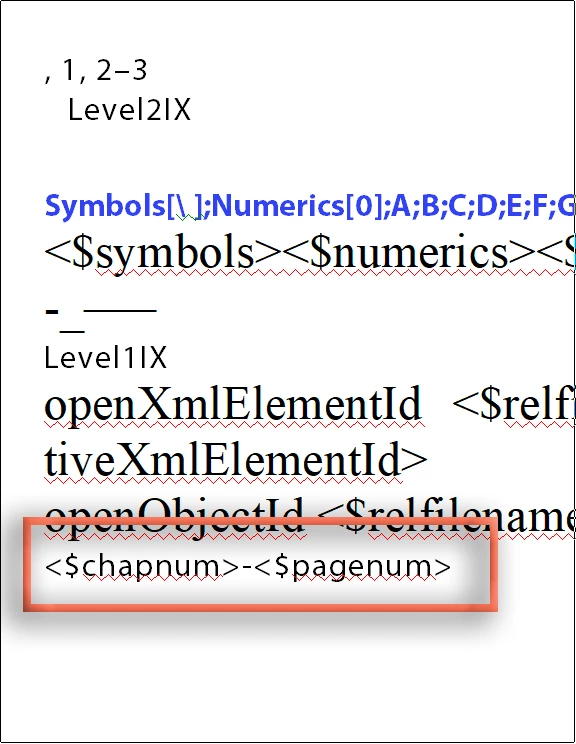

    You were on the right track, Christine. Go to the IX reference page and add <$chapnum>- in front of <$pagenum>. It should be the last line.

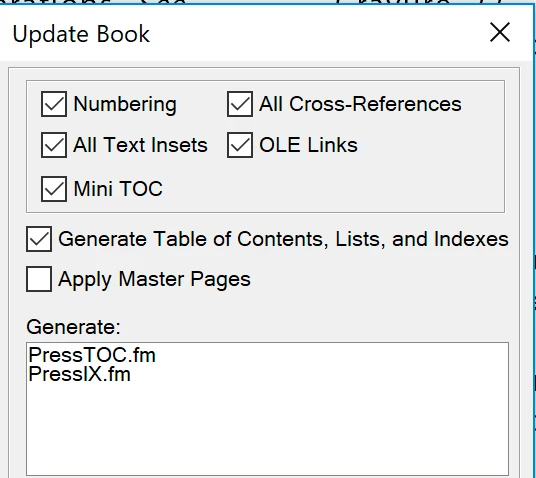

    The MasterPage mapping error is a red herring. It means you enabled the Apply Master Pages checkbox in the Update Book dialog box. Just uncheck it.

    ~Barb

    ~Barb at Rocky Mountain Training
    C
    ChristineSmith77Author
    Known Participant
    October 23, 2018

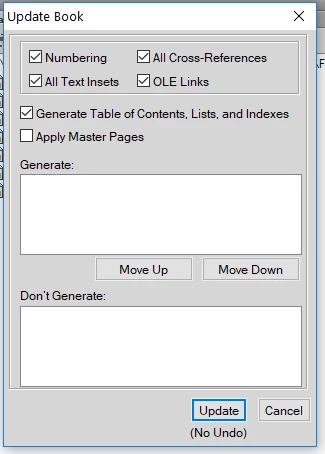

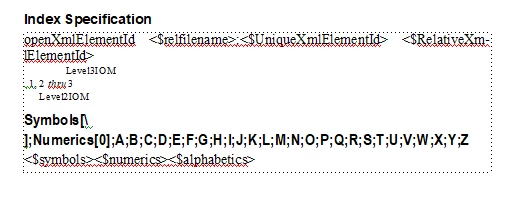

    Here is what's strange... the "Apply Master Pages" box was not check marked. I did notice that in the Generate box, it doesn't show the filenames that I am using for the TOC and IX. It's blank. The Index Specification reference page is spanning to two pages (likely because the info doesn't fit in the box on the first page so it created a second page itself. At the bottom of the second page it shows the <$chapnum>-<$pagenum>. I have no idea why it did it this way after I had it import formats from another document. See screen shot below.

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    October 23, 2018

    Are you still getting the master page mapping message with the checkbox off?

    You can consolidate the IOM building blocks by control clicking on the frame on the first IOM page and making it larger. Then you can delete the overflow reference page.

    I don't know if that will fix missing chapnum issue or not, but I'm happy to take a look at your file if you put the IOM file and one chapter file (even one page of the chapter file) on dropbox and message me the link.

    ~Barb

    ~Barb at Rocky Mountain Training
