J
Joe Hus
Known Participant
December 22, 2020
Question

Chapter numbers

  • December 22, 2020
  • 8 replies
  • 1773 views

Hi

I created a book  last  year with 22 chapters and it works  perfectly.  This week  I tried to edit it and  I found every thing except the  Chapetr numbers are  missing.

All reference  pages are  still intact.

I  also tried to import refeence  paes  from a  working book but everything is reormatted  except chapter numbers.



Can you help?



thanks

HR



    This topic has been closed for replies.

    8 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    December 24, 2020

    Thank you, @Joe Hus.



    Happy holidays,



    ~Barb

    ~Barb at Rocky Mountain Training
    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    December 23, 2020

    OK, @Joe Hus, as we expected, it was a master page issue. The template you are using was released in about 1997, and undoubtably numerous people worked on the template, and the files based on this template over the past 23 years.



    WHY IT WASN'T WORKING

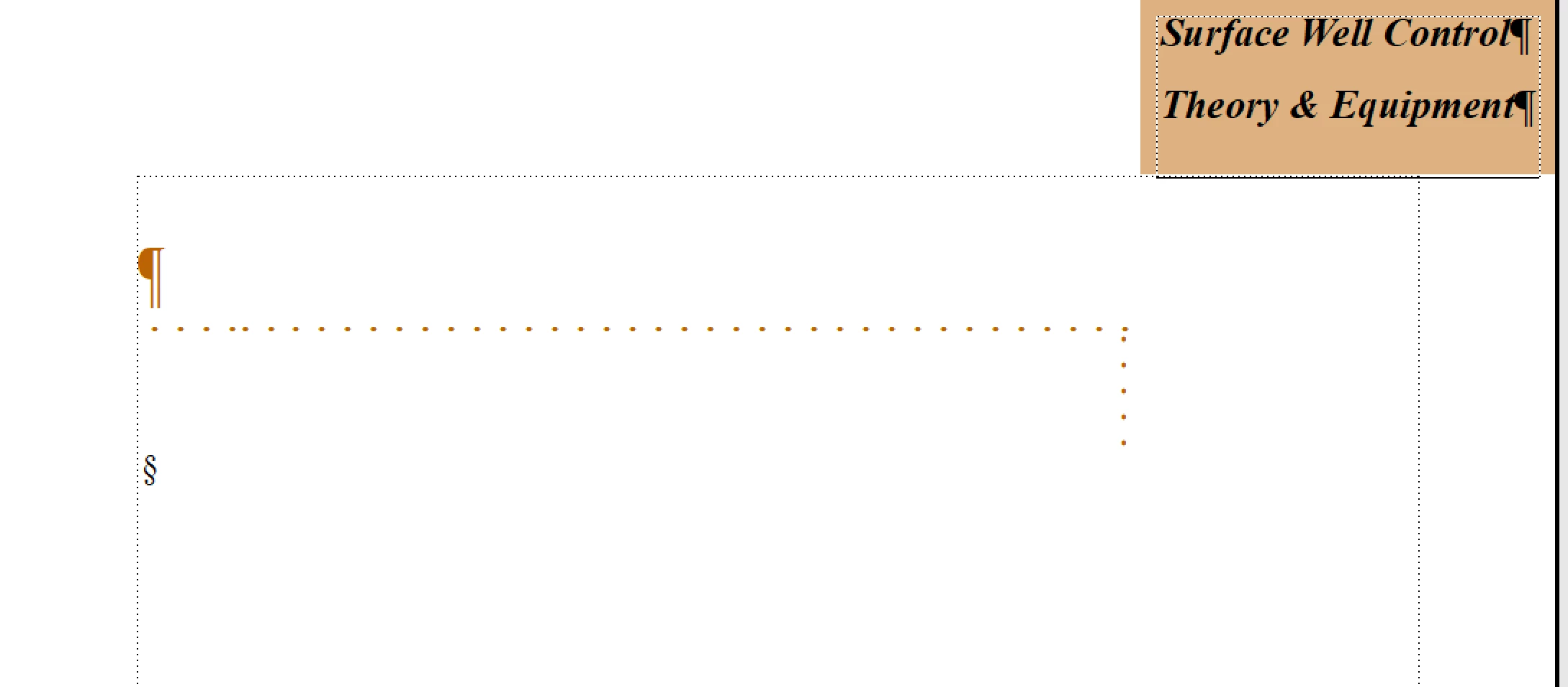

    19chokes.fm has four master pages. Left, Right, First and a new one called section that appears to be an exact duplicate of Left, that was not is use. Someone modified First and added custom text. Here is the customized version of the First master page in 19chokes.fm you sent over.



    HOW TO FIX IT

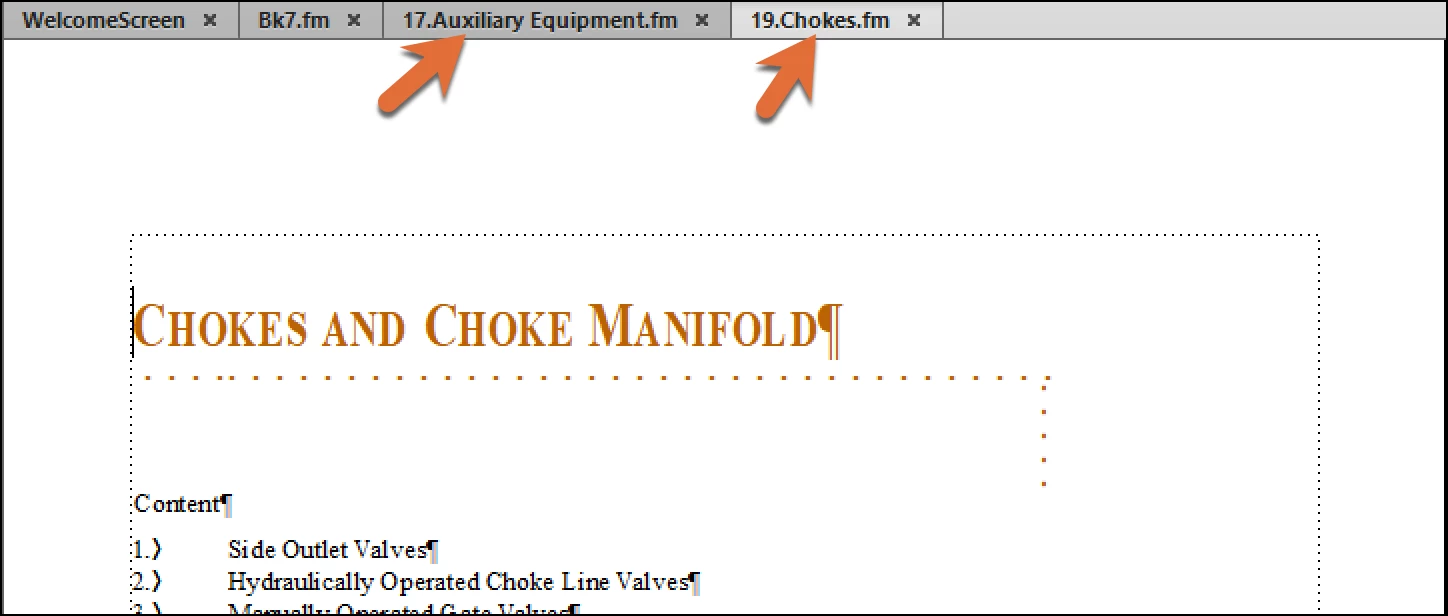

    1. Open 17.Auxiliary Equipment.fm and 19.Chokes.fm.

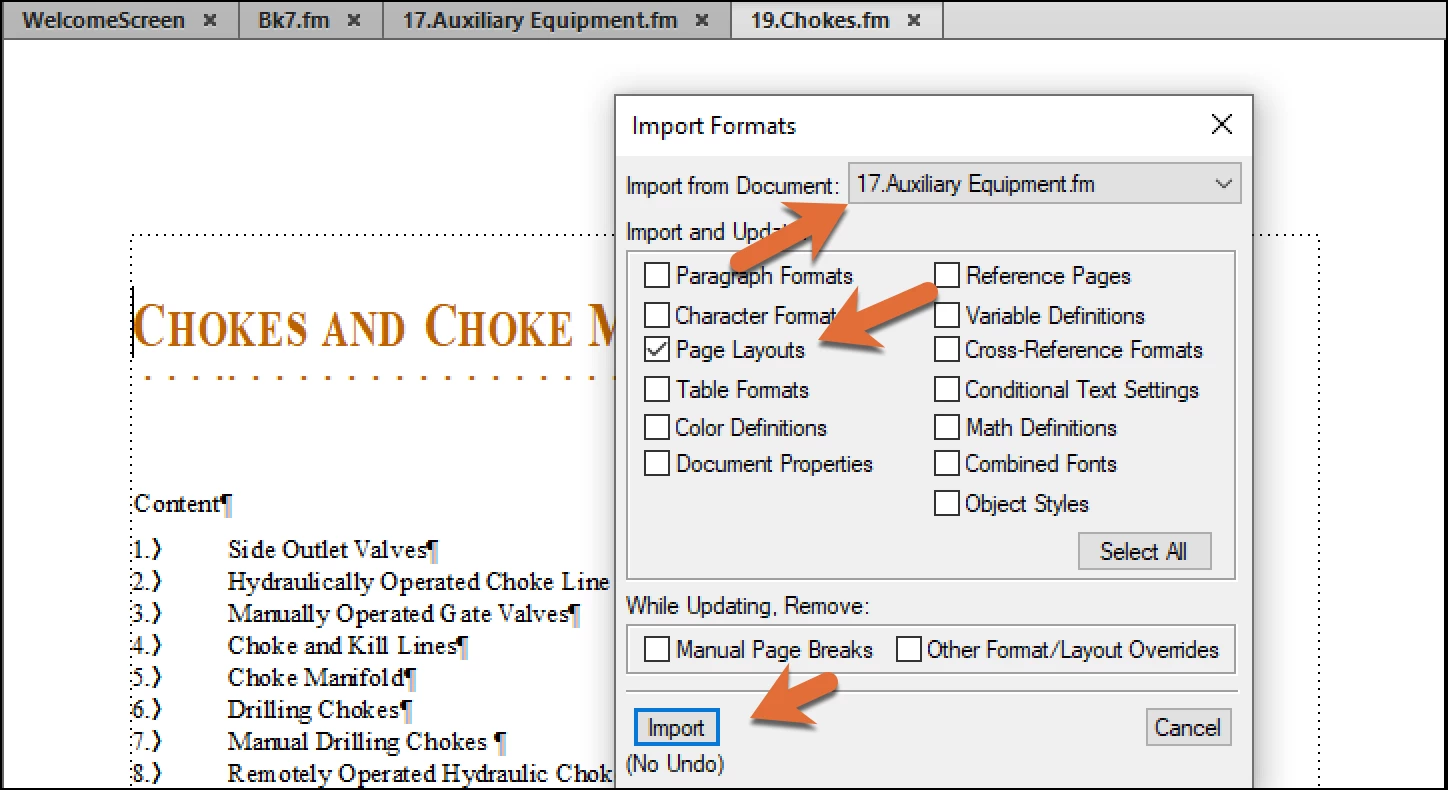

    2. In 19.Chokes.fm, choose File > Import > Formats.
      • Import from Document: 17.Auxiliary Equipment.fm
      • Only enable the checkbox for Page Layouts—everything else is unchecked.
      •       Click Import

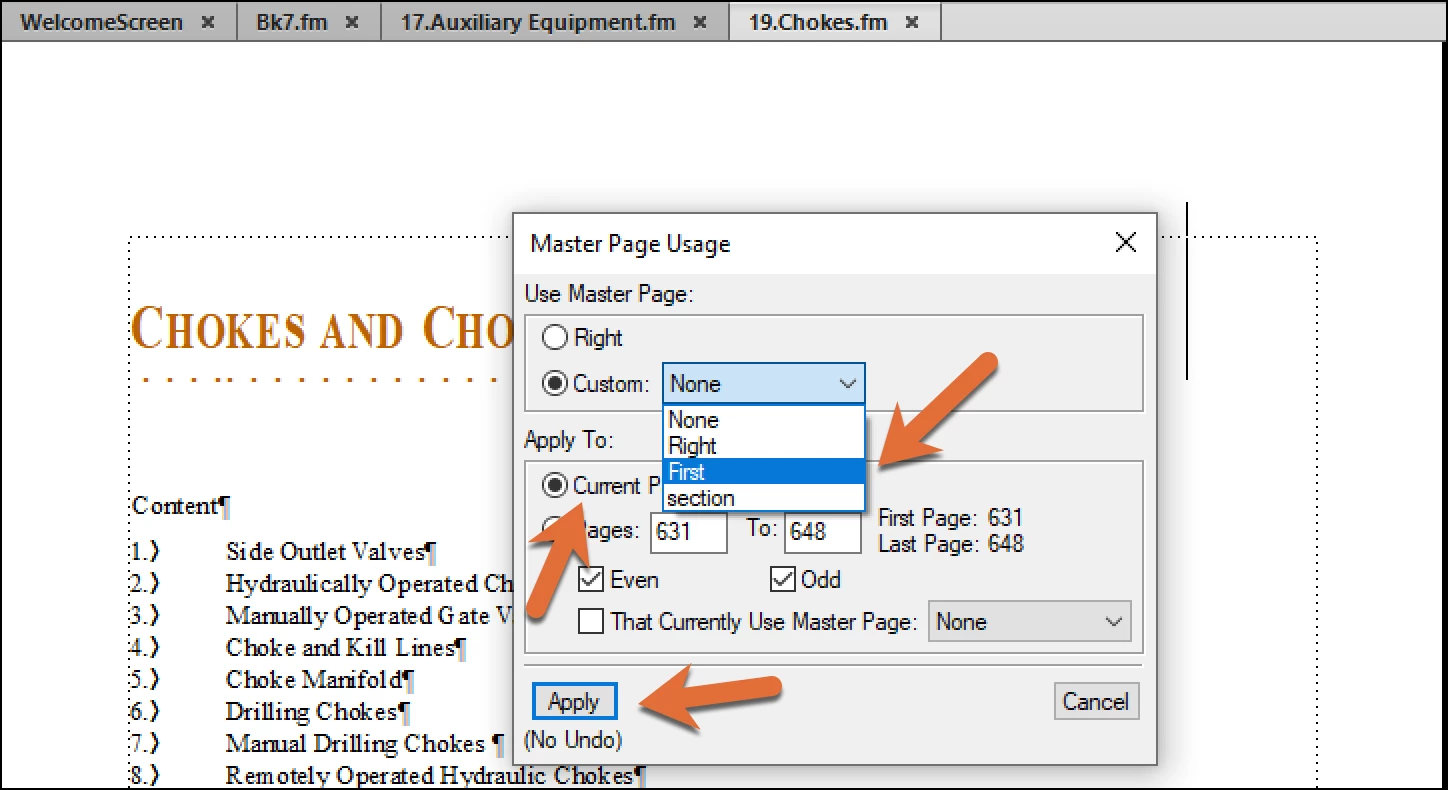

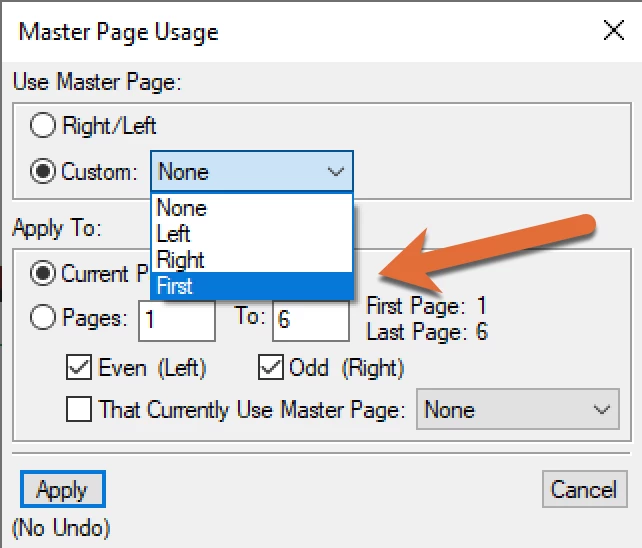

    3. In 19.Chokes.fm, choose Format > Page Layout > Master Page Usage.
      Use Master Page: Custom: First
      Apply to: Current Page
      Click Apply

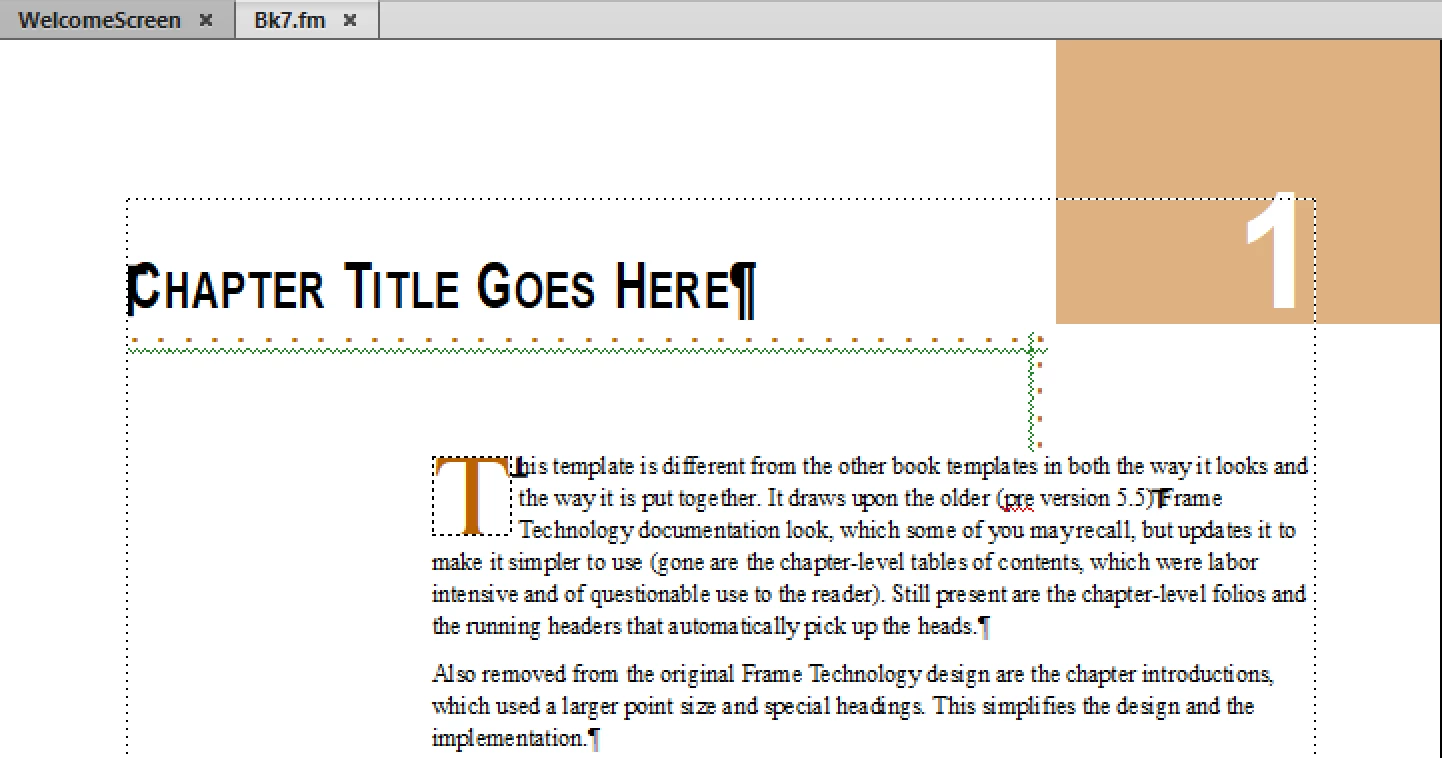

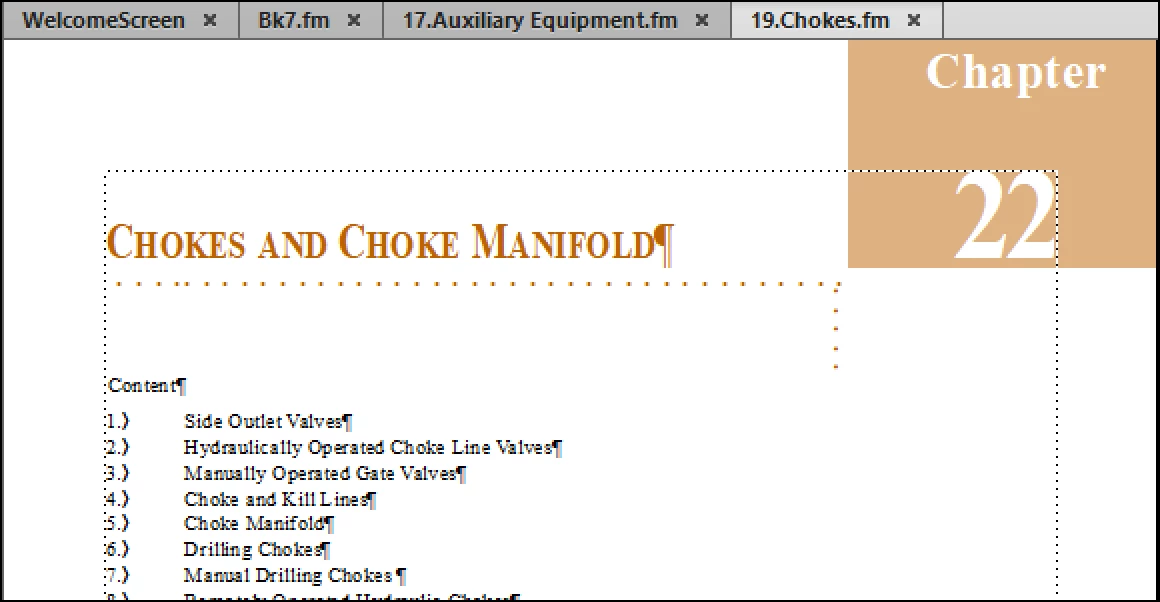

    4. The result.

    If there are other chapters missing their page numbers, repeat steps 1–3, importing the Page Layouts from 17.Auxiliary Equipment.fm into the other problem files, and applying First to the first body page of each of these chapters.



    ~Barb

    ~Barb at Rocky Mountain Training
      J
      Joe HusAuthor
      Known Participant
      December 24, 2020

                                                         Acknowledgent of  Help and  Support



      I am  extremly  grateful  for   Barb and  LinSims for  their  continued  help and  finding  me a solution.

      Without  their  help,it would  have  taken  me a long time  to reformat the book.

      Best  wishes  for Xmas a nd the new year.





        Barb Binder
        Community Expert
        Barb BinderCommunity Expert
        Community Expert
        December 23, 2020

        I can also resend the original template—but keep in mind we don't know how your version was modified over the years.



        If you'd like me to do that, let me know what version of FrameMaker you are using.



        ~Barb

        ~Barb at Rocky Mountain Training
        Barb Binder
        Community Expert
        Barb BinderCommunity Expert
        Community Expert
        December 23, 2020

        Hi @Joe Hus:



        Let's start with the original question—is First listed in the Custom Drop down menu?

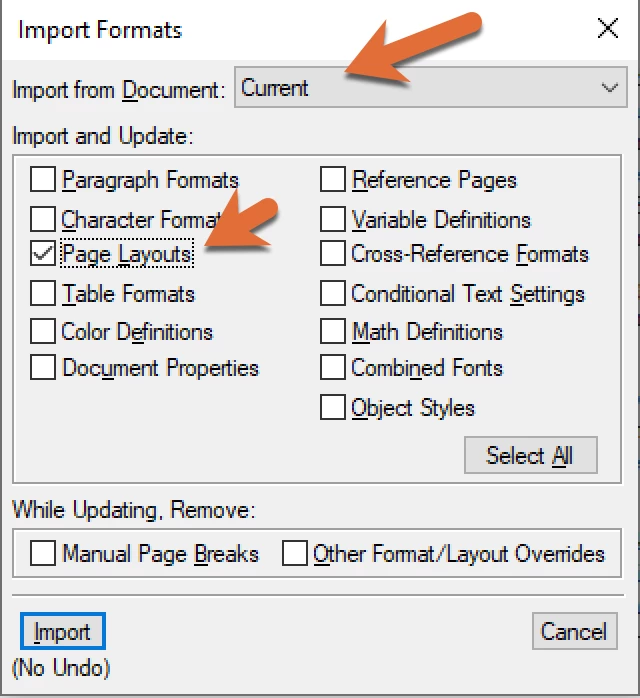

        If not, save your file and then import the just master pages from the original file that is still working. Save Use File > Import > Formats > Page Layouts. Be sure to pick the file you want to import from the Import from Document menu at the very top of the dialog box (don't leave it at Current, and uncheck everything else to only import the master pages.)

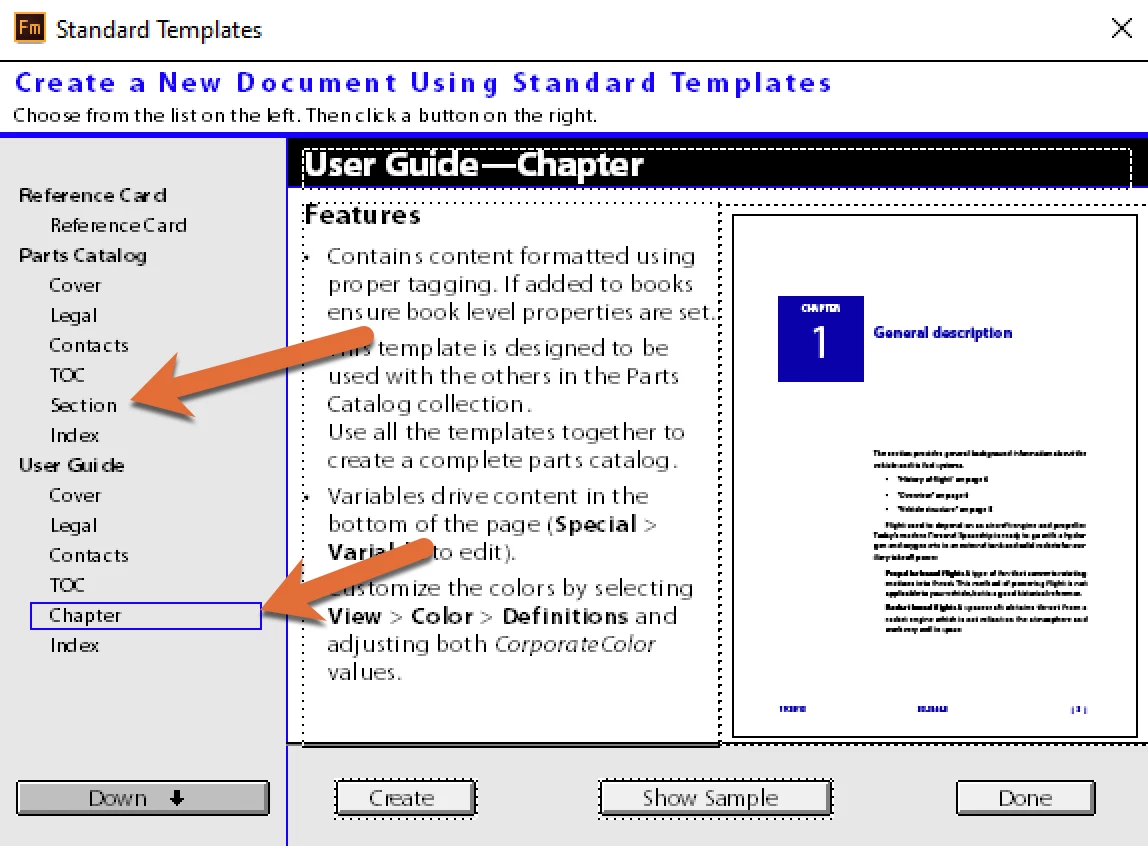

        As for newer free templates—take a look at the first sheet of templates from File > New > Document > Explore Standard Templates.



        Otherwise, I'd recommend developing a new template from scratch, modifying the one you have, or hiring someone to give you a hand developing a custom template for you.



        ~Barb

        ~Barb at Rocky Mountain Training
        J
        Joe HusAuthor
        Known Participant
        December 23, 2020

        Hi   Barb



        I  did the above...first  thing  I do when facing this  proble.  I  even chhose  reference  pages and did not  work.

        I  even  deleted the  brown  text image and  replaced  it  it  with a new one...still did bot work.

        LinSims
        Community Expert
        LinSimsCommunity Expert
        Community Expert
        December 23, 2020

        Reference pages have nothing to do with layout, so importing them isn't going to help with this issue. You need to be looking at the MASTER pages. (Terminology is actually important here, since FM uses 3 types of pages/view: Body, Master, and Reference. They do different things, so it is important to be clear about which view you are using.)



        Out of curiosity, have you checked your Color Views and Color Definitions? Is the color of the block set to either Invisible (in View > Color View) or Don't Print (in View > Color Definitions > Print As)? @Bob_Niland, can you explain this? As I recall, you use Color Views extensively.



        Adobe never created new Template Packs after the ones developed for FM 5.5. However, you can open any of those files in your version of Frame and save them as that version of FM.



        [Edited to add] Your template is based on Book Style 7 from the Adobe Template Pack 1.

        Barb Binder
        Community Expert
        Barb BinderCommunity Expert
        Community Expert
        December 23, 2020

        Hi @Joe Hus:



        I recognize that template. It's from the 5.5 template pack.





        It was designed with three master pages—the default left and right masters and a custom master called First. Start by applying First to body page 1—there was no master page mapping table in the original template—so navigate to body page 1 and choose Format > Document > Master Page Usage. Choose Custom: First and Apply to: Current Page. That should take care of it. But if if you have further issues, just come back and ask us.

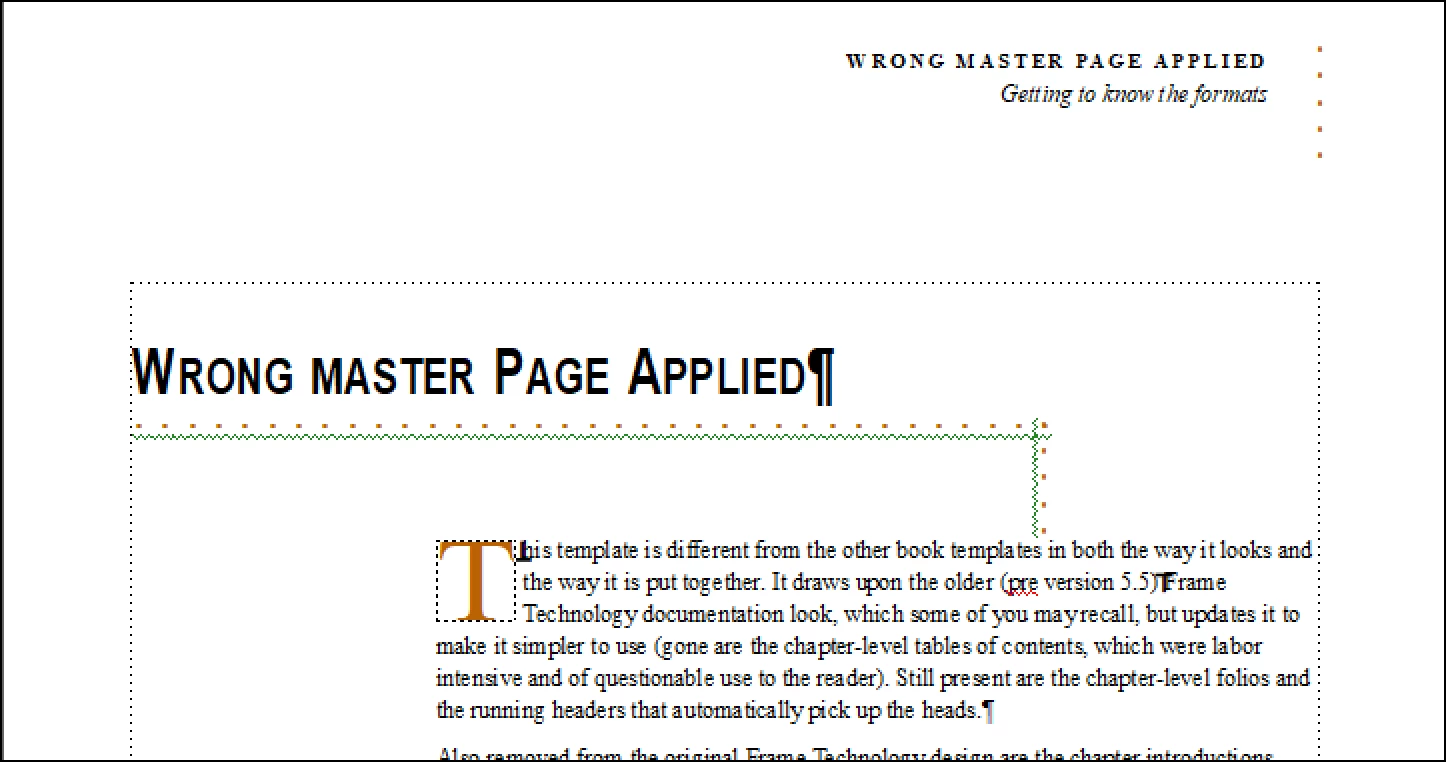

        Default Right master applied (looks like yours now):

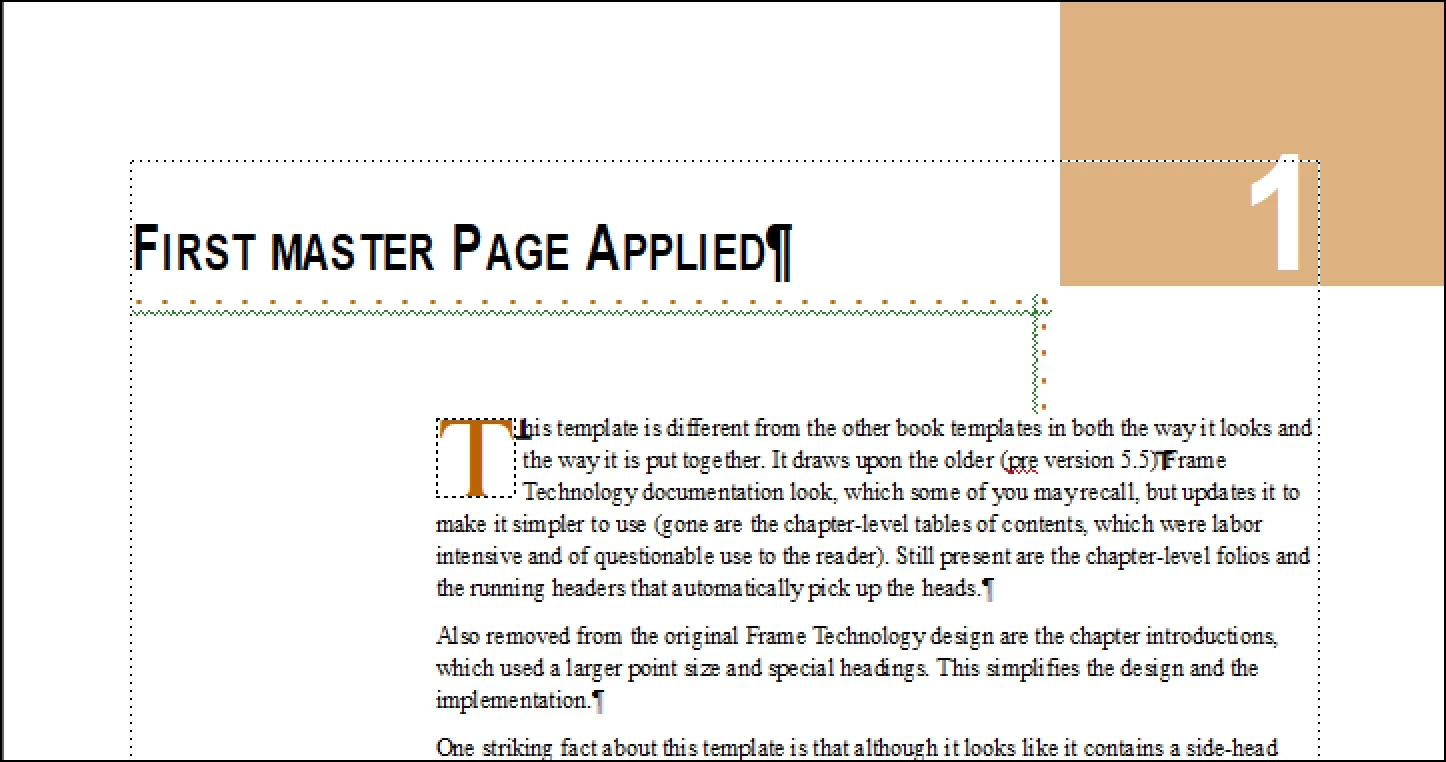

        First master applied (looks like what you want)



        ~Barb



        ~Barb at Rocky Mountain Training
          J
          Joe HusAuthor
          Known Participant
          December 23, 2020

          Thanks   barb



          I am  afraid  I am  not  seeing  what  you suggested  above  : choose Format > Document > Master Page Usage. Choose Custom: First and Apply to: Current Page.

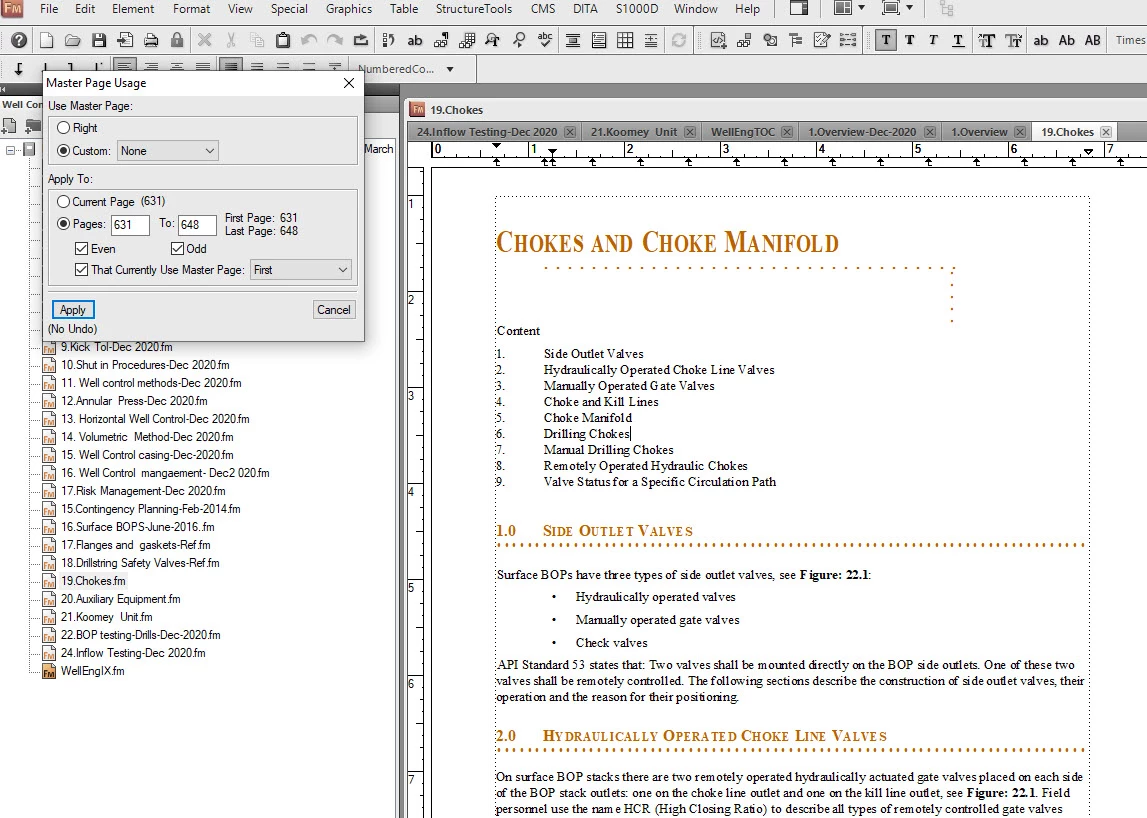

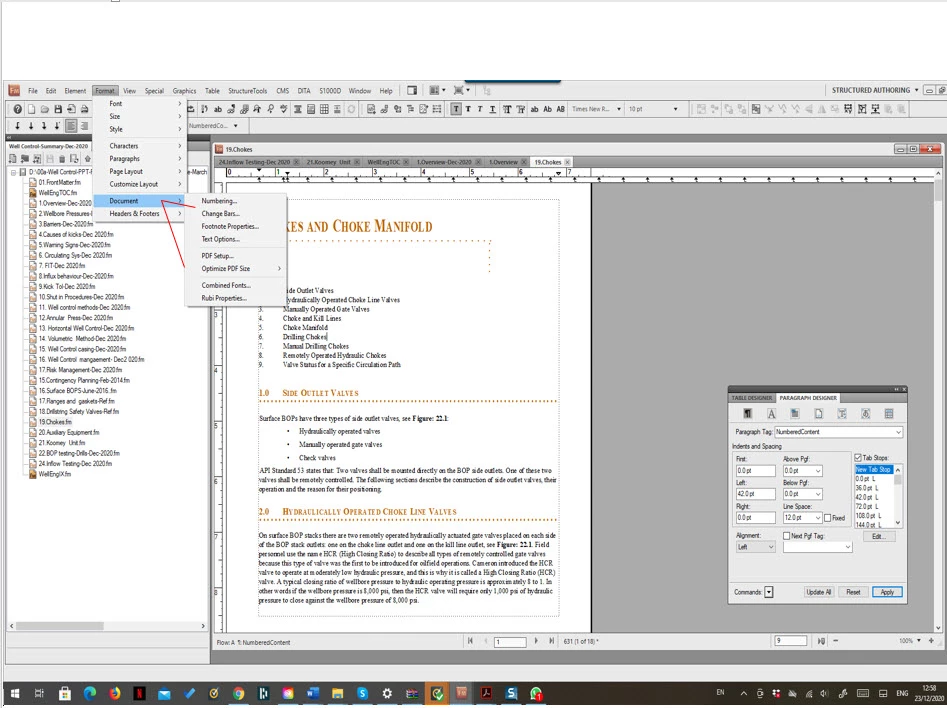

          Plz see first image  below.   I  also  tried  what in  image  2 and  it  did  work.



          J
          Joe HusAuthor
          Known Participant
          December 23, 2020

          Hi   Barb



          Do you  have an  easier  book design you can send  me  which  ha s  a similar  design to mine  so  I  do not get these errors.



          best regards

          Barb Binder
          Community Expert
          Barb BinderCommunity Expert
          Community Expert
          December 22, 2020

          Still clarifying... are the chapter numbers missing from the first page of each chapter, the table of contents, or both?



          ~Barb

          ~Barb at Rocky Mountain Training
          J
          Joe HusAuthor
          Known Participant
          December 22, 2020

          Plz  see  above

          LinSims
          Community Expert
          LinSimsCommunity Expert
          Community Expert
          December 22, 2020

          From the screen shot, what appears to have happened is that your MASTER pages got changed. You need to find a document where the Chapter number block is still showing and import the PAGE LAYOUT (yes, I know it's confusing) from that file into your current file.

          LinSims
          Community Expert
          LinSimsCommunity Expert
          Community Expert
          December 22, 2020

          Are you generating a table of contents (in which case the reference pages are pertinent), or are you talking about page numbers shown on the actual pages, in which case you are probably talking about master pages?

          J
          Joe HusAuthor
          Known Participant
          December 22, 2020

          Thnks   Jeff

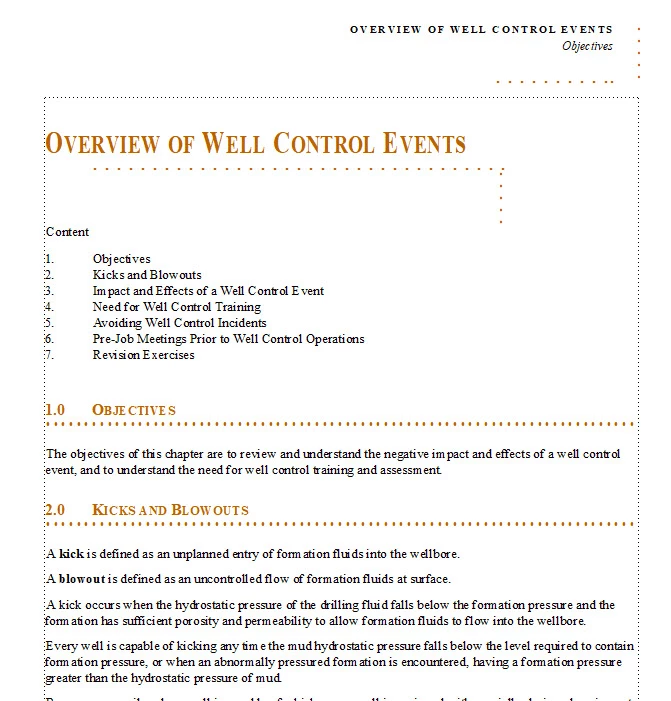

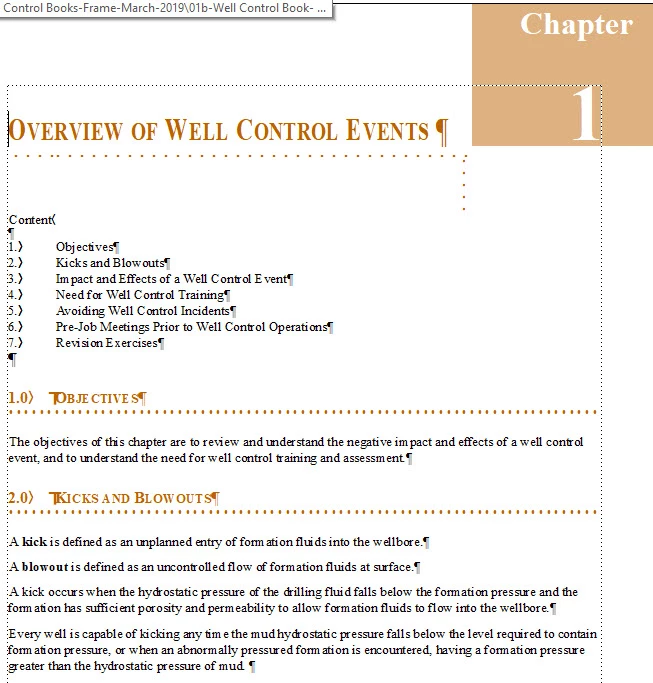

          TOC is  perfect  with  page  numbers.  But  it is the chapter  itself  that  does not  show  the chapter number.Example  below   from an old file  and  the  new  file not  showing the  chapter number  even  after updating.  TOC is  ok .






          Jeff_Coatsworth
          Community Expert
          Jeff_CoatsworthCommunity Expert
          Community Expert
          December 22, 2020

          Do you have all the source .fm files that made up the book?

          J
          Joe HusAuthor
          Known Participant
          December 22, 2020

          Thanks   jeff

          I suppose   I  have.



          How  do  I find  tehm?



          Below is  the refernec  page:

          openObjectId <$relfilename>:<$ObjectType> <$ObjectId>
          Chapter <$chapnum> : <$paratext> <$pagenum>
          <$paratext> <$pagenum>
          <$paratext> <$pagenum>
          <$paratext> <$pagenum>
          <$paratext> <$chapnum>-<$pagenum>
          <$paratext> <$chapnum>-<$pagenum>





          regards
