crosshatch pattern thickness for conditional table row or cell

Question

Using FrameMaker 2017 (version 14.0.4.512), when a table row or cell entry is tagged as a conditional entry,

and "show condition indicators" is on, a crosshatch pattern is applied to the interior border of the row or cell.

Unfortunately, the crosshatch pattern is very thick. I seek the ability to reduce the thickness of the crosshatch pattern.

Is this possible? If so, how is this achieved? I still want to show the condition indicator. I just want to modify it.

BruceG4266840 · Accepted Answer

With experimentation I found an alternative solution which appeals to me.

Open the "Table designer".

Place the cursor in the table to modify.

Select the "basic" tab.

In the basic tab, I modified the cell pad specifications

from :

top right bottom left

cell pad 3.0pt 2.0pt 1.0pt 2.0pt

to :

cell pad 1.0pt 1.0pt 1.0pt 1.0pt

This places the cell content closer to the cell border,

which minimizes space for the crosshatch pattern.

It is a trade-off I prefer.

Barb Binder · Answer

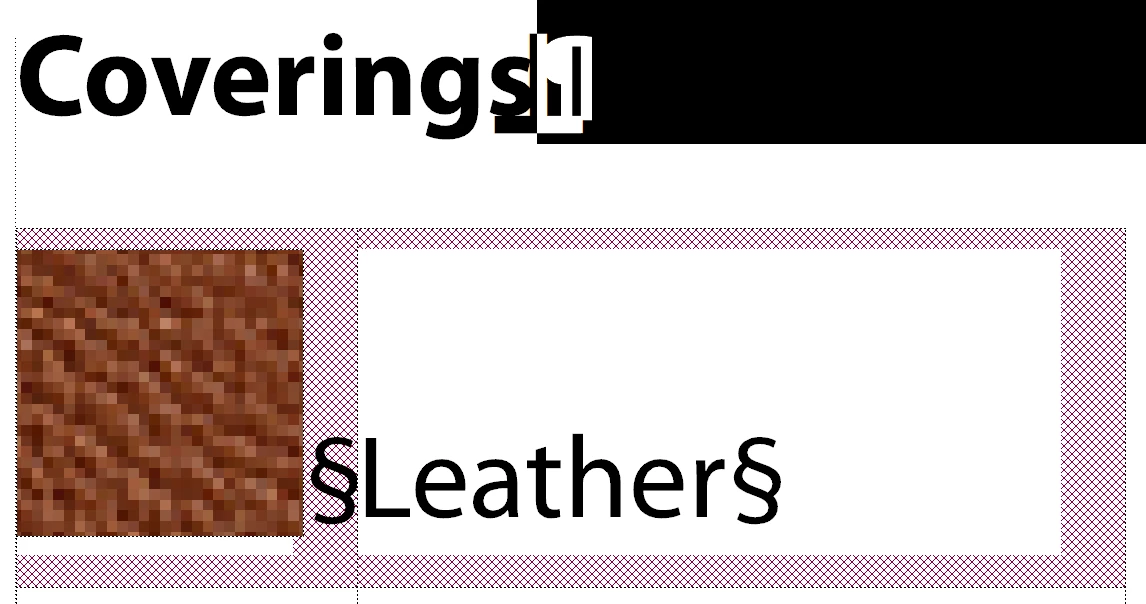

Hi Bruce:No, not as far as I know, and there are definitely not controls within the FrameMaker interface.You can add a background color to make it solid, otherwise you will have cross-hatching that will scale with the magnification. Either way, the thickness of the cross-hatching remains constant.100%:400%~Barb
