Exporting SVG image referenced in FM doc to HTML5

I use quite a few SVG images in my documents for equations and diagrams, currently when I export to HTML these svg images get converted to .jpg. Does anyone know how I can prevent this from happening? I am already using the setting to not use Distller for generating images. My only workaround now is maintaining a list of svg assets to replace their .jpg counterparts in the html code and to copy the files into the published directory.

I am currently using Framemaker 2015, but I also noticed this behaviour on a trial copy of 2019.



    This topic is closed to new replies. Start a new post to keep the conversation going.

    3 replies

    pulkitn
    Adobe Employee
    pulkitn
    Adobe Employee
    Sep 23, 2019 11:27 AM UTC

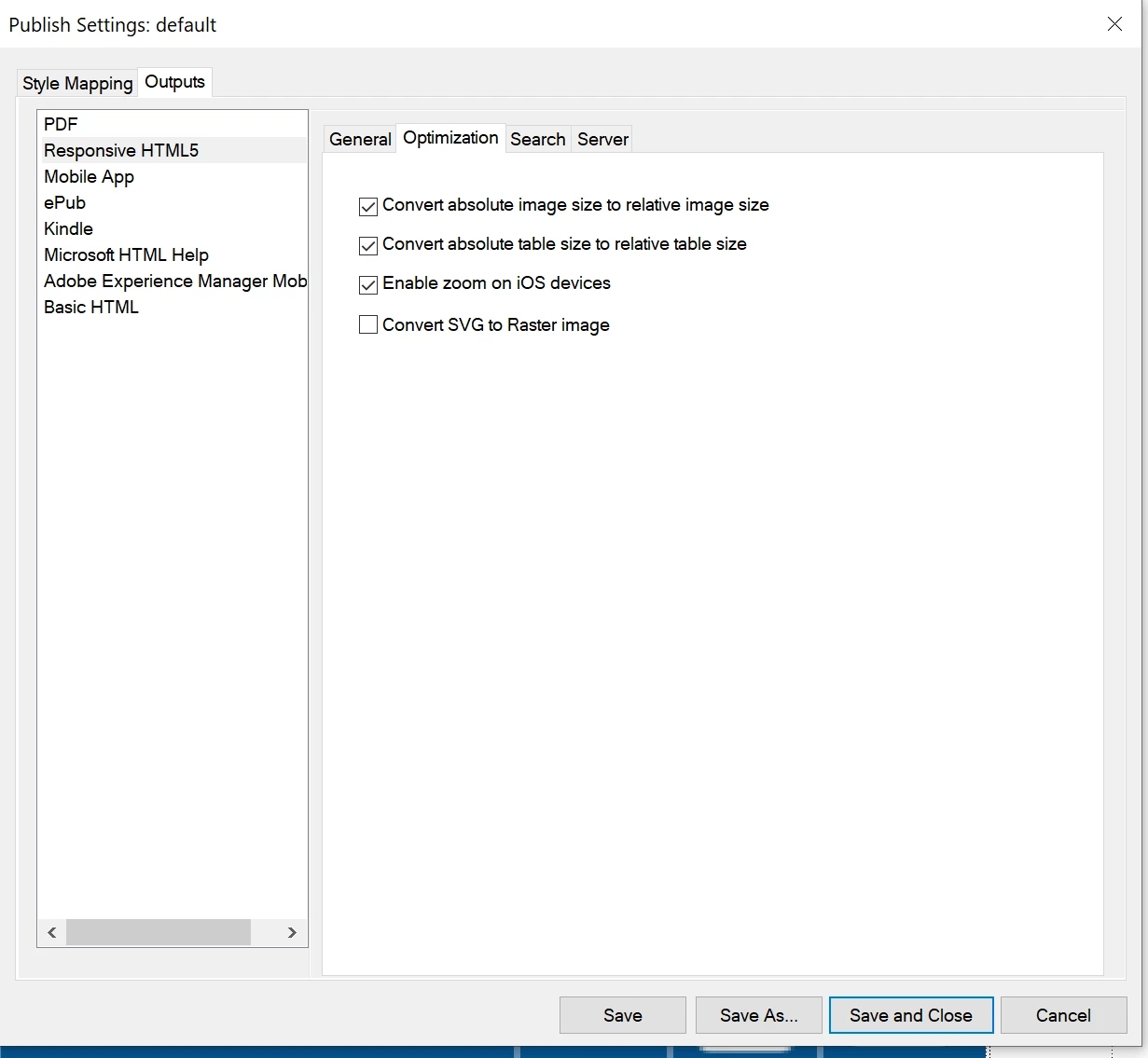

    I am currently using FrameMaker 2019 and you can change this from publish settings.

    Go to publish pod--> Edit settings--> Go to Respponsive--> optimization tab --> deselect "Convert svg to raster image".

    Translate
    Bob_Niland
    Community Expert
    Bob_NilandCommunity Expert
    Community Expert
    Sep 23, 2019 8:34 PM UTC
    Preservation of SVG on publishing to HTML is a relatively recent enhancement to FM. FM2019 has it. FM2017 might. FM2015 I'm less sure about.
