ExtendScript doesn't work consistently

I have a really strange situation. I have an ExtendScript that works on all but one document. They all have the same template, same tags, same layout, etc. I'm using unstructured FM 2019 in Windows 10 on a PC. Has anyone run into something like this before? Is there something in FM that I should be looking for that would cause this? I don't see anything different, there shouldn't be anything different, but evidently there is. It's very frustrating.

This topic is closed to new replies. Start a new post to keep the conversation going.
frameexpert
frameexpertCorrect answer
Community Expert
Jun 22, 2021 8:28 PM UTC

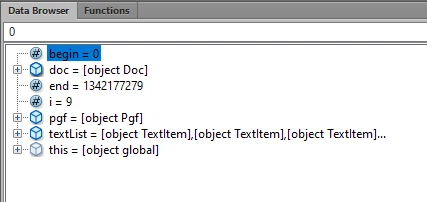

In the data browser box in ExtendScript, it shows this when it hangs up:

i = 9. Is that what you mean?


No, the variable num.

Your getFigOrTable function only returns num if the regular expression matches. Otherwise, it returns undefined, which is why num.index is failing. You need some kind of test for num after you call getFigOrTable:

if (!num) { // undefined

    return; // Don't do anything else.

}

or

if (num) { // Returned a regex match.

    begin = num.index;

    // etc.

}

www.frameexpert.com

14 replies

jmyers2Author
Known Participant
Jun 22, 2021 2:35 PM UTC

The message in ExtendScript is "undefined is not an object" and it locks up FM.

Bold is a character format that does exist in the document.

Translate
frameexpert
Community Expert
Community Expert
Jun 22, 2021 2:44 PM UTC

It should give you a line number, which will usually be one off. What is on the line it reports? Or a few lines in either direction?

Translate
www.frameexpert.com
jmyers2Author
Known Participant
Jun 22, 2021 3:00 PM UTC

The red text is where ES stops running.



function boldTheText (pgf, doc) {

var end = Constants.FV_OBJ_END_OFFSET - 1, begin = 0, textRange, charTag;

var textList = pgf.GetText (Constants.FTI_String);
for (var i = textList.length - 1; i >= 0; i -= 1)
{
num = getFigOrTable (pgf);
begin = num.index;
end = begin + num[0].length;

textRange = new TextRange (new TextLoc (pgf, begin), new TextLoc (pgf, end));
applyCharFmt (textRange, "Bold", doc);
}

}

Translate
jmyers2Author
Known Participant
Jun 22, 2021 1:33 PM UTC

The script goes through my document, looks for specific paragraph styles, and then bolds certain words in the paragraph. (I was able to put it together using pieces of other scripts that I had lots of help from from you folks in the forum. 🙂 ) The red text below is where it breaks down.  Like I said, it works in all the documents except one, so I figure it must be something in the document.



#target framemaker
main ();

// Check for an open document
function main () {
var doc;

doc = app.ActiveDoc;
if (doc.ObjectValid () === 1) {
processDoc (doc);
}
else {
alert ("There is no active document.");
}
}

function processDoc (doc) {
var pgfRegex, pgf;

// Turn off the displaying property to speed the script and prevent flicker.
if (app.Displaying === 1) {
app.Displaying = 0;
}
pgf = doc.FirstPgfInDoc;
// Match CaptionFigure and CaptionTable paragraph formats.
pgfRegex = /^(CaptionFigure|CaptionTable|CaptionPlate)$/;

while (pgf.ObjectValid () === 1) {
if (pgfRegex.test (pgf.Name) === true) {
boldTheText (pgf, doc);
}
pgf = pgf.NextPgfInDoc;
}

// Restore the document's display and refresh the screen.
if (app.Displaying === 0) {
app.Displaying = 1;
doc.Redisplay ();
alert("Text is bolded");
}
}
function boldTheText (pgf, doc) {

var end = Constants.FV_OBJ_END_OFFSET - 1, begin = 0, textRange, charTag;

var textList = pgf.GetText (Constants.FTI_String);
for (var i = textList.length - 1; i >= 0; i -= 1)
{
num = getFigOrTable (pgf);
begin = num.index;
end = begin + num[0].length;

textRange = new TextRange (new TextLoc (pgf, begin), new TextLoc (pgf, end));
applyCharFmt (textRange, "Bold", doc);
}

}



function getFigOrTable (pgf) {

var doc;

doc = app.ActiveDoc;

var regex, pgfText, match;

regex = /(?:Figure|Table|Plate) ((AF|AT|[FTP])(\d+)([.]| [(]continued[)][.]))/; // Match figure or table and number in text.

pgfText = getText (pgf, doc);

if (regex.test (pgfText) === true) {

match = pgfText.match (regex);

return (match);

}

}



function getText (textObj, doc) {

// Gets the text from the text object or text range.

var text = "", textItems, i;

// Get a list of the strings in the text object or text range.

if (textObj.constructor.name !== "TextRange") {

textItems = textObj.GetText(Constants.FTI_String);

} else {

textItems = doc.GetTextForRange(textObj, Constants.FTI_String);

}

// Concatenate the strings.

for (i = 0; i < textItems.len; i += 1) {

text += (textItems[i].sdata);

}

return text; // Return the text

}



function applyCharFmt (textRange, name, doc) {

var charFmt = 0;

charFmt = doc.GetNamedCharFmt (name);

if (charFmt.ObjectValid()) {

doc.SetTextProps (textRange, charFmt.GetProps());

}

}

Translate
Bob_Niland
Community Expert
Community Expert
Jun 22, 2021 1:55 PM UTC

Can't help much with the script code, but:

  • What does "breaks down" mean?
    Does nothing?
    Throws error?
    Crashes entire internet?
  • Is the Bold being applied a named Character Format, or just an override?
    If named, does the ChFmt exist in the doc?
    If override, is Bold available for the font used?
Translate
frameexpert
Community Expert
Community Expert
Jun 21, 2021 11:12 PM UTC

As Bob said, we will definitely need more details about the script what it is supposed to do.

Translate
www.frameexpert.com
Bob_Niland
Community Expert
Community Expert
Jun 21, 2021 9:45 PM UTC

The forum has a number of scripters [and I'm not one]. Several are professional. They run into odd issues [some real bugs], but I'm going to guess that they'll need more info to be of help, starting with:
• what is the function of the script?
• what is the failure mode?

Translate
