Find name of variable

  • November 10, 2016
  • 1 reply
  • 1289 views

Dear friends and experts, I'm again at the end of my knowledge:

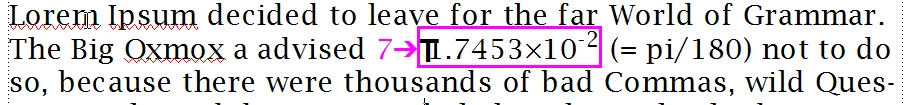

  • A variable just behind a marker is found and the variable can be deleted in the text

  • This variable should also be removed from the catalogue. I'ts name is not known, because the name is generated at the time of insertion (the current name is 2016-11-10T09:46:52.136Z).
  • Experiments with the text selection after finding the variable (line 31) did not reveal anything useful to get the name of the variable.
  • Do You have an idea?
#target framemaker
// Required doc: #calc Marker with text containing "C7 at the beginning
//               behind this marker the variable of unknown name is found
sMarkerText = '"C7';
  oDoc =  app.ActiveDoc;
  oMarker = oDoc.FirstMarkerInDoc;
  while (oMarker.ObjectValid()) {
    if (oMarker.MarkerTypeId.Name == "#calc") {
      if (oMarker.MarkerText == sMarkerText) {
        bFound = FindAndDeleteVariable (goCurrentDoc, goCurrentMarker); // remove already existing variable
// How to get the name of the variable to be able to remove it from the catalogue also?
        oTextLoc = goCurrentMarker.TextLoc;
        oTextLoc.offset = oTextLoc.offset + 1;        // insert temp variable behind marker
        InsertVariable (goCurrentDoc, oTextLoc, "#TEST", "\+1.275×10<super>\+9" );
      }
    }
  }
function FindAndDeleteVariable (oDoc, oMarker) { //=== Find variable behind marker and remove it ==
// In        oMarker: current marker
// Out       Function returns true for found+removed variable
var tLoc1 = oMarker.TextLoc,
    tLoc2 = oMarker.TextLoc,                      // should be just behind the marker
    iUnique1= oMarker.TextLoc.obj.Unique,         // ¶ of the marker
    myTextRange, findParams, fRange;
  tLoc2.offset = tLoc2.offset + 1;                // a - c are required!
  myTextRange  = new TextRange(tLoc1,tLoc2);      // b
  oDoc.TextSelection = myTextRange;               // c
  findParams= GetFindParamsVariable ();           // search for any variable
  fRange = oDoc.Find  (tLoc1, findParams);        // finds variable
  if (fRange.beg.obj.ObjectValid()) {             // variable found ?
    if (fRange.beg.obj.Unique == iUnique1) {      // same ¶ as the marker ?
      if (fRange.beg.offset == tLoc1.offset+1) {  // TR =? variable behind marker
        oDoc.DeleteText(fRange);                  // Delete the selected Variable
        return true;
      }
    }
  }
  return false;                                   // there was'nt a variable
} //--- end FindAndDeleteVariable
function GetFindParamsVariable () { //=== Set up parameters to Find a variable ====================
// Out       Returns parameters for the find function: no wrapping around ?
// Reference Klaus Göbel, https://forums.adobe.com/thread/2227993
//           FDK Function Reference, F_ApiFind()
var findParams = new PropVals() ;
  propVal = new PropVal() ;
  propVal.propIdent.num = Constants.FS_FindObject;
  propVal.propVal.valType = Constants.FT_Integer;
  propVal.propVal.ival = Constants.FV_FindAnyVariable ;
  findParams.push(propVal);
  return findParams;
} //--- end GetFindParamsVariable

function InsertVariable (oDoc, oTextLoc, sVarName, sContent) { //=== Insert variable at location ==
// In        oTextLoc: where to insert the variable
//           sVarName: name of the variable
//           sContent: content of the variable
var oVar;
  oVar = oDoc.NewAnchoredFormattedVar (sVarName, oTextLoc);
  oVar.Fmt = sContent;
}

BTW the marker contains this text: "C7 ¶ after T2 TB" = @Pi19_2 / 180.0; which is successfully evaluated and placed in the temporary variable - there is progress in my project¨.

Thank You very much for Your help!

Klaus

This topic has been closed for replies.
Correct answer frameexpert

Hi Klaus,

I am not clear on what you are trying to do, but here is the general algorithm for deleting unused formats:

1) Make an array to hold the used variable names.

2) Loop through all of the variables in the document, and if the name is not currently in the list, add it to the list. When the loop is done, you will have an array of all of the names of the variables in use.

3) Loop through all of the variable formats in the document. For each one, see if its name is in the used variables array; if not, delete the format. You should test each variable to make sure it is a user variable because system variables can't be deleted.

There is no property on a variable format itself to say that it is in use.

-Rick

1 reply

K.Daube
Community Expert
K.DaubeCommunity ExpertAuthor
Community Expert
November 10, 2016

Well, I already thought of this method:

  • All of these variables have a name with a distinct pattern (Regex /\d+\-\d+\-\d+T\d+:\d+:\d+\.\d+Z/ ).
  • Run through all variables in cataloge and look for those with this pattern
  • If found: is is really used? => have not found the appropriate property
  • If not used, delete from catalogue

You see, just another problem here.

frameexpert
Community Expert
frameexpertCommunity ExpertCorrect answer
Community Expert
November 10, 2016

Hi Klaus,

I am not clear on what you are trying to do, but here is the general algorithm for deleting unused formats:

1) Make an array to hold the used variable names.

2) Loop through all of the variables in the document, and if the name is not currently in the list, add it to the list. When the loop is done, you will have an array of all of the names of the variables in use.

3) Loop through all of the variable formats in the document. For each one, see if its name is in the used variables array; if not, delete the format. You should test each variable to make sure it is a user variable because system variables can't be deleted.

There is no property on a variable format itself to say that it is in use.

-Rick

www.frameexpert.com
K.Daube
Community Expert
K.DaubeCommunity ExpertAuthor
Community Expert
November 10, 2016

Tank You, Rick, this gave me the kick!

The following works as expected:

function DeleteUnusedVariables (oDoc) { //=== Delete temporary variables in catalogue =============
// In        oDoc: Current document
// Out      Function returns false only in case of problems; else true
// Comment  Only #calc temporary variables are deleted, if they are not used in the document
//          What kind of problem could be encountered? => return false
// Reference Ric Quatro, https://forums.adobe.com/thread/2234619
var aUsedVariables = [],
    oVar, oCatVarFmt, oNxtVarFmt,
    re_TmpVarName = /\d+\-\d+\-\d+T\d+:\d+:\d+\.\d+Z/, // e.g. 2016-11-10T09:46:52.136Z
    sVarName, sName, j;
  oVar = oDoc.FirstVarInDoc;
  while (oVar.ObjectValid()) {
    sVarName = oVar.VarFmt.Name;
    if (re_TmpVarName.test(sVarName)) {          // is it a temporary variable ?
      if (IsInArray (aUsedVariables, sVarName)) { // already in the list
        continue;
      }
      aUsedVariables.push(sVarName);
    }
    oVar = oVar.NextVarInDoc;
  }
  oCatVarFmt = oDoc.FirstVarFmtInDoc;
  while (oCatVarFmt.ObjectValid()) {
    if (oCatVarFmt.SystemVar > 0) {              // skip system variables
      oCatVarFmt = oCatVarFmt.NextVarFmtInDoc;
      continue;
    }
    sName = oCatVarFmt.Name;
    if (re_TmpVarName.test(sName)) {              // is it a temporary variable ?
      if (IsInArray (aUsedVariables, sName) != null) {
        oCatVarFmt = oCatVarFmt.NextVarFmtInDoc;
        continue;                                // it is used in the document
      } else {
        oNxtVarFmt = oCatVarFmt.NextVarFmtInDoc;
        oCatVarFmt.Delete();                      // remove from catalogue
        oCatVarFmt = oNxtVarFmt;
        continue;
      }
    } else {
      oCatVarFmt = oCatVarFmt.NextVarFmtInDoc;
    }
  }
  return true;
} //--- end DeleteUnusedVariables
function IsInArray (array, item) { //=== Get index of item in array ===============================
// In       array: where to find the item
//          item:  to be found in the array
// Out      Returns index of found element or null.
// Comment  array.indexOf() is not supported in ExtendScript, only  string.indexOf () is defined.
var j, arLen = array.length;
  for (j = 0; j < arLen; j++) {
    if (array  == item ) { return j;}
  }
  return null;                                    // not found in array
} //--- end IsInArray
