FM 2019 vs FM12 - Registration Marks

  • January 7, 2019
  • 3 replies
  • 1196 views

Best wishes FM friends

I'm using FM 12 and testing FM 2019 (version 15.0.2.503).

I'm worried about the result obtained when regenating my PDF.

In FM 2019, the registration marks aren't at the same place as in FM 12 (both image are same size)

In FM 2019, i have the registration "bullet" but the crops makrs disappears [I tried print to AdobePdf, in .ps and with Publish menu (the last one is worst, no marks are shown]

Anyone know why isn't the same ?

The source file is a 175mm x 240mm size, the PDF generated is a 210mm x 297mm (A4)

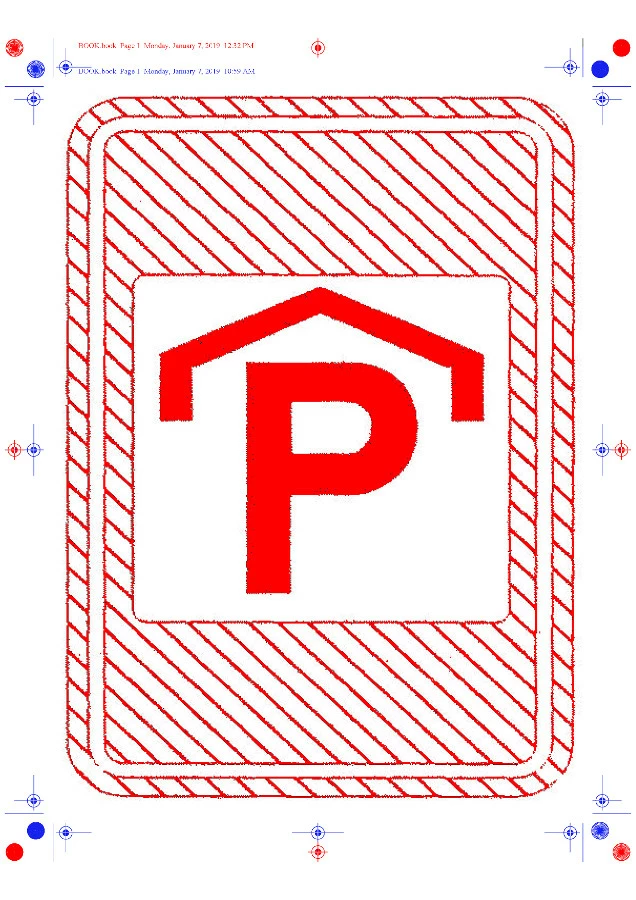

At the end of my post, you will find and image where i merge both version :

In blue is FM12 version

In red is FM2019 version

FM 12FM 2019

    This topic has been closed for replies.
    Correct answer Pinpin Philippe

    Solved, thanks to Amitoj from Adobe.


    I thought Framemaker's "Publish PDF" was going to take the paper size set in the joboption of Distiller.

    But need to redefine it in the "Output General Settings" of the Publish PDF settings.

    3 replies

    P
    Pinpin PhilippeAuthorCorrect answer
    Inspiring
    January 9, 2019

    Solved, thanks to Amitoj from Adobe.


    I thought Framemaker's "Publish PDF" was going to take the paper size set in the joboption of Distiller.

    But need to redefine it in the "Output General Settings" of the Publish PDF settings.

    A
    Adobe Employee
    Amitoj
    Adobe Employee
    January 8, 2019

    @philippep2776167​

    You may not have to select the distiller option. In the PDF option simply try with these

    In General: uncheck all check boxes and use Print option and specify page size

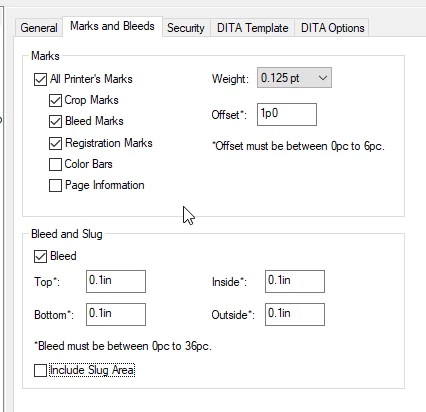

    In Marks and bleeds

    please try and generate the pdf with these options and let us know if this works correctly. if any issue, you could share details with me at amitosin@adobe.com so we can look at other issues you are facing in regards to print settings for PDF.

    R
    ReedError
    Inspiring
    January 7, 2019

    Go to Publish Settings > Use Acrobat Distiller for PDF Generation.

    I think this is required if you are using PDF marks.

    Also, if you have been using custom distiller settings in FM12, they will not have carried over to FM2019s new PDF engine.

    P
    Pinpin PhilippeAuthor
    Inspiring
    January 8, 2019

    Hello ReedError,

    In FM 12 there is no "Publish PDF", the only 2 option is "Save as PDF" or print to AdobePDF printer.

    When I print to AdobePDF (using our own Distiller DC setting) in FM-12 and FM-2019 (with Registration marks = Western), I have the different result show on the 1st post.

    Amitosin, when I change the Publish Setting as your screen [by the way, 1p0 dont work, it's 1pc (internationnal English intallation-> UkEnglish, don't know if it's change sometings, but had some bad issue when using other language on previous FM version], I haven't marks on the PDF (but my page is 1.4cm larger and higher).

    Amitosin, I'll contact you on your mail.
