FM2017 & FM2019 Object properties dialog for images does not respect xml attribute

Forum|Forum|5 years ago
September 16, 2020
1 reply
741 views

Hi everybody,

I've found a few posts claiming that FM2017 and FM2019 have images issues that FM2015 did not have.

My collegues and I are facing the issues likewise.

Opening an XML file with images defined either by "scale" or e.g. by "width", some images will be "mis-sized".

Consider this <fig> node:

<fig><figspace/><image href="../PathToImage/Image.png" placement="break"  scale="24.00" />
<title>Title of the Image</title></fig>

The image may be scaled by 24%, but not always.

I tried to pinpoint the issue by inserting this node several time a row.

<fig><figspace/><image href="../PathToImage/Image.png" placement="break"  scale="24.00" />
<title>First Insertion</title></fig>
<fig><figspace/><image href="../PathToImage/Image.png" placement="break"  scale="24.00" />
<title>Second Insertion</title></fig>

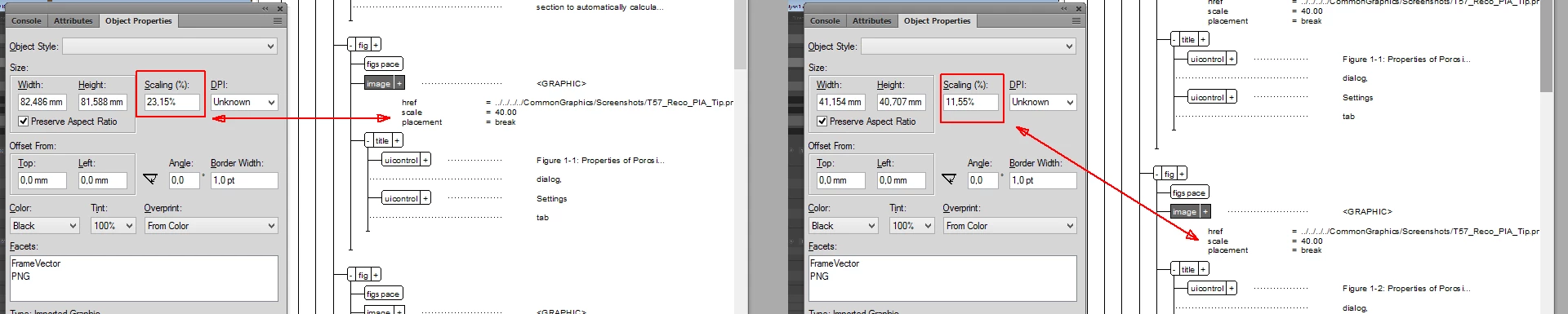

No difference between the two nodes, yet, the value for scale in the object properties dialog in FM are different between the two images. (and the scale value in the dialog ist different from the value the scale attribute)s

Changing the scale in the oject properties helps until closing the file. When opened again, the same wrong values are there again.

Any suggestions?

This topic has been closed for replies.

A

Amitojsingh

Adobe Employee

Can you please share the file set once so we can look at why this difference. This is an area we do plan to address and improve over the upcoming Summer Release of 2020 updates.

Thanks

Amitoj Singh

E: amisingh@adobe.com

FabianK007Author

Known Participant

Thank you Amitoj, I wrote you an email.

For the rest of the community:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE task PUBLIC "-//OASIS//DTD DITA Task//EN" "technicalContent/dtd/task.dtd" [
]>

<task id="id19AVA0AB0UL"
 xmlns:ditaarch="http://dita.oasis-open.org/architecture/2005/">
 <title>Some Title</title>
 <taskbody><context><p>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua:</p></context>
  <steps><step id="id199G80D60DH"><cmd>Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.</cmd>
    <stepresult><p>At lectus urna duis convallis convallis tellus id.</p></stepresult></step>
   <step><cmd>Sem fringilla ut morbi tincidunt augue interdum velit euismod in.</cmd>
    <fig><figspace/><image href="../../../../CommonGraphics/Screenshots/Image1.png" placement="break"  scale="40.00" />
     <title>Title for the First Figure</title></fig>
    <fig><figspace/><image href="../../../../CommonGraphics/Screenshots/Image1.png" placement="break"  scale="40.00" />
     <title>Here is Copy of the First Figure</title></fig></step>
   <note type="tip"><notesymbol/><p>Tellus in metus vulputate eu scelerisque felis imperdiet proin fermentum. Et pharetra pharetra massa massa. Lacus suspendisse faucibus interdum posuere lorem ipsum dolor sit. A lacus vestibulum sed arcu.</p></note></steps>
  <postreq><p>Mauris augue neque gravida in fermentum et sollicitudin ac. Ac auctor augue mauris augue neque. Adipiscing enim eu turpis egestas pretium aenean pharetra magna ac.</p></postreq></taskbody></task>

Information about the image:

1010 x 999 Pixels (1.01 MPixels) (1.01)
35.6 x 35.2 cm; 14.03 x 13.88 inches

namitad12952251

Adobe Employee

Hi FabianK007,

FM fits an object to the frame size when it is inserted. Is the image bigger than the frame in this case?

Also, reagarding the different scaling on the image, Can you specify if the frame where image is inserted is different?

Thanks & Regards,

Namita
