FrameMaker 2017 displays images tiny (DITA 1.2)

Forum|Forum|8 years ago
January 12, 2018
1 reply
654 views

Hi all,

I suppose something in the read/write rules has changed, but before digging into the issue I thought I'd ask the forum.

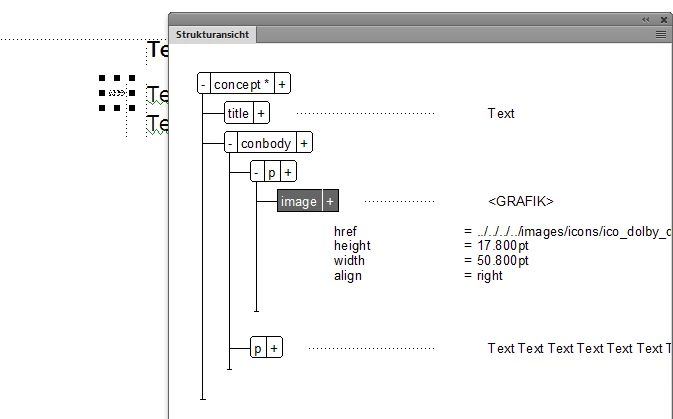

We have migrated from FM2015 to 2017 and now images in paragraphs display very small. As you can see in the screenshot, this image is about 50pt wide but the size properties are ignored. Manual resizing is lost when the file is saved. Any ideas?

Structured

This topic has been closed for replies.

Matt-Tech Comm Tools

Community Expert

Have you checked to make sure your structured application is being used and is using your width attribute to size the image?

-Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant

RsflAuthor

Inspiring

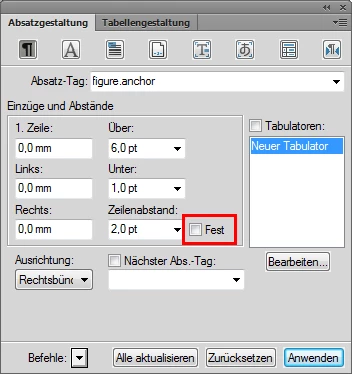

We found out that it wasn't the R/W rules, but rather FM2017 interprets a style setting of the anchor paragraph different than 2015 (and the previous versions) did. We had to remove the setting for a fixed line height as shown below.

Matt-Tech Comm Tools

Community Expert

Thanks for sharing...can you please report that to adobe.com/go/wish ?

-Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant
