FrameMaker 2017 Structured for graphic how do you create fm.title "Figure 1 Sheet 1 of 10"

Rhonda,

Here's a way to make this work with minimal changes to the original EDD...

1. First go to the element definition for fm.title.
2. Add two attribute definitions:

3. Delete the Autonumber format context rule.

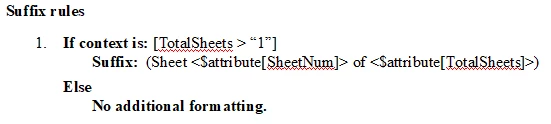

4. Add these suffix rules:

5. Now go to the element definition for figureTitle and change the autonumber format to: F:Fig <n+>
6. Save the EDD and import it into your test document. You will see that if you add a sheet number to the SheetNum attribute it will display that after the figure title text. However it is only visible if the total number of sheets is added to the TotalSheets attribute and the number of sheets is greater than 1.
7. This update must be repeated for all EDDs and templates that include the graphic structure.

You may wonder why I used a suffix for this. It's because it's easier to get the best results. I would perhaps add a tiny script that automatically refreshed the new attributes. Then it would be easy to prevent incorrect sheet numbers.

I hope this helps? The original plan was to include this functionality in the S1000D application, but somehow it was omitted.

Ian

Rhonda,

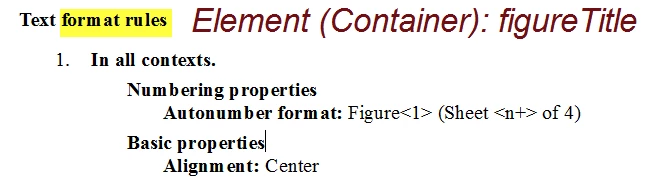

This is not correct. There are three errors here:

1. You have attempted to hard-code the figure number to 1, it must be an auto-incrementing building block such as <n+>.
2. The sheet number has to be restarted by the Figure number so lets use < ><n+>.
3. You have also hard-coded the number of sheets to be 4 which will be wrong most of the time.

To make this work in the real world we need to consider a scheme for the auto-number like this:

• For every Figure start with a series identifier F:
• For figure numbers use the first position F:<n+>< =0>
• For sheet numbers use the second position F:< ><n+>

The problem comes with the counting of total sheets. It's probably going to have to be added manually unless you do some scripting to test for the total number of sheets.

One last part is that the sheet count is normally omitted unless there are multiple sheets for a graphic.  That can be handled by some additional EDD context rules.
