Graphic frames

Hi Colin, your issue will only take a couple of minutes to fix, but since it could be a half-dozen things, it'll be hard to describe. If you'd like, I can set up a quick screen share to fix one or two of your frames. Click on my username and send me a direct message if you'd like me to take a peek at it.

-Matt

Hi @Colin5F98:

Let me start by saying that FrameMaker is hard to teach yourself, and hard to teach via Forum posts. If you have a lot to do in the document, conisder investing in training, which is the best way to get up and running quickly.

That said, In FrameMaker, pages add themselves as you add/adjust content—there is an command to add a page (Insert > Add Disconnected Page) but you want to avoid it unless you have a specific reason to use it. Disconnnected pages cause all sorts of issues for new users. Hopefully, you have not yet gone down that road.

Instead, if you need to add a new page of content between pages 4–5 for example, you click your mouse at the top of page 5 and just add the content (type, import, copy/paste). This new content pushes the original content from page 5 to page 6, and the rest of the document reflows. The page you shared should work the same way, but there's a twist.

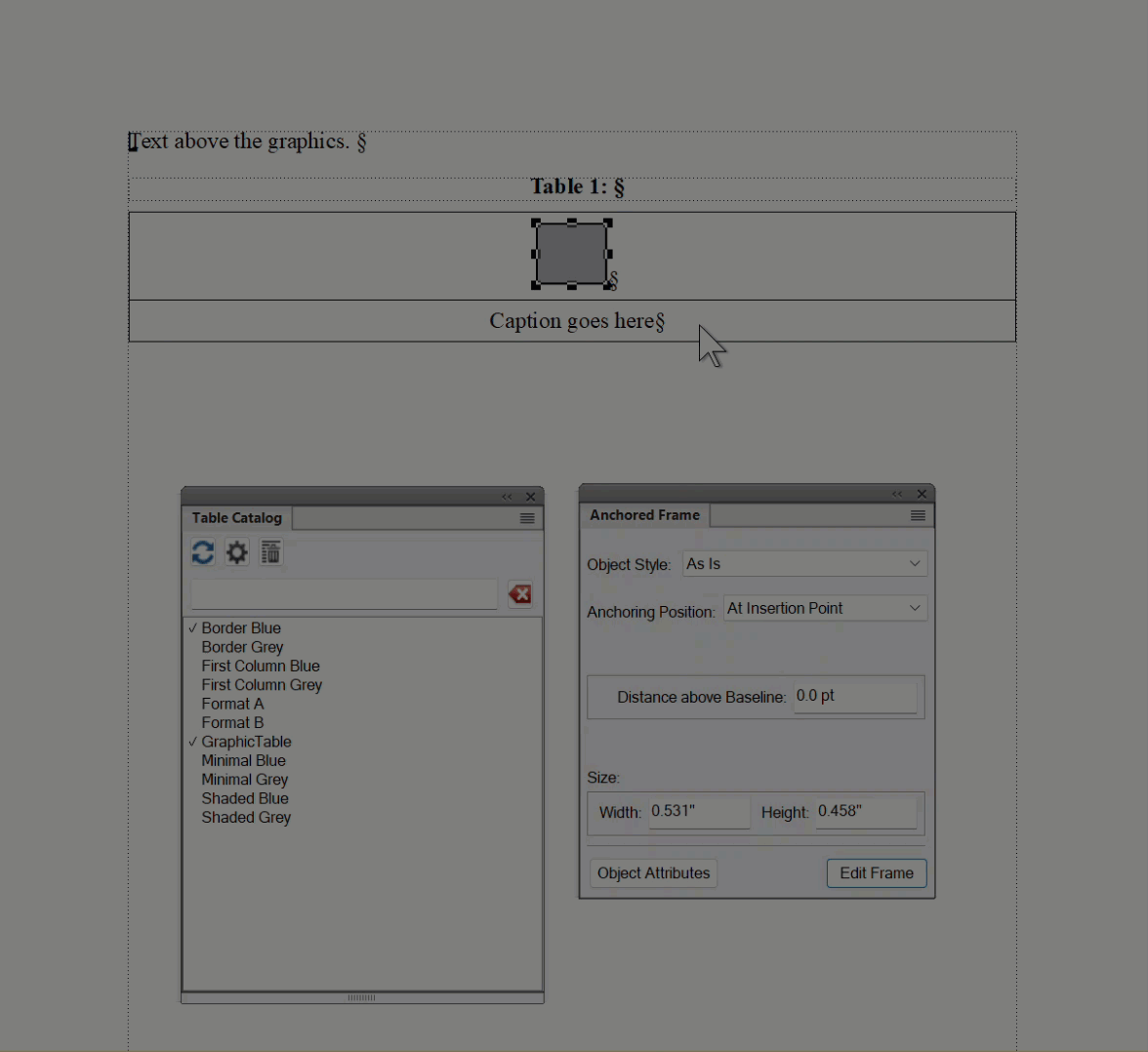

There are multiple ways to place graphics. It looks like the author of your document created a 1-column, 2-row table for the graphics, with the borders hidden so you can't tell that it is a table. This approach can be used to make sure the image in the first table cell stays with the caption in the cell underneath. The table structure is why you can't just drag it out to make it taller. Instead, focus on the frame in the first cell—you can increase the height of the frame, which should in turn increase the height of the table row. (Should because one can set a maximum row height.) Assuming that the frame is anchored at insertion point, you may need to also adjust the distance above baseline after you adjust the frame. Now, as per Bob, I don't see an image inside either frame—just a gray box. This usually means that FrameMaker has lost the linked image. Hopefully, you still have the images and can just reimport them.

So many variables on what seems to be a simple and straightforward question, and this is why I'm saying attending training is a worthwhile investment if you want to use FrameMaker.

~Barb

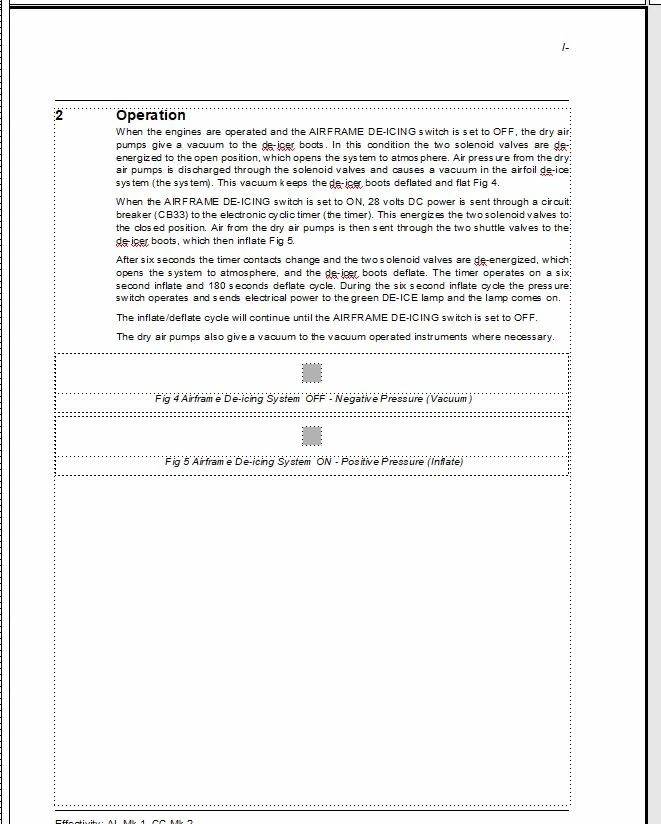

Be sure to turn on Text Symbols for screenshots. It's not at all clear what all those borders are bordering.

The gray squares suggest missing images, which raises the question of whether the images in the original FM5.5 doc were copied-into-doc, or imported-by-reference.

If the former, and still present in the FM5.5, it may require some skill to recover them.

If the latter, do they still exist, and are the files in the same file system hierarchy relationship to the current instance of the document?

Is the document structured or unstructured? Which of the frames are you resizing? Thanks.
