Gridlines printed in PDF from FM 2020 Version: 16.0.4.1062

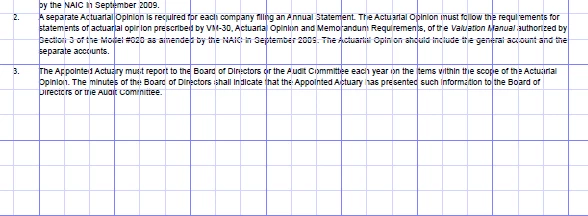

This must be simple fix, because I don't see this covered anywhere in the forum. Why does my PDF from FM 2020 have gridlines? I don't even have gridlines on in the project. Must be missing something simple somewhere...





    This topic is closed to new replies. Start a new post to keep the conversation going.
    Barb Binder
    Barb BinderCorrect answer
    Community Expert
    Nov 7, 2022 1:57 AM UTC

    Hi @bronxguys02:



    You can enable/disable the gridlines in Adobe Acrobat using View > Show/Hide > Rulers & Grids > Grid. This has nothing to do with the FrameMaker grid. Once on in Acrobat, they will remain on for all files, until you turn them back off.



    ~Barb

    ~Barb at Rocky Mountain Training
    View reply

    7 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    Nov 7, 2022 11:08 PM UTC

    We are always happy to help, @bronxguys02!



    ~Barb

    Translate
    ~Barb at Rocky Mountain Training
    Barb Binder
    Community Expert
    Barb BinderCommunity ExpertCorrect answer
    Community Expert
    Nov 7, 2022 1:57 AM UTC

    Hi @bronxguys02:



    You can enable/disable the gridlines in Adobe Acrobat using View > Show/Hide > Rulers & Grids > Grid. This has nothing to do with the FrameMaker grid. Once on in Acrobat, they will remain on for all files, until you turn them back off.



    ~Barb

    Translate
    ~Barb at Rocky Mountain Training
    bronxguys02
    bronxguys02Author
    Known Participant
    Nov 7, 2022 1:30 PM UTC

    Thanks, Barb! 🙂

    Translate
      Bob_Niland
      Community Expert
      Bob_NilandCommunity Expert
      Community Expert
      Nov 5, 2022 1:29 AM UTC

      What have you for
      View » Grid Lines

      Translate
      K.Daube
      Community Expert
      K.DaubeCommunity Expert
      Community Expert
      Nov 5, 2022 5:25 PM UTC

      Even if View > Gridlines would be ON, such a pattern can not be produced.

      I assume that there is some 'layer' exists in the master pages which should be 'switched' off by settings in the coulour view.

      I use this method for arbitrary guiding lines when constructing nomograms etc.

      See https://www.daube.ch/docu/files/compendium.pdf#page=249

      Translate
        Bob_Niland
        Community Expert
        Bob_NilandCommunity Expert
        Community Expert
        Nov 6, 2022 3:50 PM UTC

        Thanks Klaus. I haven't used Grid Lines since the 90s, where I found them to be lacking. It appears the feature hasn't been enhanced since. You can only select from a limited number of spacings, no major-minor as seen here (much less ⅓ repeats), and then, inserting an Anchored Frame introduces it's own new grid, un-aligned to the page grid.



        So this does look like something deliberately authored. In addition to perhaps being some element controlled by Color Views, it could also be Conditional content on a Master Page, or even unexpected direct Master Page content controlled by AMP.

        Translate
