Hello. When printing manuals to PDF, though ok on FM, the PDF has all graphics moved and logos gone.

Hello.

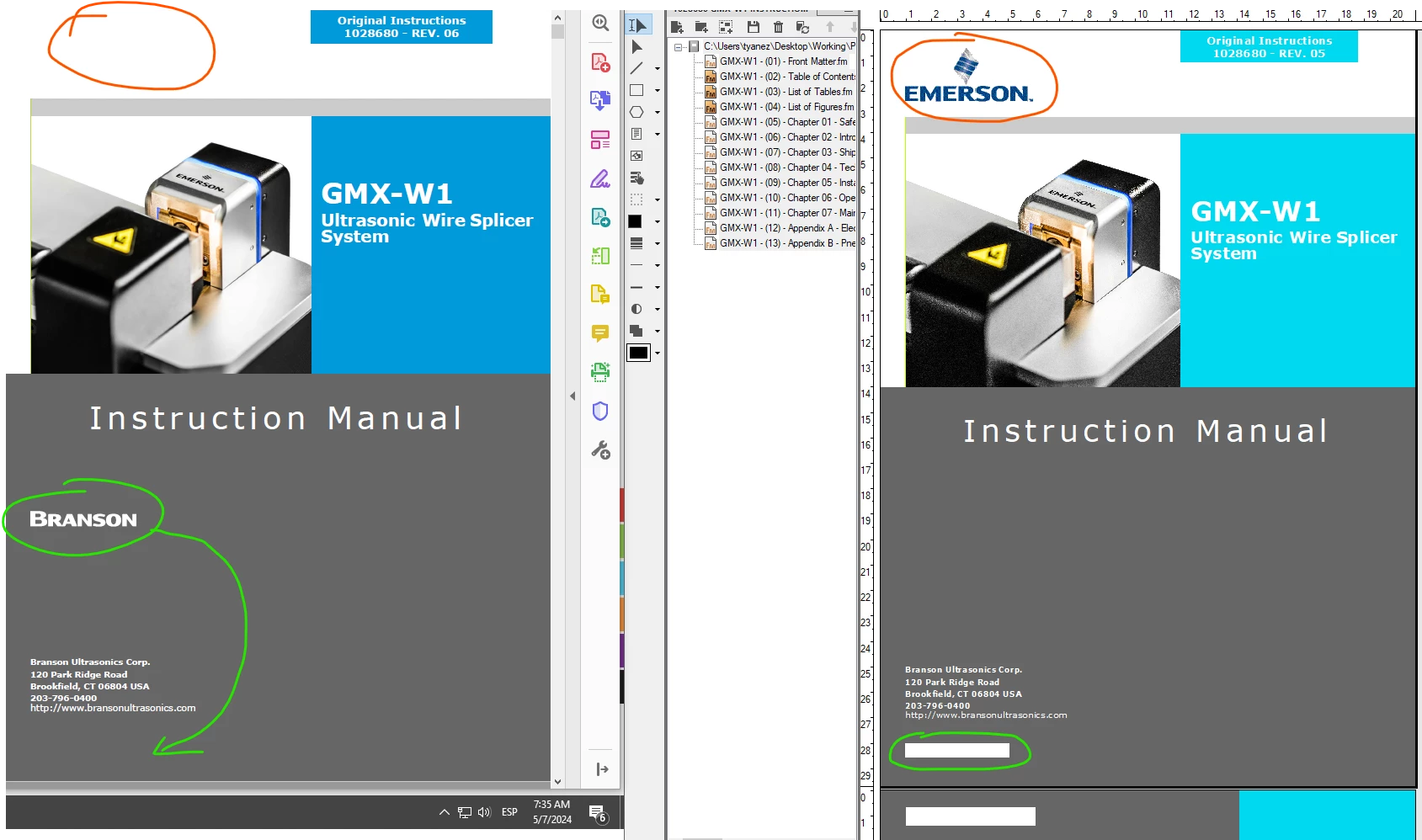

I make user manuals with FrameMaker, and I am working on a manual, when the PDF is printed, all graphics are moved. There is also a logo that should be on every page and it's just gone, also most text from the cover is out of place.

I had been working on other files and this is the only one with this problem, but I don't know how to fix it.

Thank you.

      This topic is closed to new replies. Start a new post to keep the conversation going.
      Barb Binder
      Barb BinderCorrect answer
      Community Expert
      May 9, 2024

      Hi @Tatiana37232569dhc5:



      This is odd, but I see it came up once before. I don't see that there was a clear resolution other than using Print to PDF instead of the normally preferred Save as PDF.

      https://community.adobe.com/t5/framemaker-discussions/save-as-pdf-causes-vector-graphics-to-be-displaced-from-frame/td-p/13835331



      ~Barb

      ~Barb at Rocky Mountain Training
      View reply

      10 replies

      Barb Binder
      Community Expert
      Barb BinderCommunity ExpertCorrect answer
      Community Expert
      May 9, 2024

      Hi @Tatiana37232569dhc5:



      This is odd, but I see it came up once before. I don't see that there was a clear resolution other than using Print to PDF instead of the normally preferred Save as PDF.

      https://community.adobe.com/t5/framemaker-discussions/save-as-pdf-causes-vector-graphics-to-be-displaced-from-frame/td-p/13835331



      ~Barb

      Translate
      ~Barb at Rocky Mountain Training
      Tatiana31459230l4t4
      Participant
      May 9, 2024

      Barb, I printed to PDF instead and the problem is gone. 😄

      Thank you!

      Translate
        FrameMaker-dk
        Community Expert
        FrameMaker-dkCommunity Expert
        Community Expert
        May 7, 2024

        Might it be that your graphics are SVG? And made from Adobe Illustrator?

        Translate
        Bjørn Smalbro - FrameMaker.dk
          Community Expert
          Winfried RengCommunity Expert
          Community Expert
          May 8, 2024

          I encountered an SVG issue several times:

          When there was text with a space, then the text formatting was changed. As far as I remember, the text was not moved.



          However, in earlier releases of FrameMaker 2022 there was a bug which moved text and other objects in SVG files around. This was fixed in update 2 or 3.

          Tatiana, can you check the exact version number? You find it in the Help menu in About.



          I still use EPS for drawings which might cause problems in SVG. I cannot check all of my drawings, if each single line is in its place.

          Translate
          Bob_Niland
          Community Expert
          Bob_NilandCommunity Expert
          Community Expert
          May 7, 2024

          Looks like there is a color management issue as well.

          The settings for Save-as-PDF might need a look, and using the Publish path may give you more control (such as ensuring that CMYK vs. RGB is under control).
          Where are the "every page" graphics located? (Body or Master page)
          What file format are they? (e.g. SVG, EPS, PNG, JPG)

          Translate
          Tatiana31459230l4t4
          Participant
          May 9, 2024

          They are in the reference page, but the graphics that are on the Body pages where also displaced.

          Translate
          Community Expert
          Winfried RengCommunity Expert
          Community Expert
          May 7, 2024

          Hi,

          And more questions: Had this worked before and this issue occured now?

          Or is this a new issue?

          Do you have other files, where this works?

          I suspect that this has something to do with the runaround properties of your graphics. When runaround is set, then text on top of this graphics object will be moved.

          Select your graphics objects (the one which is still in place and not the one which was moved) and in the Graphics menu click Runaround Properties.

          Here is the description in the online help:

          https://help.adobe.com/en_US/framemaker/using/using-framemaker/FrameMaker-2022/user-guide/WSd817046a44e105e21e63e3d11ab7f7960b-7f42_ver12.0.html?rhhlterm=runaround&rhsyns=%20

          Best regards, Winfried

          Translate
            Jeff_Coatsworth
            Community Expert
            Jeff_CoatsworthCommunity Expert
            Community Expert
            May 7, 2024

            Let's get some basics - what version of FM? All patched up? How are you creating the PDFs (there are a couple of ways)?
            oh, and ps - don't attach images to your posts - use the "Insert Photos" icon in the web interface to stick them in the body of your posts (less work for casual viewers to see what's going on).

            Translate
            Tatiana37232569dhc5Author
            Participant
            May 7, 2024

            It's FrameMaker 2022.

            I am using File - Save as PDF. I do the same for all my other manuals and this is the only one that has that issue.

            Translate
