hotspot graphic

  • August 1, 2016
  • 2 replies
  • 1311 views

After loading the cgm file into frame maker i have to link the hot spot in the graphic to the text part in the frame maker file.

I am not getting the hot spot link defined by the illustrator in the graphic.

Sample cgm file in the below path

C:\Program Files\Adobe\AdobeFrameMaker12\Structure\xml\S1000D\Resources\install\Bike\samples\illustr ations\ICN-S1000DBIKE-AAA-D000000-0-U8025-00536-A-04-1.cgm

Thank you in advance

Anil

    This topic has been closed for replies.
    Correct answer Arnis Gubins

    Hotspots imported from CGM graphic (or a PDF) unfortunately get stripped out by FM's import filters [known issue].

    There was vigorous discussion in November of 2012 by the beta-testers about this after the FM11-release for inclusion in FM12, but it looks like nothing much came of it [ i.e. too much work or too difficult for the engineers  ].

    2 replies

    bnanilgowdaa
    bnanilgowdaaAuthor
    Participating Frequently
    August 2, 2016

    Thank you very much for the confirmation, that hot spot will not survive by importing the cgm to framemaker.

    Arnis Gubins
    Arnis Gubins
    Inspiring
    August 1, 2016

    You need to first define the target location of the link, i.e. you insert a "newlink target-name" hypertext marker at the destination location.

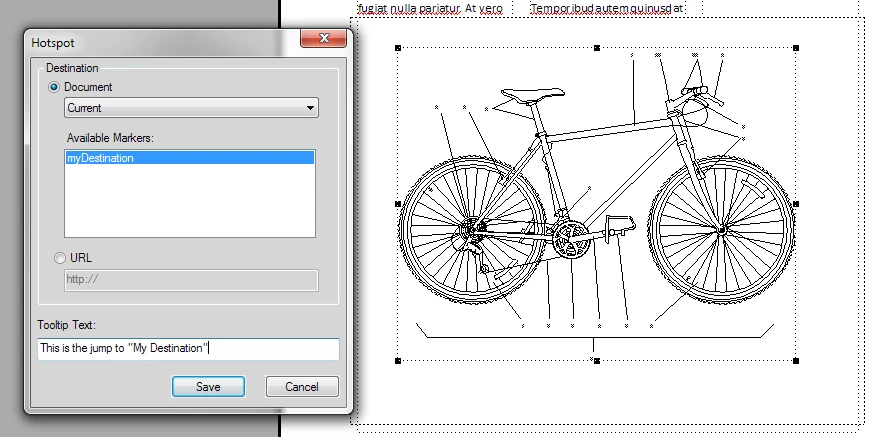

    Then you select the imported graphic and use either the context or Graphics menu to select the HotSpot Properties... option.

    Finally select the desired destination marker (that you already have inserted) to make the link.

    Bob_Niland
    Community Expert
    Bob_NilandCommunity Expert
    Community Expert
    August 1, 2016

    Arnis, if this is just a continuation of this earlier thread:

    hot spot in frame maker 12 for CGM file

    then the issue is that the CGM already has hot spots, but they are not surviving into the workflow.

    Arnis Gubins
    Arnis GubinsCorrect answer
    Inspiring
    August 1, 2016

    Hotspots imported from CGM graphic (or a PDF) unfortunately get stripped out by FM's import filters [known issue].

    There was vigorous discussion in November of 2012 by the beta-testers about this after the FM11-release for inclusion in FM12, but it looks like nothing much came of it [ i.e. too much work or too difficult for the engineers  ].
