How to create a bracket to use as a pointer to an area of an image? (rather than an arrow pointer)

Hi Aaron: I like Winfried's idea of drawing the shapes within FrameMaker. That way, they are easier to adjust at the last minute.

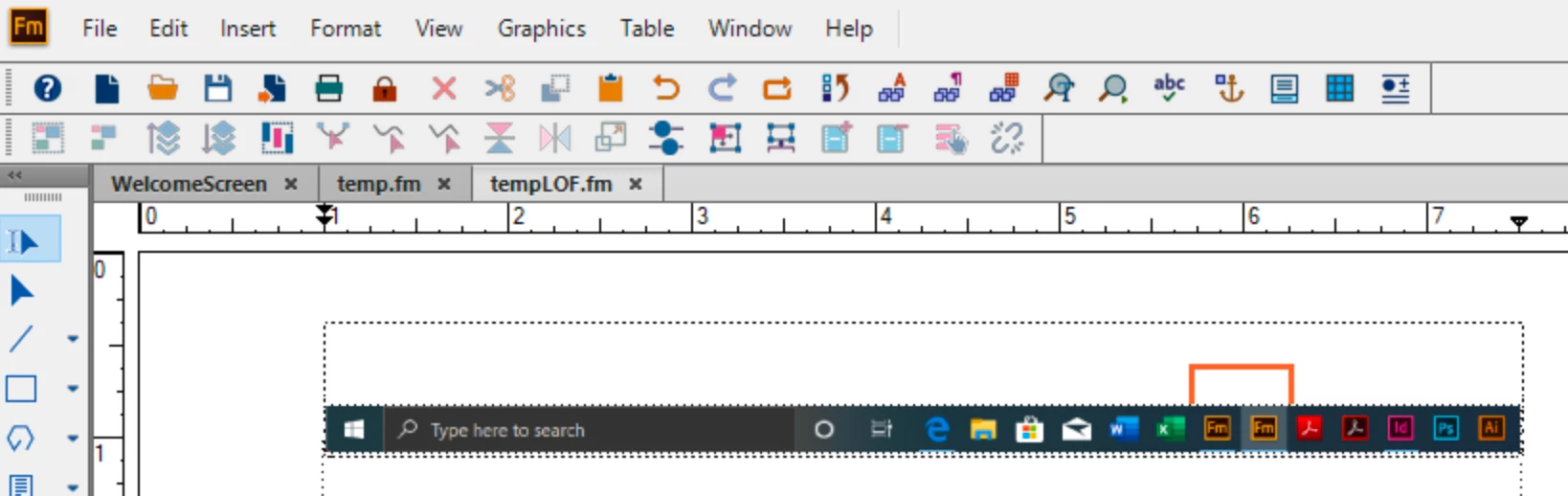

Here's one more idea to ponder—instead of drawing the bracket as three lines, or trying to delete part of a rectangle—how about using an entire rectangle?

And then Graphics > Arrange > Send to Back?

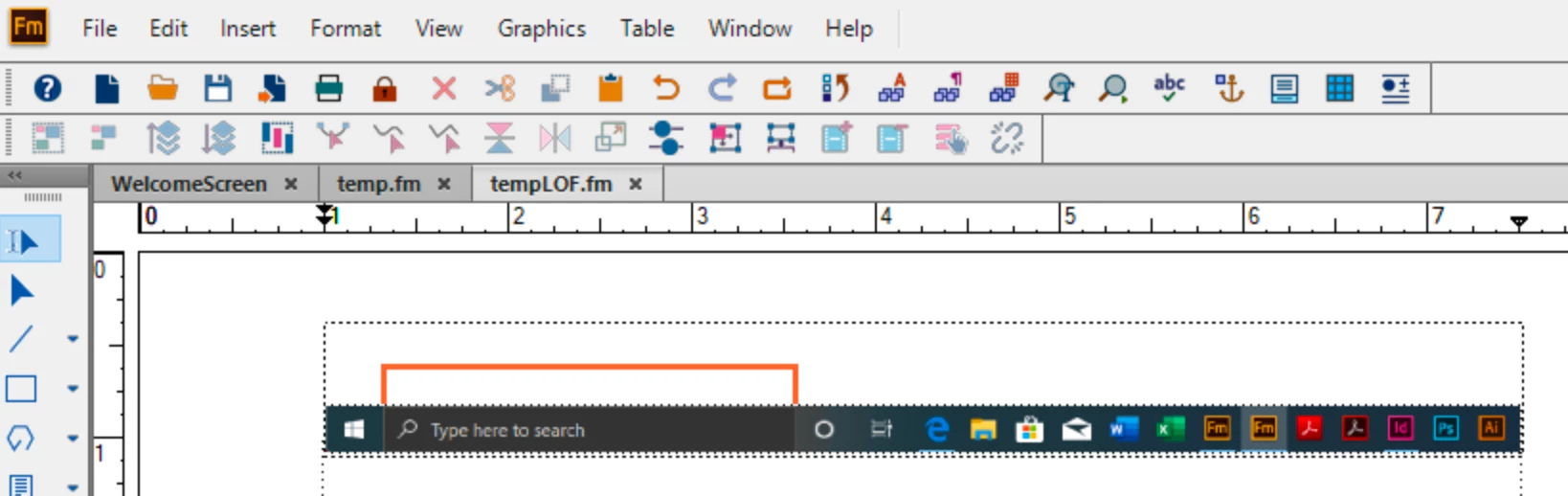

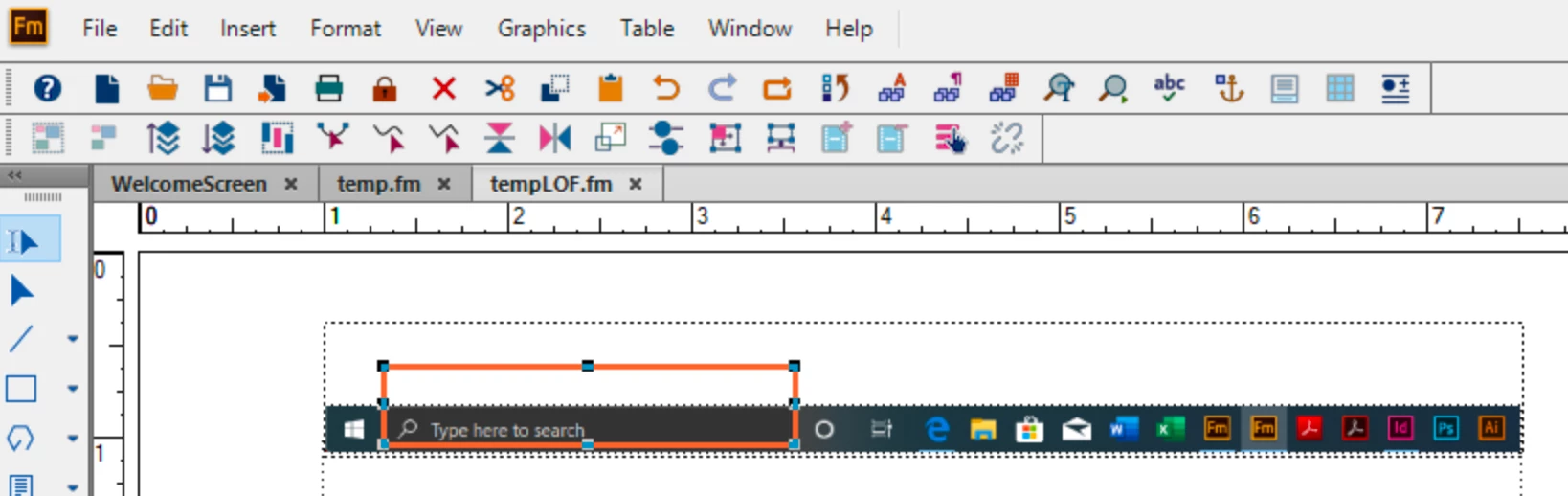

You could create a reference page to hold the various shapes and then go grab one when you need it.  Editing would be easy:

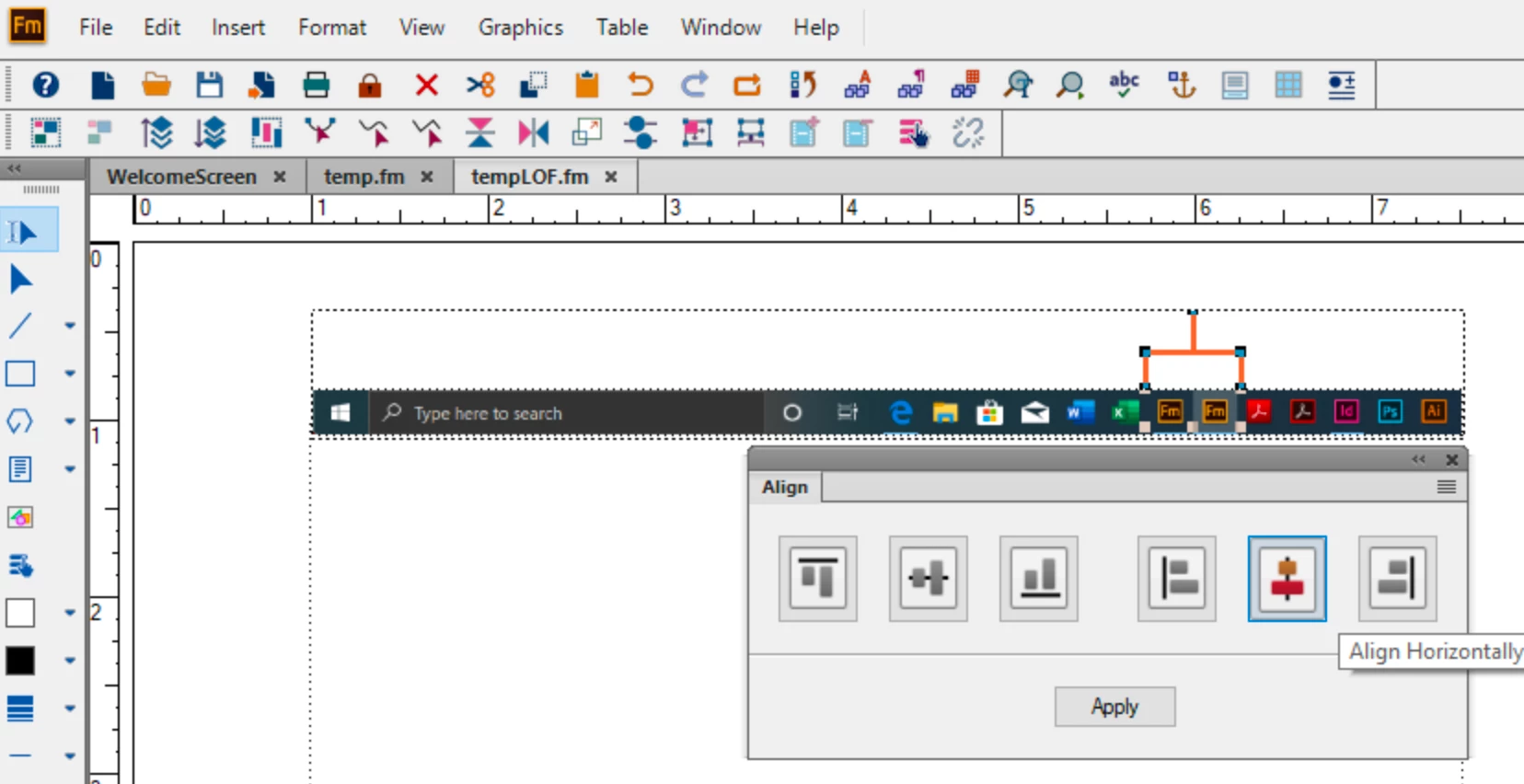

And you can use the Align panel to quickly position the stroke that comes off the top after you resize it:

~Barb

Hi,

Yes. In FrameMaker you have to draw several lines. I prefer to do this in FrameMaker, so that such lines or call-outs always have the exact same dimensions (line width, etc.). I often use a drawing in different scalings. When I would create the call-outs in my drawing application (Corel Designer), then the call-outs would be different. Not good.

Best regards

Winfried

If you're using FrameMaker's graphics tools, you'll have to draw 4 lines to replicate what you have in your graphic or use the polyline tool. Frame doesn't come with preinstallated graphic shapes.

Personally, I use Visio to create any graphic that needs callouts, and even then I draw from scratch because I'm not fond of Visio's stencil braces/brackets. YMMV.
