How to create Exception to TblTitle in Table Format for MIF file

HI Winfried,

First of all, thanks so much for replying.

Since I'm not sure what you mean about the include syntax, I've copied most of the smaller MIF file, (not the  template MIF) to this post below the line. You can probably use any template file  that has the same para and table tag formats to test.

The template MIF file (5_XS_Registers.mif - see second line of code) was created by opening my FM template file and simply saving it as a MIF. Then I removed the <Tbls> and deleted the Text Flow associated with the TextRect ID of the first body page (this process is described in "Including Template Files" in the MIF manual) and attached that TextFlow to this MIF file copied below.  (Please let me know if this is not clear enough).

My problem is that I would like to manually populate the numbered ParaTag: TableRegTitle - as you can see, it's populated in the MIF, but does not show in FM (see image).

If you need the template file - then I'll have to email it - I cannot upload a MIF file to this forum, it's not supported.

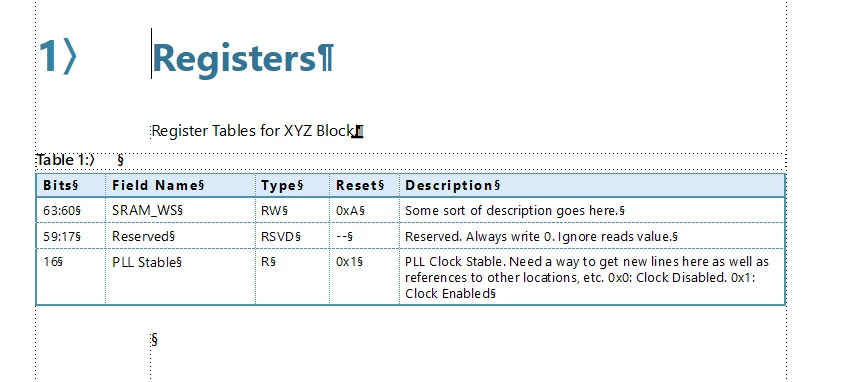

This is the result of the code below when opened in FM. Here, I've removed 2 of the body rows, so you should end up with a table  that has a single header row and a single body row.

<MIFFile 2017> # Generated by FrameMaker 2017
include (5_XS_Registers.mif)

<TextFlow
<TFTag `A'>
<TFAutoConnect Yes>
<TFSideheads Yes>
<FlowDir INHERITLTR>
<Notes
> # end of Notes
<Para
<Unique 1029499>
<PgfTag `0 Heading'>
<PgfNumString `1\t'>
<ParaLine
<TextRectID 8>
<String `Registers'>
> # end of ParaLine
> # end of Para
<Para
<Unique 1041062>
<PgfTag `BodyAfterHeading'>
<ParaLine
<TextRectID 8>
> # end of ParaLine
> # end of Para
> # end of TextFlow

#: Info above this line does not change - it should appear once (think of it as a header for the file
# "Tbls" holds a number of tables (Tbl) each with its own "TblID" tagged with Table Format Register. The script should be creating a number of different Tbl's. The TblID number is used below in conjunction with the ATbl - which is its anchor. You can have a list of ATbl at the bottom (each with its own ID number).

<Tbls
<Tbl
<TblID 11>
<TblFormat
<TblTag `Register'>
<TblTitle
<TblTitleContent
<Para
<PgfTag `TableRegTitle'> # Forces lookup in Paragraph Catalog.
<ParaLine
<String `Example Register1 Name (Ex_Reg1_SN)'> #this string is missing when opening in FM (see image)
> # end of ParaLine
> # end of Para
> # end of TblTitleContent
> # end of TblTitle
> #end of TblFormat


<TblH  # Header Row
<Row
<Cell
<CellContent
<Para
<PgfTag `CellHead'>
<ParaLine
<String `Bits'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellHead'>
<ParaLine
<String `Field Name'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellHead'>
<ParaLine
<String `Type'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellHead'>
<ParaLine
<String `Reset'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellHead'>
<ParaLine
<String `Description'>
>
> # end of Para
> # end of CellContent
> # end of Cell

> # end of Row
> # end of TblH

# begin Body Rows
<TblBody
<Row
<Cell
<CellContent
<Para
<PgfTag `CellBody'>
<ParaLine
<String `63:60'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `RegisterField'>
<ParaLine
<String `SRAM_WS'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellBody'>
<ParaLine
<String `RW'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellBody'>
<ParaLine
<String `0xA'>
>
> # end of Para
> # end of CellContent
> # end of Cell

<Cell
<CellContent
<Para
<PgfTag `CellBody'>
<ParaLine
<String `Some sort of description goes here.'>
>
> # end of Para
> # end of CellContent
> # end of Cell
> # end of Row

> # end of TblBody
> # end of Tbl
> # end of Tbls

<Para
<PgfTag `Body'>
<ParaLine
<String `Register Tables for XYZ Block.'>
<ATbl 11>

> # end of ParaLine
> # end of Para
