How to set chapter names in the HTML Help yellow navigation panel?

  • January 31, 2020
  • 5 replies
  • 831 views

Using FM2019, I'm generating HTML Help output. At the top of the generated HTML Help document, there's yellow navigation panel where you can click on a chapter (.fm file) to go there.

However, they all have the same title, the name of the document (FM book common.) I want chapter titles instead, the same ones as found in the contents tab to the left.

How can I adjust this?

This topic has been closed for replies.
Correct answer Hezy A

I think the answer is that the help is taking information for each chapter from the file information in the Frame file.



i.e. go to the frame maker book, open the file, or right click on it in the book. Choose File Info, and in the Title field, type what you want to appear along the top of the .chm.





5 replies

Jeff_Coatsworth
Community Expert
Jeff_CoatsworthCommunity Expert
Community Expert
February 3, 2020

CHMs - who knew?!? 🤣

Hezy A
Hezy A
Inspiring
February 3, 2020

Indeed, .chm is less supported and cannot be opened in every case. Why did you choose to use this format rather than responsive HTML  (which also looks nicer?)



(We had one application in the past with chm, as this was an old application, and the help had always been chm.  We also had old WinHelp files once....)

Almtuna
AlmtunaAuthor
Inspiring
February 3, 2020

I wouldn't mind switching to responsive HTML, but our Windows documentation contains several chm files. Some of them come from FrameMaker, some of them are generated from other tools, which I have no control of. And they are all merged together into one documentation set.



Hezy A
Hezy ACorrect answer
Inspiring
February 2, 2020

I think the answer is that the help is taking information for each chapter from the file information in the Frame file.



i.e. go to the frame maker book, open the file, or right click on it in the book. Choose File Info, and in the Title field, type what you want to appear along the top of the .chm.





Almtuna
AlmtunaAuthor
Inspiring
February 3, 2020

Thank you very much, it works!

(And also some other stuff work better now!!!)



Jeff_Coatsworth
Community Expert
Jeff_CoatsworthCommunity Expert
Community Expert
January 31, 2020

Ah, that looks like a "browse sequence" - not sure how you configure that in CHMs.

Jeff_Coatsworth
Community Expert
Jeff_CoatsworthCommunity Expert
Community Expert
January 31, 2020

Can you post a screenshot of the CHM output that you're talking about?

Almtuna
AlmtunaAuthor
Inspiring
January 31, 2020

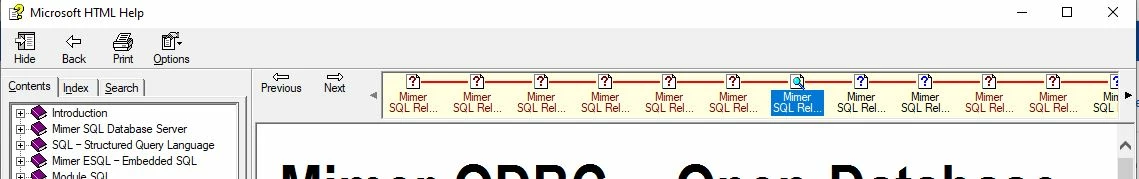

To the left, the contents tab has the correct chapter titles, "Introduction" etc. (Each chapter is a separate fm file.)

At the top, the yellow panel has the document name for each chapter. I'd like to have the chapter titles instead, to simplify navigation. (Alternatively, can I just remove this yellow panel somehow? It doesn't add much.)

Jeff_Coatsworth
Community Expert
Jeff_CoatsworthCommunity Expert
Community Expert
January 31, 2020

IIRC you use your book TOC to create the TOC in your output.

Almtuna
AlmtunaAuthor
Inspiring
January 31, 2020

The book TOC? The TOC works fine when generating pdf, HTML, and also the HTML Help contents tab. It's just the yellow panel at the top of the HTML Help that instead of chapter titles has the same document title for all chapters.
