February 5, 2019
Question

How to set default border to images?

  • February 5, 2019
  • 4 replies
  • 1502 views

We use the same border for each image we add into our documentation. Is there a way to set a border to default so we don't have to manually apply it to each image?

This topic has been closed for replies.

4 replies

Barb Binder
Community Expert
Community Expert
January 26, 2021

@Kenneth5FBC:



Is this also your post?

httpss://community.adobe.comt55/framemaker/object-style-image-border-does-notresizee-to-each-new-image/m-p/11784533?page=1M690411



There is no As Is setting for image size.  I also tried leaving it blank, but then the border does not appear at all.

Hopefully, that is what you are looking for: leave the width and height dimensions blank, but specify the stroke width and color.



~Barb

~Barb at Rocky Mountain Training
mnankin
Participant
August 10, 2020

I created an Object Style, but that style has Dimensions. The images in the document are all different dimensions.



Is there a way to create a style with Stroke and Fill properties that would also fit for multiple dimensions?

Community Expert
August 11, 2020

Hi,



You do not need to fill in all available options. You do not need to set any dimensions.

Just set the stroke and the fill properties or whatever you need.



Best regards



Winfried

Barb Binder
Community Expert
Community Expert
February 5, 2019

Hi Rachel:

It's definitely via Object Styles, but Object Styles are very quirky so that may be why you didn't figure it out on your own.

  1. Select one of the frames

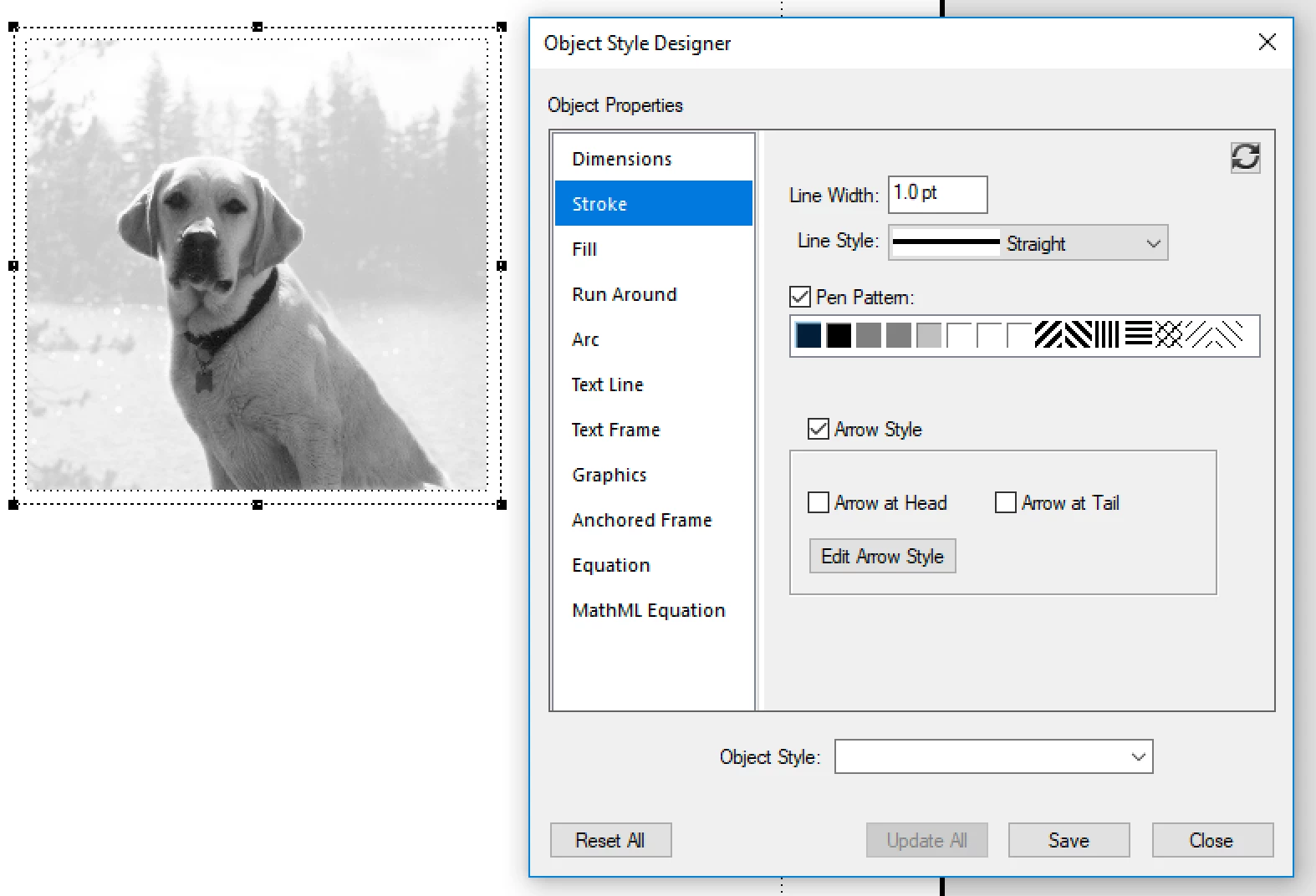

  2. Graphics > Object Style Designer

  3. Set the Line Width, Line style and assuming you want a solid line, Pen Pattern 1.

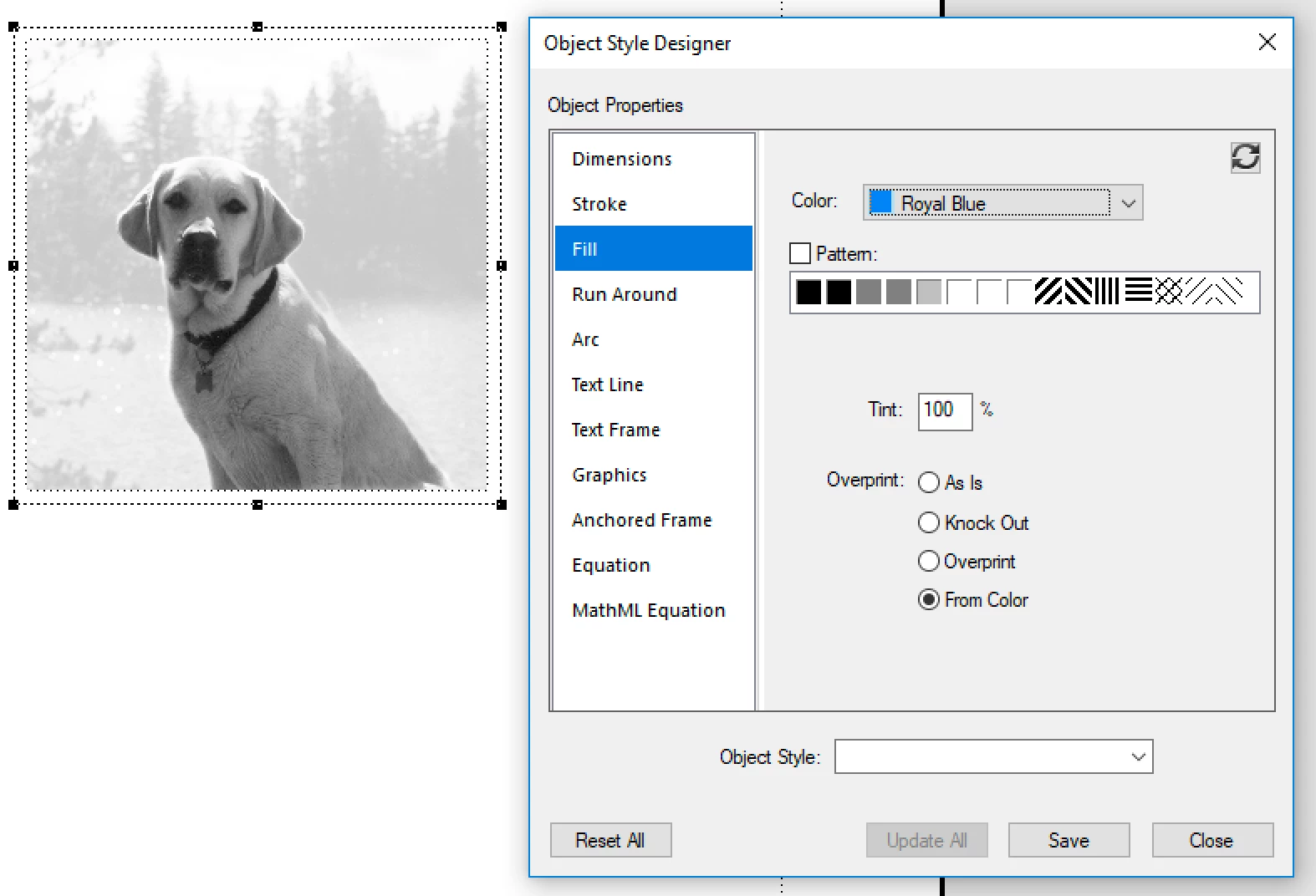

  4. Optionally, change the color:

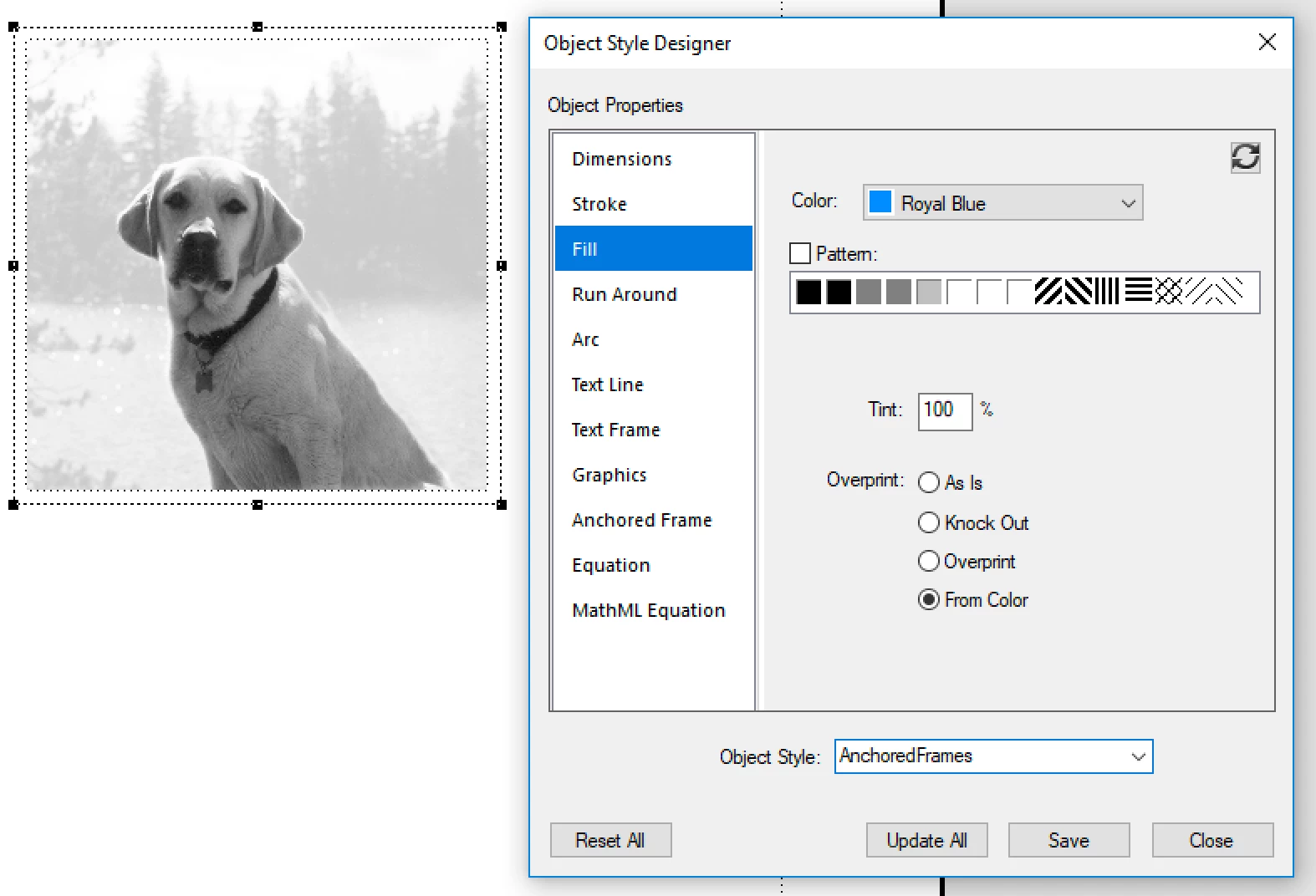

  5. Type in an Object Style name, click on Save, then Close.

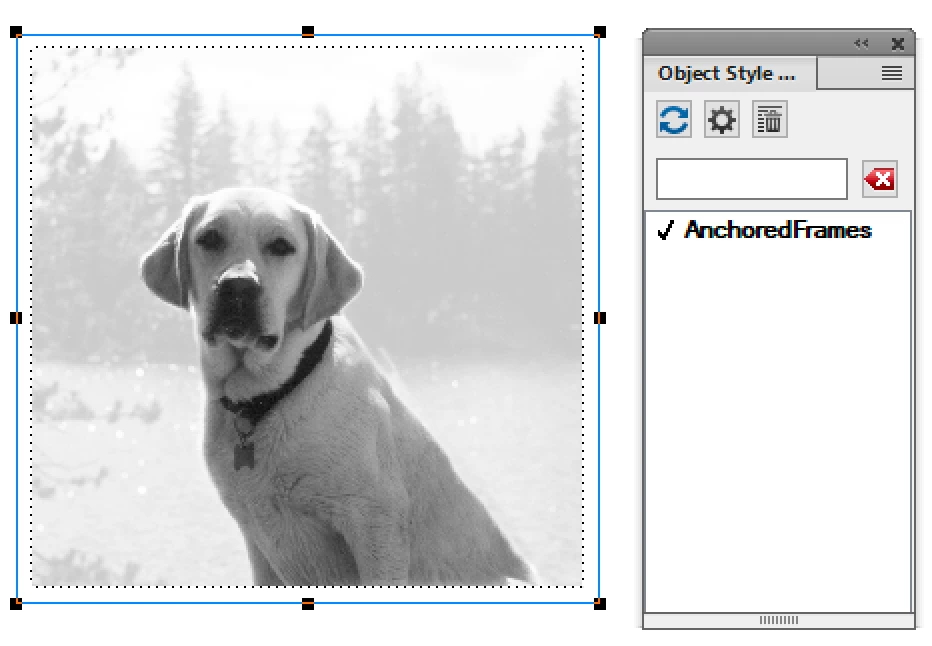

  6. Graphics > Object Style Catalog


  7. With the frame still selected, click on the new object style to assign it to the selected frame (and all of the other frames).

~Barb

~Barb at Rocky Mountain Training
Jeff_Coatsworth
Community Expert
Community Expert
February 5, 2019

Haven't tried it myself (don't really use images much), but wouldn't that be part of the Object Styles feature?

rachelt14433776
Known Participant
February 5, 2019

We didn't see a setting within that feature to apply a default setting. We're hoping we're missing something.
