Inconsistent Numbering properties in FrameMaker Book

  • August 16, 2024
  • 3 replies
  • 896 views

Hi, I have an issue with numbering in a book. I had to change chapter numbering from 4 to 2, which in principle was working. I followed this navigation:

 Format --> Document --> Numbering --> Chapter --> Chapter Number,  and changed the chapter number from, 4 to 2 for the complete book.

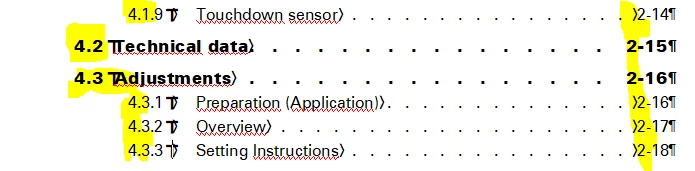

It did not work for the numbering in the table of content and the page numbering in the body file. In both, it still is "4"



I've read [other posts] and see that my "Format" tab does not provide the "Pagination" option. Although I use the German language version of FM, I think I should have found it by now after trying all the obvious options.



Grateful for any help!



    This topic has been closed for replies.

    3 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    August 18, 2024

    Hi @Beate5E27:



    This is a conundrum—it appears that the chapter numbers are updating correctly in front of the TOC entries but not in front of the page numbers for the same paragraph.



    This will be most easily solved if you can share the one file and the TOC so that we can exactly how this was set up (feel free to save a copy of the file and remove all content, except for the few headings showin in your screen shot). You can put the files on a file sharing server like dropbox and post a link here (public) or message me directly (private). You can also send it to my email: barb at rockymountaintraining dot com.



    There are quite a few combinations of manual numbering, auto-number building blocks and variables, and it will take a fair amount of time and multiple screen shots from you to see all of the possiblities and figure this out. Sharing the files will give you the quickest response.



    ~Barb

    ~Barb at Rocky Mountain Training
      Matt-Tech Comm Tools
      Community Expert
      Matt-Tech Comm ToolsCommunity Expert
      Community Expert
      August 16, 2024

      Are you using either the chapnum and volnum variables? It looks like it would help to use either or both to acheive what you are looking for.

      If that sounds uncomfortable, you may need to set up some user variables to control the organization and numbering.

      -Matt Sullivan, FrameMaker Course Creator, Author, Trainer, Consultant
        A
        andreas_5547
        Inspiring
        August 16, 2024

        Hi Beate,

        did you update the book after you changed the numbering?

        Pagniation option is a little bit tricky, because it depends on the current selection:

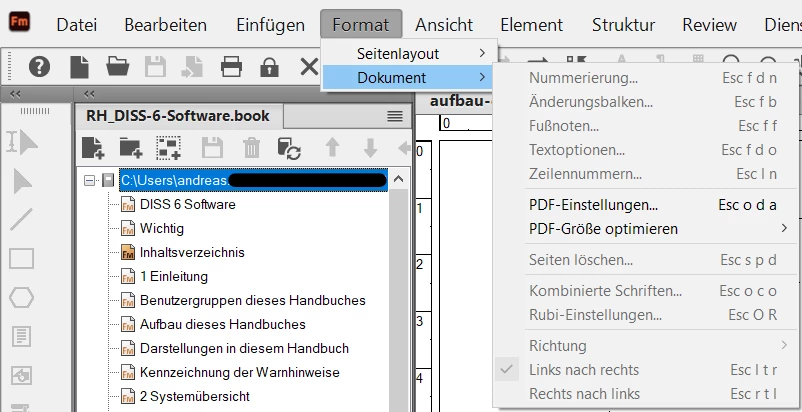

        If the book is selected:

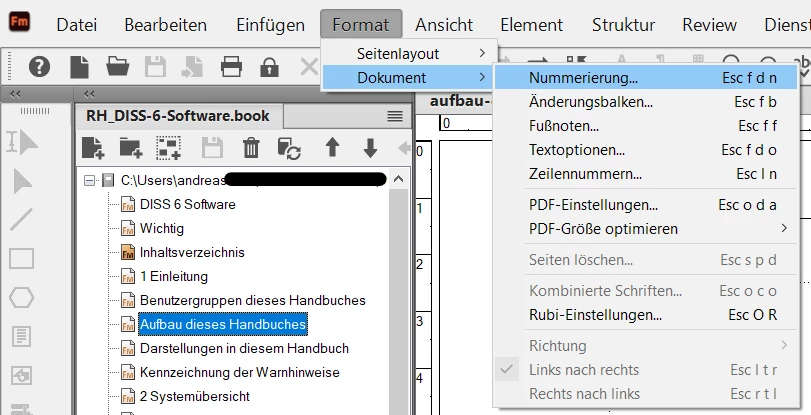

         If an opened file is selected:

         If a file is selected in the book:

         Could that help you?

        A
        andreas_5547
        Inspiring
        August 16, 2024

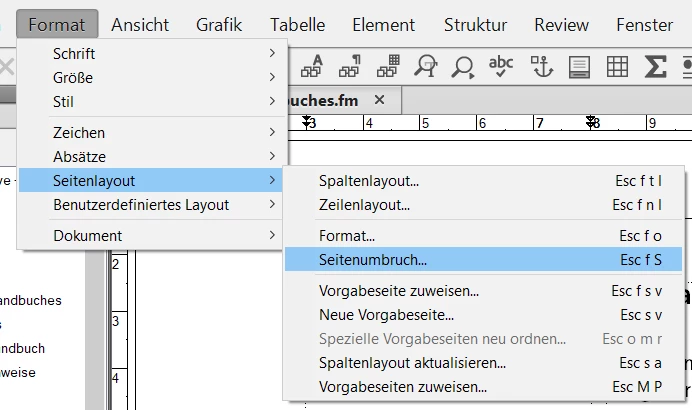

        You can use "Pagination" only if a opened file ist selected:

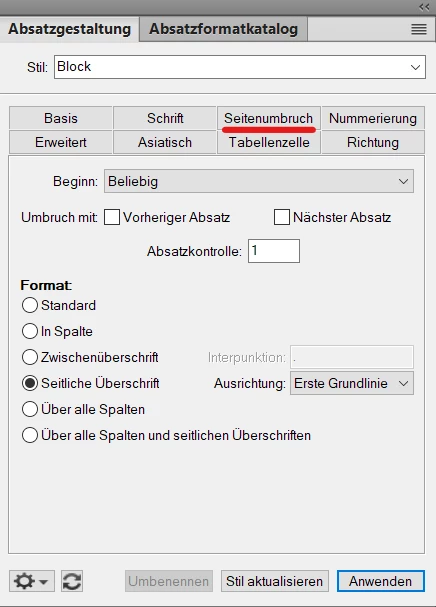

         Pagination options for paragraphs are in the Paragraph designer:



          B
          Beate5E27Author
          Participating Frequently
          August 16, 2024

          Hi Andreas,



          no, sorry, that doesn't solve it. The issue I have is with "numbering/Nummerierung", not with "Seitenumbruch".

          Its a pure numbering issue. I see that "pagination" is a tricky term in English.

          The issue remains. I have set all options that have to do with numbering from "4" to "2", but the numbering issue in the table of content remains.
