inserting a graphics in side head

  • November 27, 2022
  • 2 replies
  • 438 views

Folks,



How to insert graphics in the Side-head of the Column layout?

    This topic has been closed for replies.

    2 replies

    Barb Binder
    Community Expert
    Barb BinderCommunity Expert
    Community Expert
    November 27, 2022

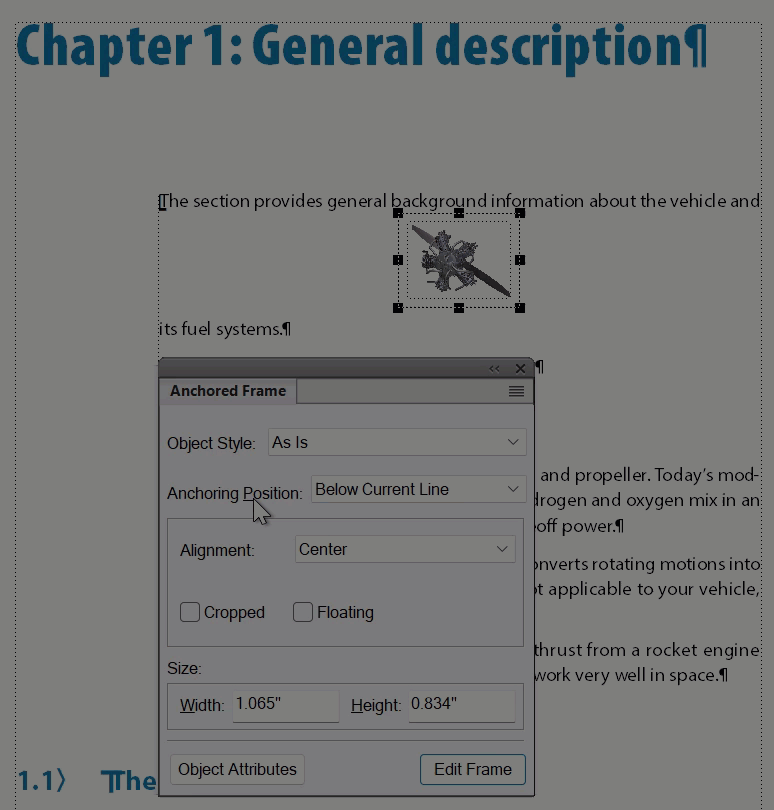

    Hi @Arvind5E6D and welcome to the community forums. How about anchoring the frame outside the column?



    ~Barb



    ~Barb at Rocky Mountain Training
      Bob_Niland
      Community Expert
      Bob_NilandCommunity Expert
      Community Expert
      November 27, 2022

      Barb, how does that flow to HTML/eBook vs. AF in SH para?
      (asking because I have no guesses)

      Barb Binder
      Community Expert
      Barb BinderCommunity Expert
      Community Expert
      November 28, 2022

      Hey Bob, I primarily output to PDF so I'm not sure. It does sound the the OP is outputting to PDF, based on their other post today.



      ~Barb

      ~Barb at Rocky Mountain Training
      W
      Community Expert
      Winfried RengCommunity Expert
      Community Expert
      November 27, 2022

      Hi,



      You can create a paragraph across all columns and sidehead area. (I do not know the exact option name.) Then insert your graphic in this paragraph with the anchoring position of the achored frame At Insertion Point. Then your graphic will be in the sidehead area. If it is too wide, then scale the graphic down. With ESC m p you can adjust the size of the anchored frame.

      Then add another regular paragraph only in the regular column without sidehead for your text.

      Or do the same with tables. Again a paragraph across all columns and sidehead. Insert a table with the width of the sidehead area. And in the table insert your graphic in an anchored frame. That's what I do.



      Best regards



      Winfried

      Bob_Niland
      Community Expert
      Bob_NilandCommunity Expert
      Community Expert
      November 27, 2022

      If all that's needed is the graphic, the para (perhaps named Body.SH) that anchors it can be otherwise empty, and have a Pagination property of
      ⦿ Side Head

      The AF itself probably wants to be:
      Anchoring Position: Run into Paragraph
      Alignment: Left
      Gap: [0.0 pt]

      This likely provides the top odds of it flowing as intended into various output formats.



      Using the ⦿ Across all Columns and Side Heads property also works, and there ae multiple ways to keep the in-column text apparently in-column (idents, tabs, tables, AF-shoving, borderless Table), but output flow to various formats might be iffy.
